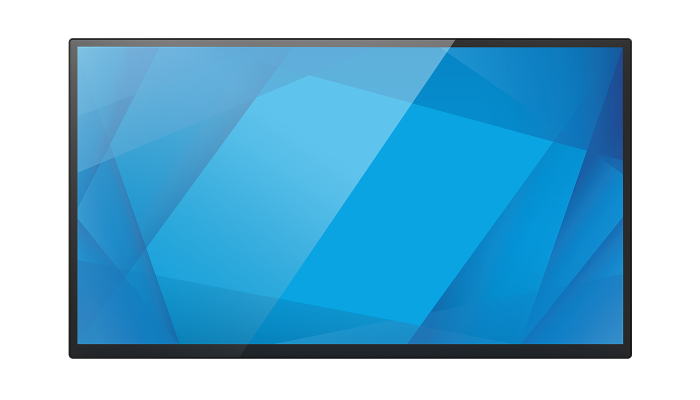

2210L 22" Monitor

2210L 22-inch Monitor

The 2210L 22-inch Monitor delivers the superior quality Elo is known for in a non-touch
display. Designed for durability, the Elo 22-inch monitor features anti-glare edge-to-edge
glass with IK06 impact resistance, enhanced ESD performance and a ventless back and
cable cover design to help reduce foreign contaminant ingress. From digital signage
and kitchen display systems to dashboards, medical carts and production line monitors,
the 2210L monitor provides a eliable, cost-effective display in a thin, compact form factor.

Order now

Durable and versatile
22-inch
monitor built
for commercial-use.

The 10L-Series 22-inch monitor is designed to meet the demands of
commercial environments, offering durability, ease of maintenance, and
visibility in bright lit environments.

Glass Display

The 22-inch monitor features easy-to-clean,
anti-glare edge-to-edge glass offering optimal
visibility in brightly lit environments.

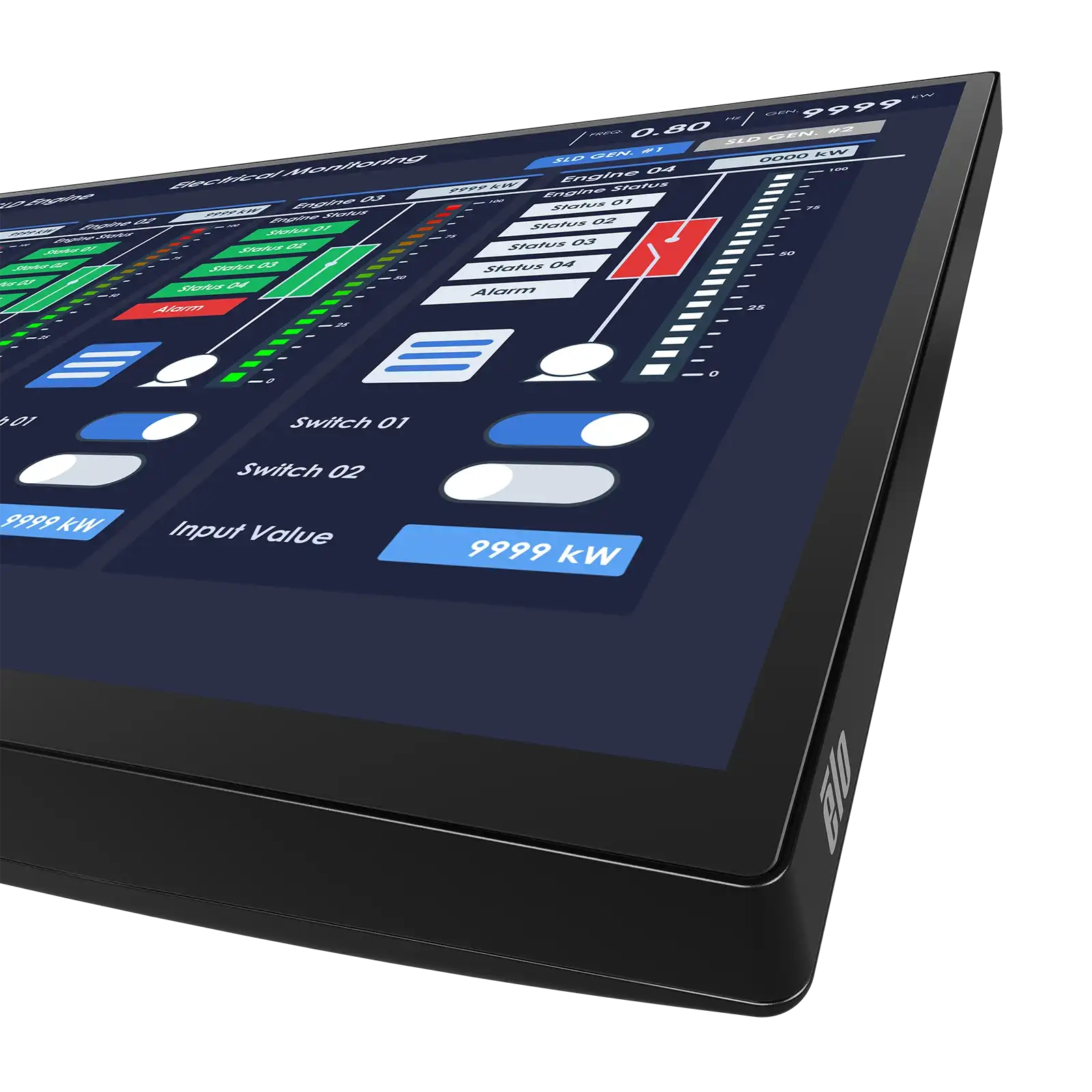

IK06 Durability

Engineered with chemically strengthened,
impact-resistant glass, the 10L-Series is
designed to help resist vibrations and
incidental contact.

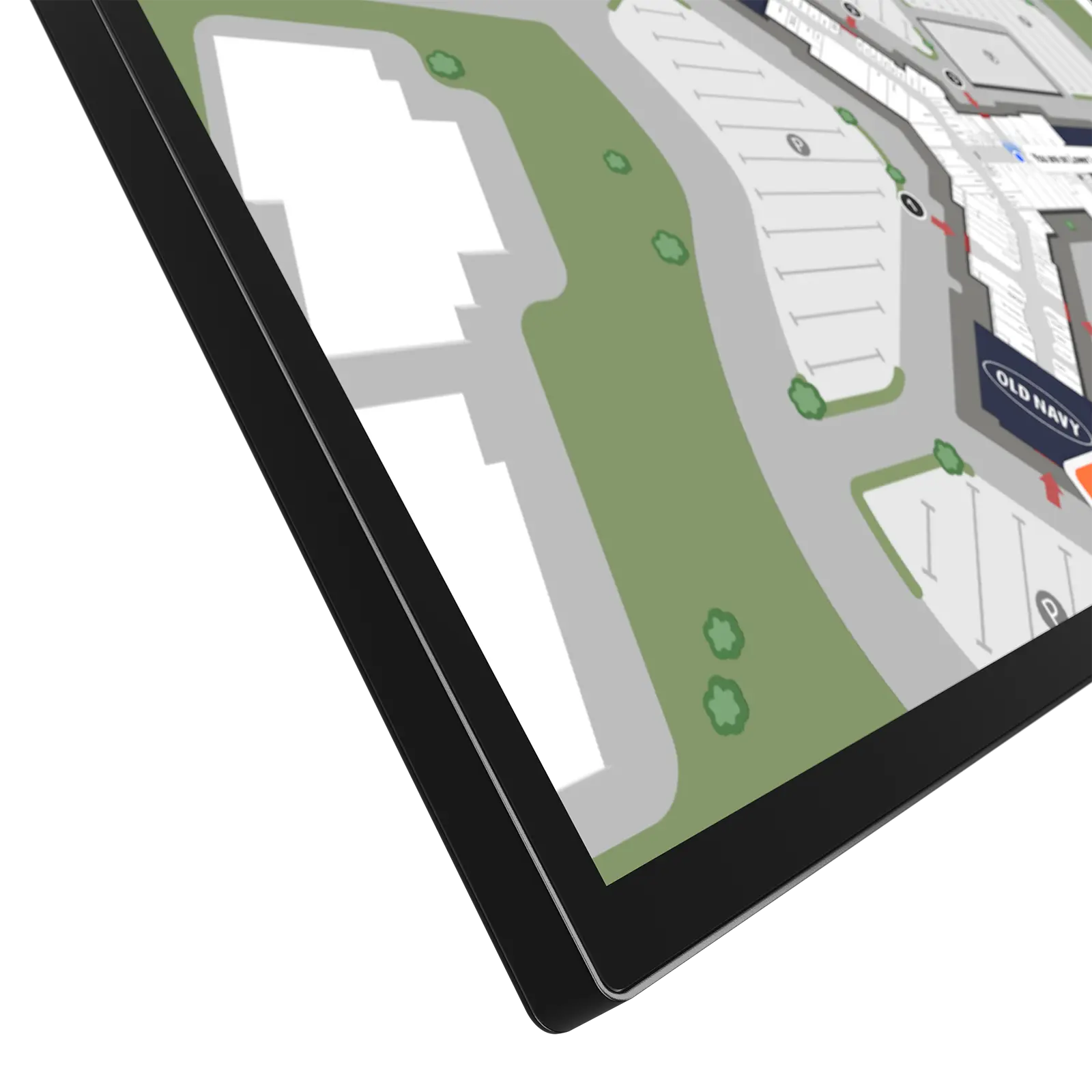

Long Life Cycle

The 10L-Series is engineered for maximum longevity-
designed and tested to deliver reliable performance
while maintaining consistent availability over time. As
a result, Elo customers experience fewer disruptions,
lower replacement costs, and greater ROI.

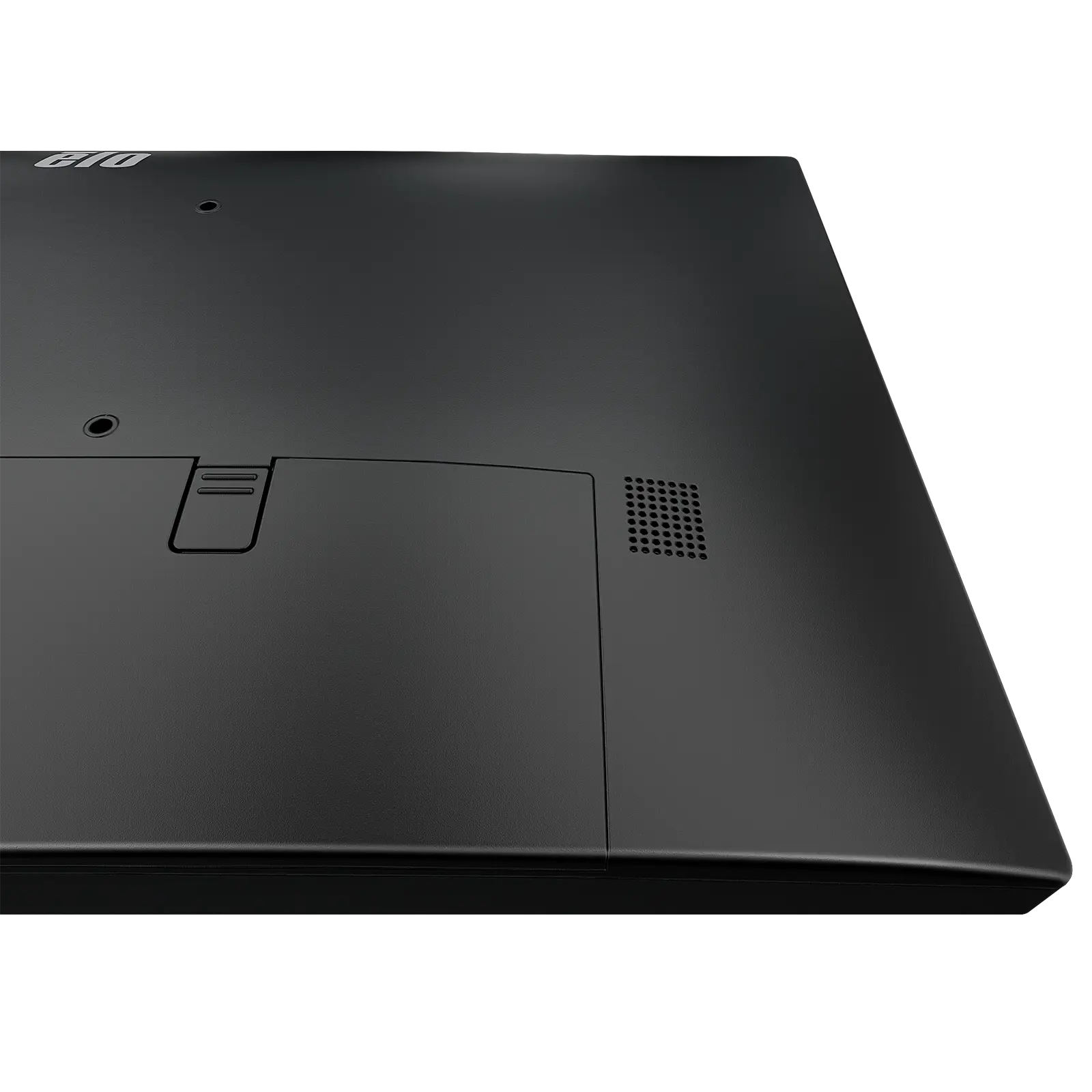

Ventless Design

The 22-inch monitor offers a ventless-back and
cable cover design to help prevent foreign
contaminant ingress, supporting longer-term
reliability in demanding environments.

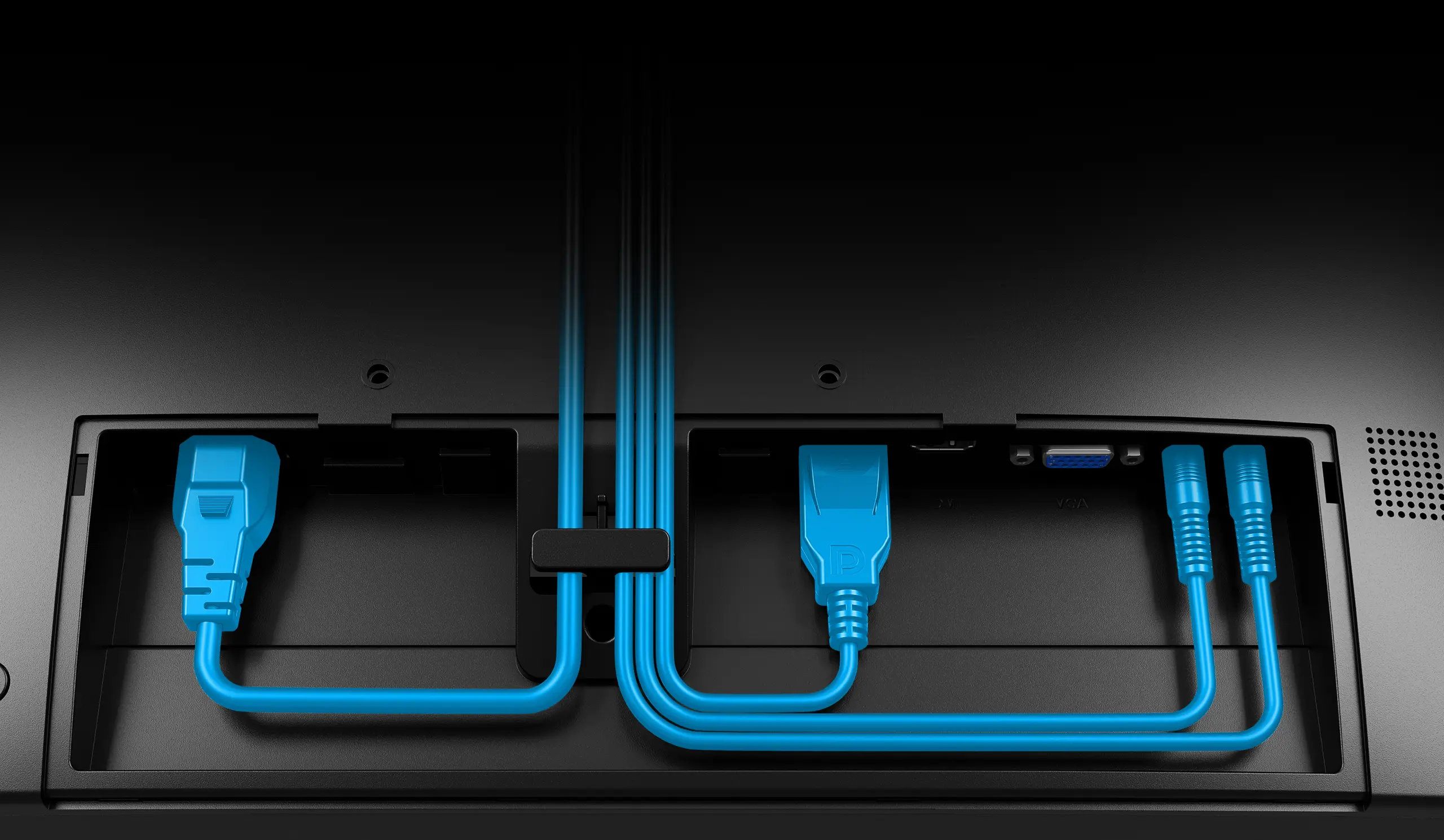

Secure your
cables into place.

With a port cover that can be locked into place, cables are
less prone to becoming disconnected, minimizing disruptions
to the device.

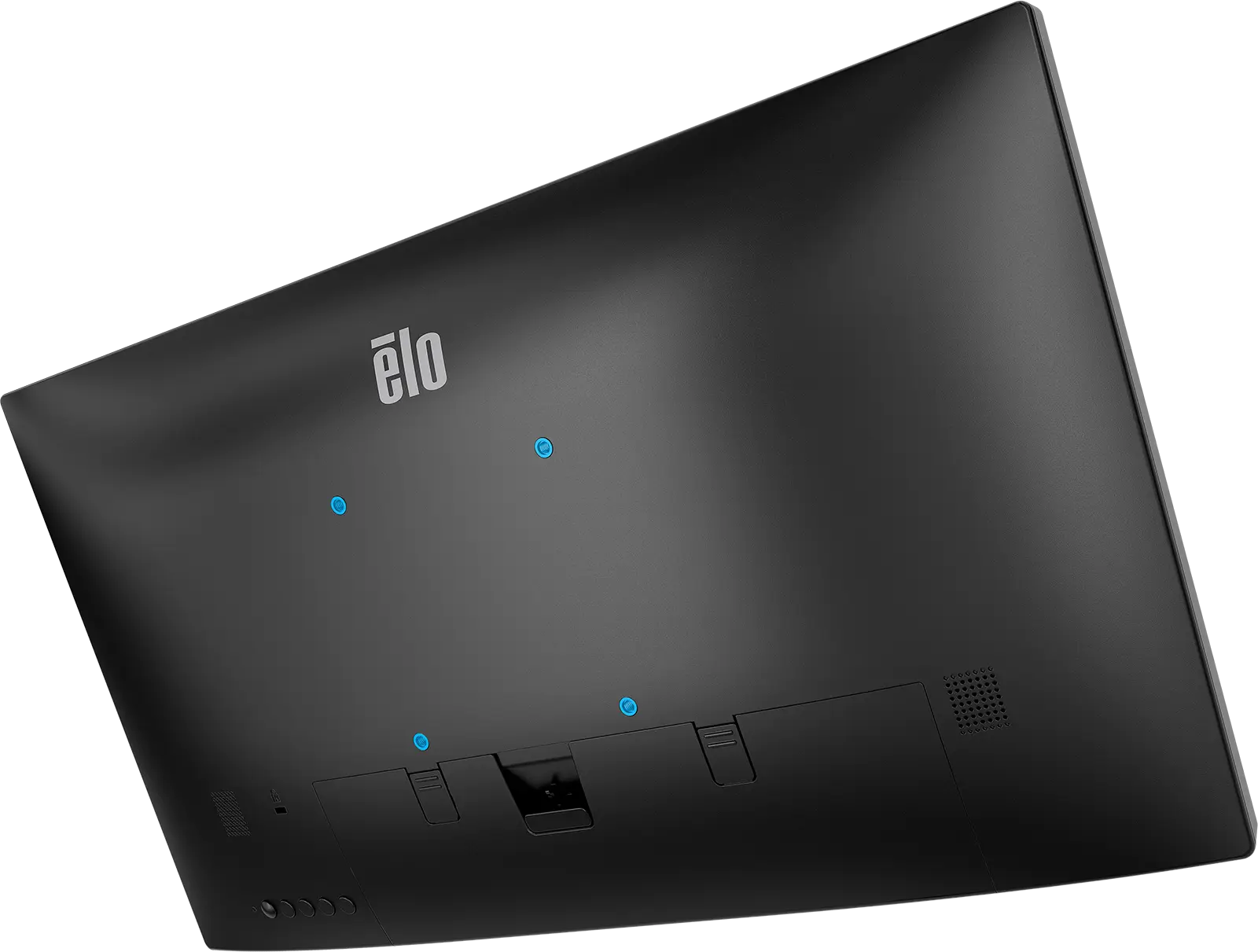

Integrated VESA
for ease of mounting.

The 22-inch monitor can be mounted in landscape
and portrait, providing optimal flexibility for mounting
to a stand, wall, pole or any third party compatible
VESA mount.

Get peace of mind
with EloCare.^SM

From advance unit replacement to extended
warranties, EloCare delivers service and support from
the people who know your Elo products best.

Advance Unit Replacement
Extended Warranty
Professional Services

Learn more

Quality that
is built to last.

We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.

Learn more

Specifications

Technical

Part Number(s)

Americas - E448150
Europe - E448346
Worldwide - E746145

Enclosure Color

Black

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

18.84" x 10.25" / 478.66 mm x 260.28 mm

Resolution

1920 x 1080

Other Supported Resolutions

640x480 60Hz,
640x400 70Hz
720x400 70Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x800 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 50Hz, 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

250 nits

Response Time-total (typical)

20 msec

Contrast Ratio

3000:1

Surface Treatment

Anti-glare

On Screen Display

The unit has on-screen display (OSD) buttons on the back

Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power

Settings: Brightness, Contrast, Eco Mode, Clock, Phase, H. Position, V. Position, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys)

Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese

Audio

Audio in
Audio out

Speakers

Two x 2W internal speakers

Video

HDMI V1.4 Type A receptacle for HDMI input
Analog VGA on Female DB-15 (DE-15) connector
DisplayPort V1.2 - Supports later versions of Display Port video input

Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

Power

AC power input connector (IEC 60320 C6)
AC input voltage range: 100-240VAC, 50/60Hz

Power Consumption (Typical)

ON (Default - 90% Brightness): 15W
ON (Typical - 100% Brightness): 27W
SLEEP (monitor + adapter): 0.5W
OFF (monitor + adapter): 0.3W

Monitor Dimensions (without Stand)

19.6" X 11.20" X 1.76" / 497.81 mm X 284.55 mm X 44.8 mm

Shipping Box Dimensions

22.36" x 14.57" x 6.1" / 568 mm x 370 mm x 155 mm

Weight (Unpackaged)

5.89 lbs / 2.67 kg

Weight (Packaged)

11.02 lbs / 5 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95%

MTBF

50,000 hours demonstrated

Mounting Options

VESA 4-hole 100mm mounting interface on rear of unit

Warranty

3-year

Regulatory approvals and declarations

Australia RCM
Canada cUL, IC
China CCC
Europe CE, TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NoM
Taiwán BSMI
United States UL, FCC
India BIS
International CB
RoHS, China RoHS, WEEE

Compliance

GLI 10 kV air / 8 kV contact ESD compliant
UL62368 ball-drop compliant
IK06 impact compliant

What's in the Box

Touchmonitor
HDMI cable
Quick Install Guide
EEI Label
Japan Class-B TM info sheet
4 x VESA screws
NA Power Cord (E448150 only)
EMEA Power Cord (E448346 only)

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
