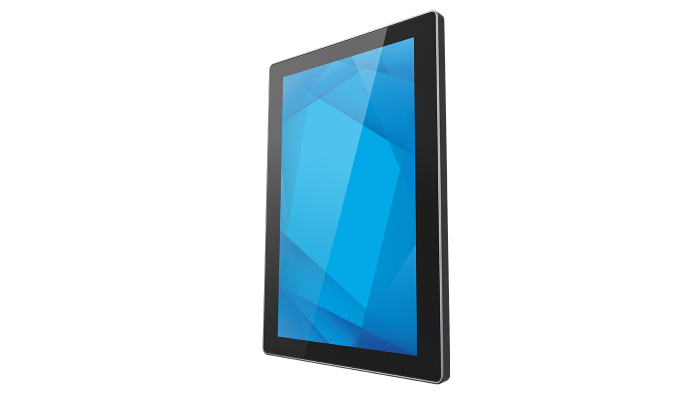

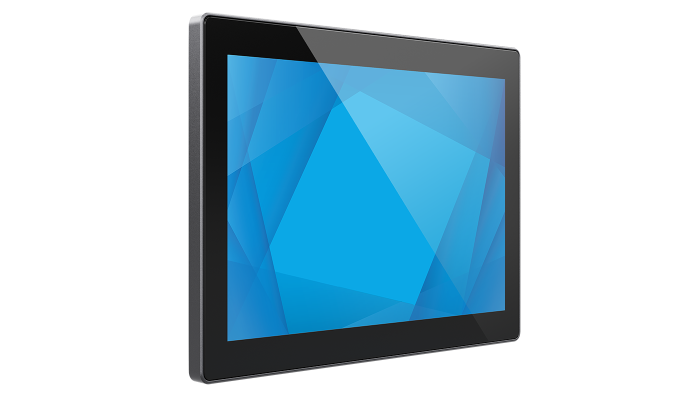

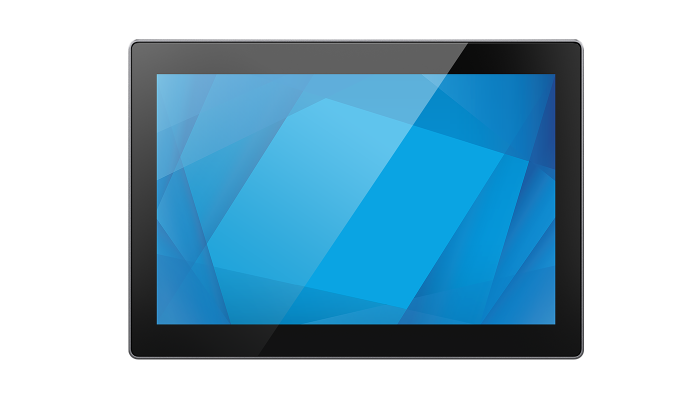

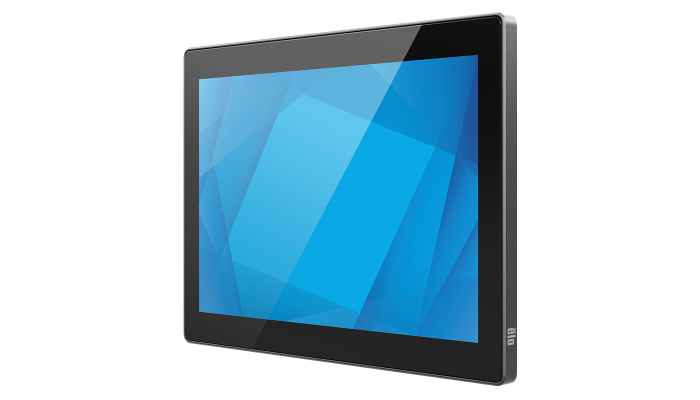

0704LS 7" Touchscreen Monitor
Razor thin design.
Brilliant touchscreen.

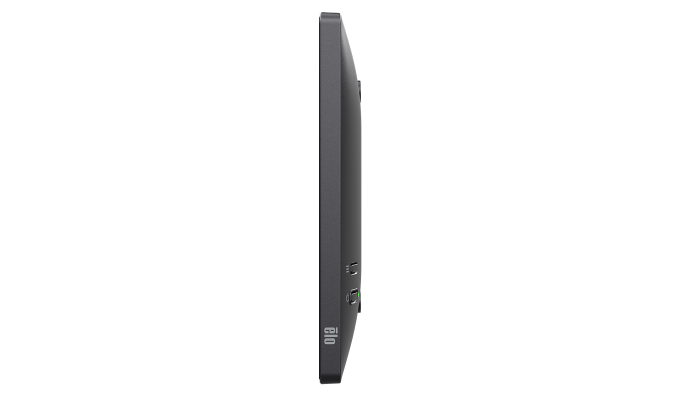

Built to be one of the thinnest commercial-grade 7-inch
touchscreen monitors, the 04LS-Series delivers a stunning
design with thin borders, enhanced durability and state-of-the-
art optical bonding - all with brilliant display clarity.
Available in a range of
sizes from 7- to 15-inch.
Streamline setup with USB‑C to
enable power, video and touch
integration all in a single cable.
Secure your cables into place.
With a port cover that can be locked into place, cables are less prone
to becoming disconnected, minimizing disruptions to the device.
A clean slate for
touch experiences.
The perfect pairing for
your POS terminal.
The 04LS slate monitors offers the perfect compact
touch display with the sleekness you desire at the
point of sale.
Get peace of mind
with EloCare.SM
From advance unit replacement to extended warranties,
EloCare delivers service and support from the people
who know your Elo products best.
Specifications
-
Technical
Part Number(s)
E967730
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
7'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:10
Active Area
5.90" x 3.69" / 149.76 mm x 93.60 mm
Resolution
1280 x 800
Other Supported Resolutions
1280 x 800 60Hz
1280 x 800 60Hz RB
1280 x 720 60hz
1024 x 768 60Hz
800 x 600 60Hz
800 x 500 60Hz
640 x 480 60HzViewing Angle
Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total
Number of Colors
16.7 million
Brightness (typical)
Panel: 400 nits; TouchPro PCAP: 360 nits
Response Time-total (typical)
35 msec
Contrast Ratio
800:1
Touch Interfaces
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
Controls: Menu, Power
Settings: Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Low Blue Light, OSD Timeout, OSD Language, Touch on Sleep mode, Power LED, Touch Through, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, PowerI/O Ports
USB Type-C connector
Video
USB Type-C connector
Input Video Horizontal Sync frequency range: 30 – 60KHz
Input Video Vertical Sync (frame rate) frequency range: 60HzPower
Power Delivery compatible via USB Type-C connector
Input range: (5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A)Power Consumption (Typical)
ON (Default - 100% Brightness): 4.8W
SLEEP: 0.8 W
OFF: 0.15 WMonitor Dimensions (without Stand)
6.81" x 4.78" x 0.57" / 173.06 mm x 121.56 mm x 14.6 mm
Shipping Box Dimensions
9.13" x 6.61" x 2.80" / 232 mm x 168 mm x 71mm
Weight (Unpackaged)
0.71 lbs / 0.32 kg
Weight (Packaged)
1.48 lbs / 0.67 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options

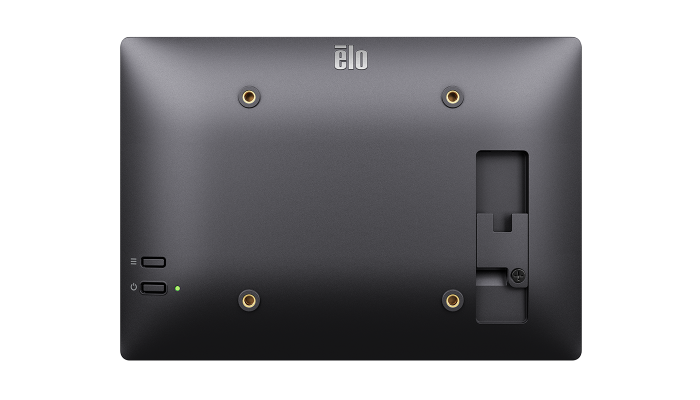

VESA via 4-hole 75mm mounting adapter on rear of unit.
Other Features
TUV Rhineland (Low Blue Light)
TUV Rhineland (Flicker Free)
Power collection function via DDCCIWarranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Canada CUL, IC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
RoHS, China RoHS, WEEE, REACH
United Kingdom UKCAImpact Protection
IK07
What's in the Box
Touchmonitor
Quick Install Guide
USB Type-C cableOptional Peripherals
PCAP Stylus Pen - Elo P/N: E066148
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing display Pole Mount Kit – Elo P/N: E038989
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
USB-C to USB-C Cable Kit – Elo P/N: E129019
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
