15-inch I-Series 5 Slate with Android
How to buy

15-inch I-Series 5 Slate
Touchcomputer

Elo's I-Series 5 Slate delivers a powerful 15.6-inch Full HD interactive system, complete with Android 14 OS, Qualcomm processor and an I/O hub. Built to be one of the thinnest commercial-grade fixed tablet form factors, the I-Series 5 Slate delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity.

Order now

Brilliant touchscreen
for any experience.

PCAP Display

10-touch PCAP display

Android 14

Android 14 with GMS

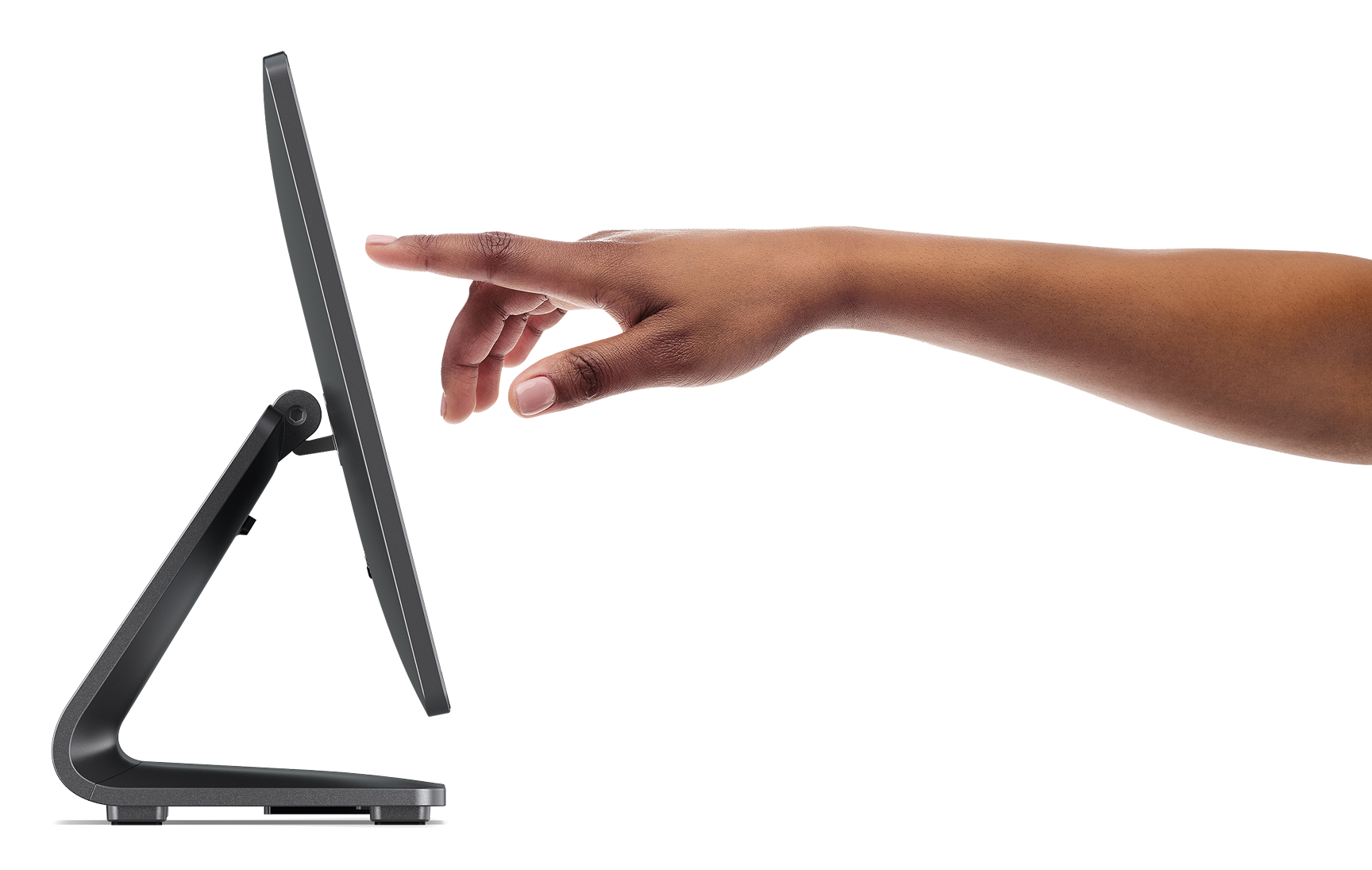

Thin Design

15.1 mm thin

Webcam

8MP webcam

Z10 stand sold separately.

Interactive signage has
never looked so good.

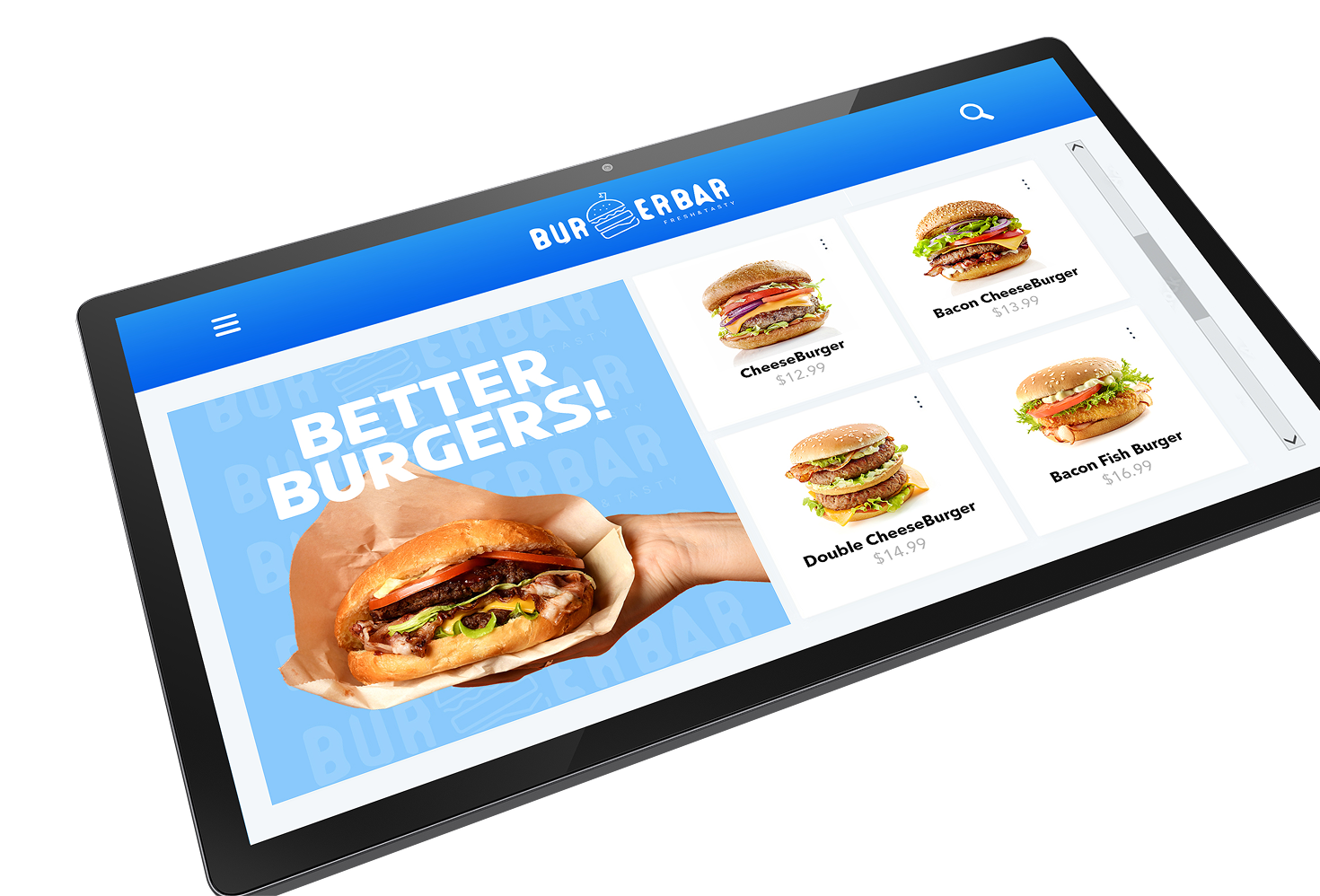

Create your
POS system.

Transform the I-Series 5 Slate it into a powerful, industrial-design POS system that scales with your business.

Connectivity for

all your accessories.

The I‑Series 5 Slate offers an I/O hub that extends connectivity from the display to your accessories.

Image of the Elo EssentialEdge support interfaceImage of the Elo EssentialEdge support interface

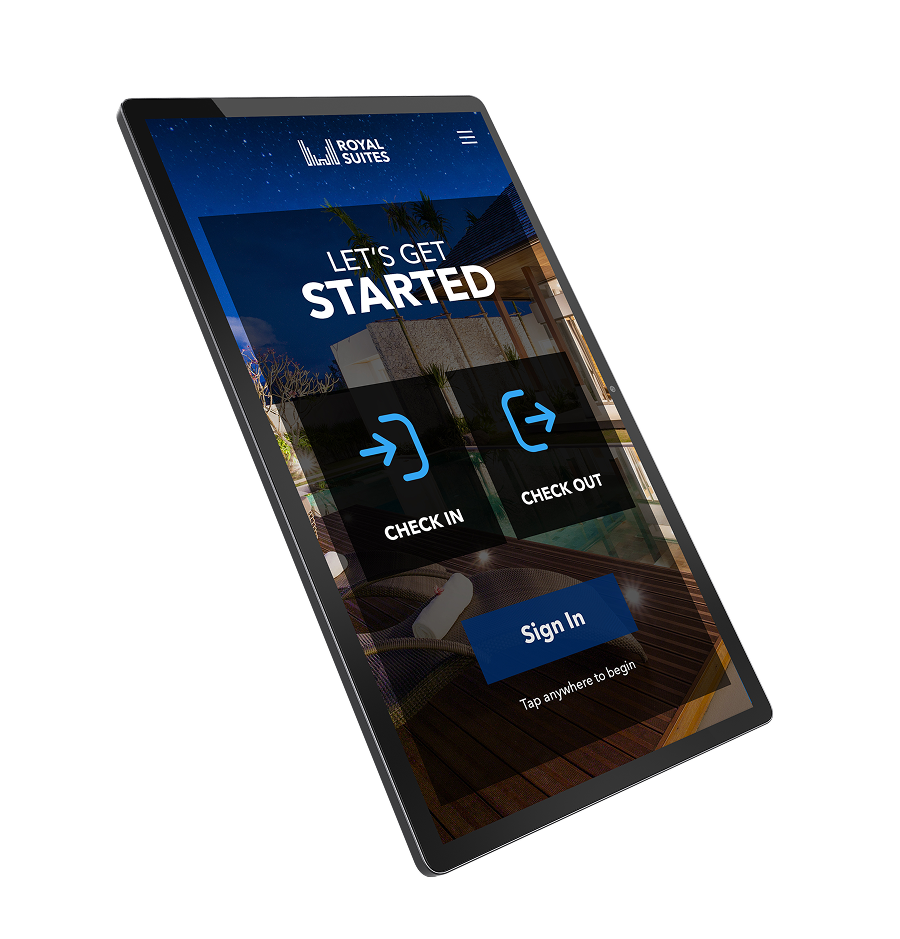

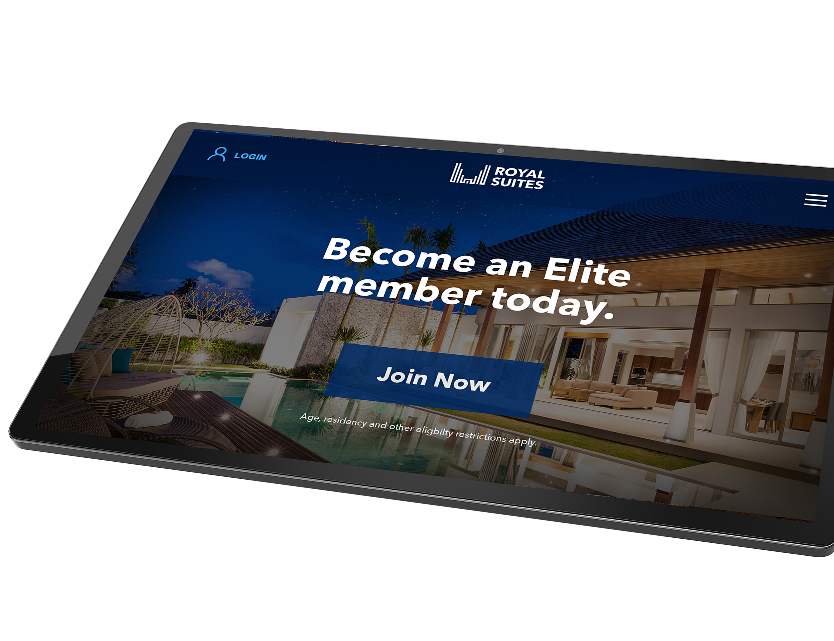

Get enterprise support
with Elo EssentialEdge.™

With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

OS 360 – Take advantage of monthly security updates to keep your devices secure.

Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Explore Elo EssentialEdge

Commercial-grade
performance.

The Backpack is backed by the powerful Qualcomm 6490 octa-core processor to deliver the performance businesses need.

Photo of Powerful Qualcomm 6490 octa-core processor

Expand possibilities
with Applied AI.

The Qualcomm 6490 chipset offers a fused AI accelerator, enabling astonishing performance at low power. These features and more produce a combined AI performance of up to 12 TOPS.

Manage your devices
easily with EloView.®

EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

  • Remotely deploy content and manage your devices securely.
  • Provision your devices in seconds with a seamless out-of-the-box experience.
  • Leverage Elo Home to create a customized interface on your Elo device.
Explore EloView
Image of the EloView device management interface

Google Mobile
Services Ready.

With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features. Not only does this make management easier, but it also ensures your Elo devices meet the high standards required for Google CTS verification, giving you peace of mind.

Get peace of mind
with EloCare.

From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.

  • Advance Unit Replacement
  • Extended Warranty
  • Professional Services
  • OS 360
Learn more

Quality that
is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Learn more

Specifications

  • Technical

    Part Number(s)

    E540697

    Enclosure Color

    Dark Gray Metallic

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Qualcomm Snapdragon QCS6490

    Memory (RAM)

    8GB

    Storage

    64GB

    OS

    Android 14 with Google Play Services (AOSP capable)
    Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344 mm x 194 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    8-bit (16.7 million)

    Brightness (typical)

    LCD Panel: 350 nits
    TouchPro PCAP: 280 nits

    Response Time-total (typical)

    20 ms

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    I/O Ports

    Display Head Interface:
    USB-C Connector
    Supports USB 2.0/3.0, DP output
    (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)

    I/O Hub:
    DC Input
    4 x USB-A 3.0 (900mA)
    RJ45 Ethernet LAN (Gigabit)

    Webcam

    8MP
    Max Resolution: 3200x2400 30fps
    Auto Focus

    Wireless

    802.11a/b/g/n/ac/ax + Bluetooth 5.2

    Audio Ports

    2x built-in Digital Microphones

    Speakers

    2x 1W

    Power Supply

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    On: 8.5W
    Off: 0.4W
    Sleep: 3W

    Dimensions

    With VESA: 14.6" x 8.7" x 0.6" / 370.3 mm x 221.3 mm x 15.1 mm

    Shipping Box Dimensions

    17.4" x 12.2" x 6.1" / 445 mm x 308 mm x 160 mm

    Weight (Unpackaged)

    3.44 lbs / 1.56 kg

    Weight (Packaged)

    7.74 lbs / 3.51 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Regulatory approvals and declarations

    UL/cUL (US)
    FCC (US)
    IC (Canada)
    CE (Europe)
    CB (International)
    VCCI, MIC (Japan)
    RCM (Australia)

    Supported Countries

    Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 75 mm / Z-Hinge

    Warranty

    2-year

    Extended Service Options

    3 year OS 360 - Elo P/N: E897877
    4 year OS 360 - Elo P/N: E898079
    5 year OS 360 - Elo P/N: E898282
    3 year Warranty Coverage – Elo P/N: E819394
    4 year Warranty Coverage – Elo P/N: E819598
    5 year Warranty Coverage – Elo P/N: E819795
    3 year Warranty Coverage + ADP – Elo P/N: E130329
    4 year Warranty Coverage + ADP – Elo P/N: E130530
    5 year Warranty Coverage + ADP – Elo P/N: E130719
    2 year Warranty Coverage + AUR – Elo P/N: E819985
    3 year Warranty Coverage + AUR – Elo P/N: E820186
    4 year Warranty Coverage + AUR – Elo P/N: E820388
    5 year Warranty Coverage + AUR – Elo P/N: E820582
    2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
    3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
    4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
    5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

    OS Support

    Bi-monthly Android security updates available with Elo OS 360 package.

    Sealability

    Touchscreen optically bonded to LCD

    What's in the Box

    I-Series 5 Slate
    IO Hub
    North American Power Cable
    European Power Cable
    1x Power Brick 65W (E153026)
    Quick Install Guide
    4 x M4x6 mm Panhead screws in a plastic bag

    Optional Peripherals

    1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))

    Stands, Mounts & Kits

    65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
    Z10 POS Stand (75mm VESA) - Elo P/N: E767159
