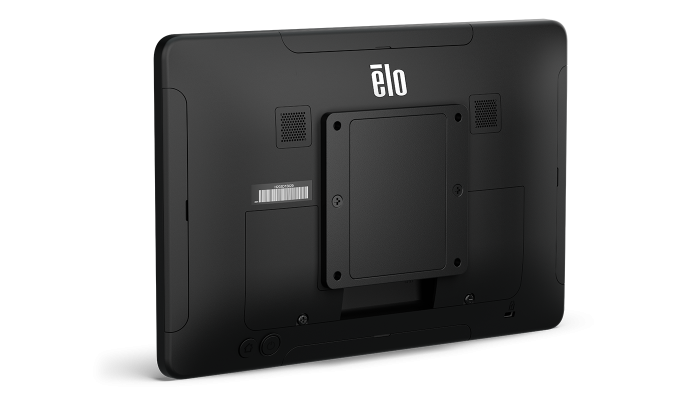

Power-over-Ethernet (POE) Module (For I-Series 4 & 5)
Overview
The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
Specifications
-
Technical
Part Number(s)
E669163
Enclosure Color
Black
POE Standard Protocols
IEEE802.3, 10BASE T/IEEE802.3ab, 1000BASE-T/IEEE802.3u,100BASE-TX IEEE802.3at, IEEE802.3bt, Power over Ethernet
Transmission Media
Cat5 or higher per TIA/EIA-568
Efficiency
IEEE802.3at: Isolated power supply efficiency >85%
IEEE802.3bt: Isolated power supply efficiency >79%Customizable Settings
Panel Brightness
Wi-Fi/ Bluetooth
Audio
USB Port1 (type A)
USB Port2 (type C)
MicroUSB3
MicroUSB4
MicroUSB5
MicroUSB6
GPIO
External DisplayDimensions
Without 21.5" spacer: 3.46" x 3.46" x 0.74" / 88 mm x 88 mm x 18.8 mm
With 21.5" spacer: 4.53" x 4.53" x 0.74" / 115 mm x 115 mm x 18.8 mmShipping Box Dimensions
Single box: 7.09" x 5.71" x 1.65" / 180 mm x 145 mm x 42 mm
Carton: 14.76" x 12.2" x 16.73" / 375 mm x 310 mm x 425 mmMounting Options
VESA 75mm and 100mm
Weight (Unpackaged)
Without 21.5" spacer: 0.218 lbs / 0.099 kg
With 21.5" spacer: 0.262 lbs / 0.119 kgWeight (Packaged)
Single box: 0.511 lbs / 0.232 kg
Carton: 18.396 lbs / 8.352 kgTemperature
Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 70°C (-4°F to 158°F)
Protection: OTP, OCP protectionHumidity
Operating: 20% to 80%
Storage: 10% to 95%Warranty
2-year
Regulatory approvals and declarations
FCC (US)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)What's in the Box
POE Device
Quick Install Guide
2x M3x8mm flat head screws (in a ziplock bag, labeled)
4x M4x12mm flat head screws (in a ziplock bag, labeled)
4x M4x12mm pan head screws (in a ziplock bag, labeled)
1x POE Spacer
