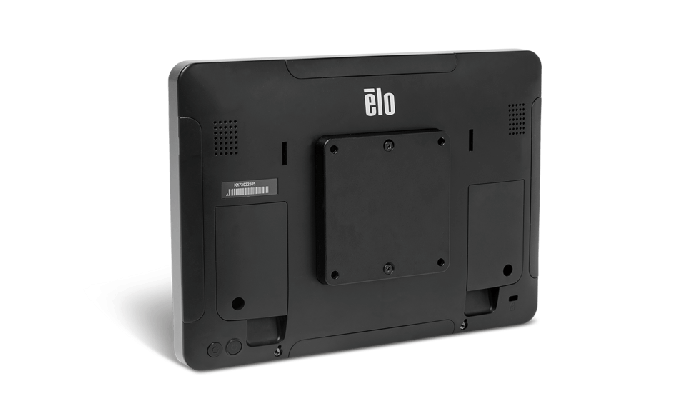

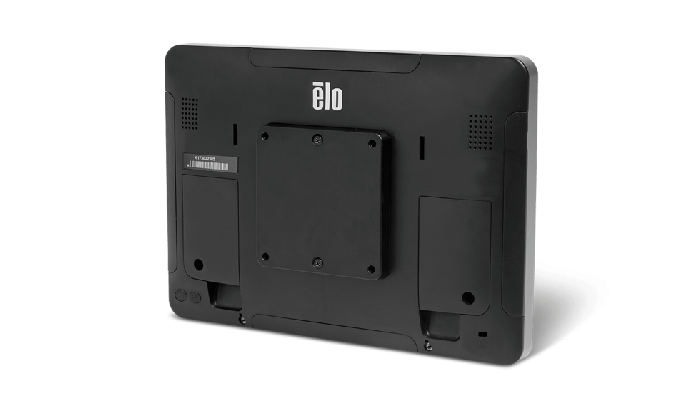

Power-over-Ethernet (POE) Module (For I-Series 2.0/3.0 for Android)
Overview

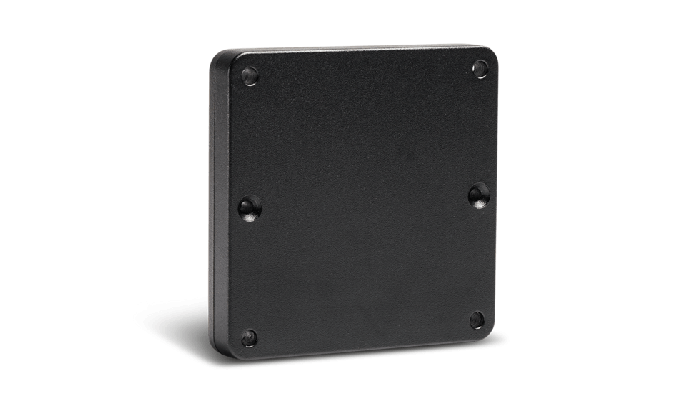

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the I-Series 2.0/3.0 for Android. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
Available Features — When using the POE Module with the I-Series 2.0/3.0 for Android
| 10 Value |
15 Value |
10 Standard |
15 Standard |
22 Standard |
|
| Micro SD Card | Available | Available | Available | Available | Not Available |
| WiFi | Not Available | Not Available | Not Available | Not Available | Not Available |
| Bluetooth | Available | Available | Available | Available | Available |
| Camera | Not Available | Not Available | Available | Available | Not Available |
| Touch | Available | Available | Available | Available | Available |
| Audio | Available | Available | Available | Available | 50% (user selectable)* |
| Ethernet | Available | Available | Available | Available | Available |
| USB Peripheral Ports | Not Available | Not Available | 1 port (user selectable)** | 1 port (user selectable)** | 1 port (user selectable)** |
| USB 3.0 Type A | Available | Available | Not Available | Not Available | Not Available |
| HDMI Out | Not Available | Not Available | Not Available | Not Available | Not Available |
| GPIO | Available | Available | Available*** | Available*** | Available*** |
* Audio – if enabled, will be limited to 50% volume
** USB Peripheral Ports – 1 side peripheral port can be enabled
*** The 5V power pin is disabled when using PoE
Note: when using PoE with the 21.5 i-series 2.0/3.0, brightness will be limited to 70%
