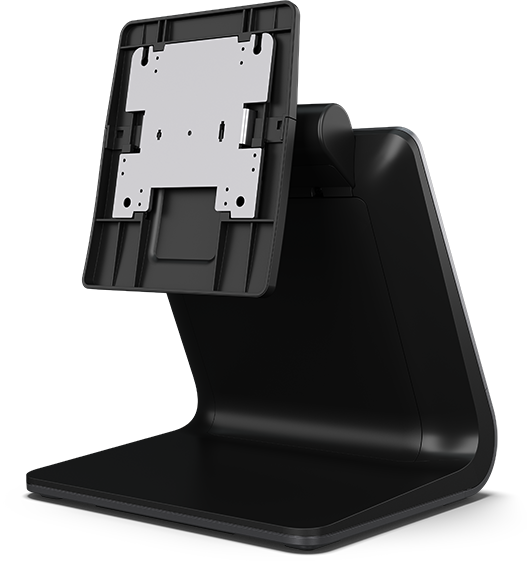

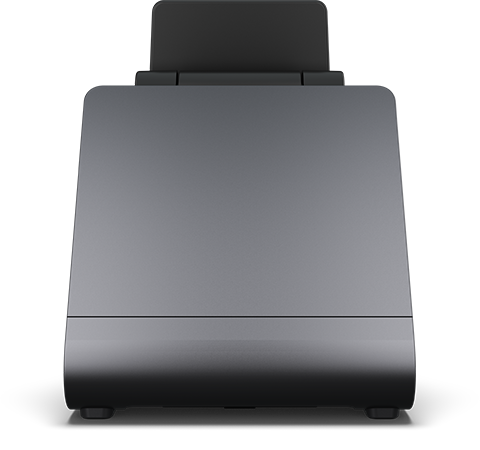

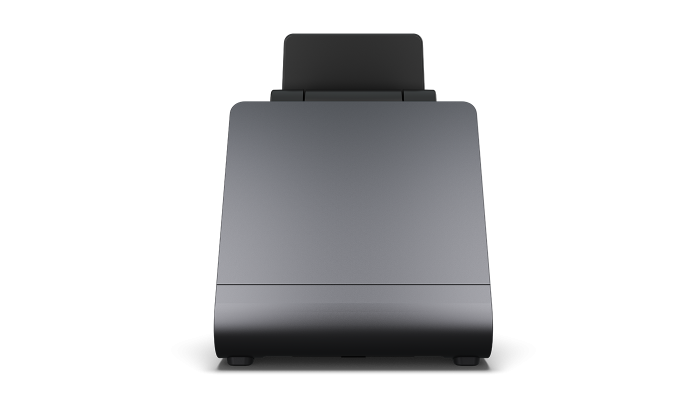

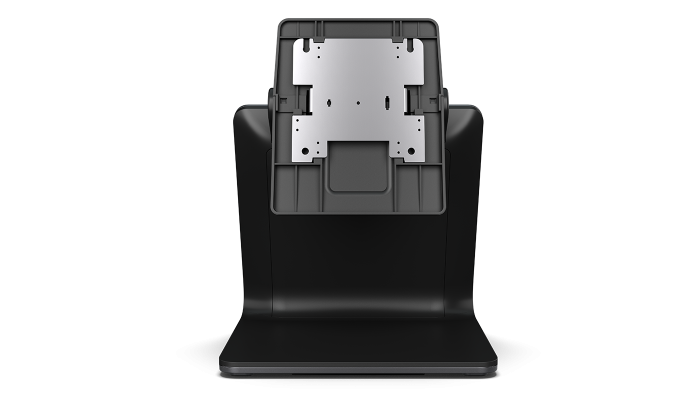

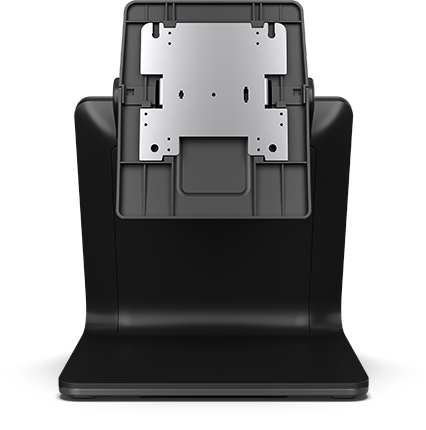

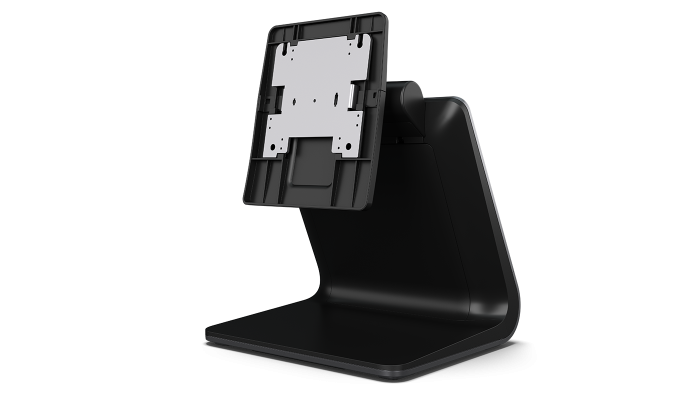

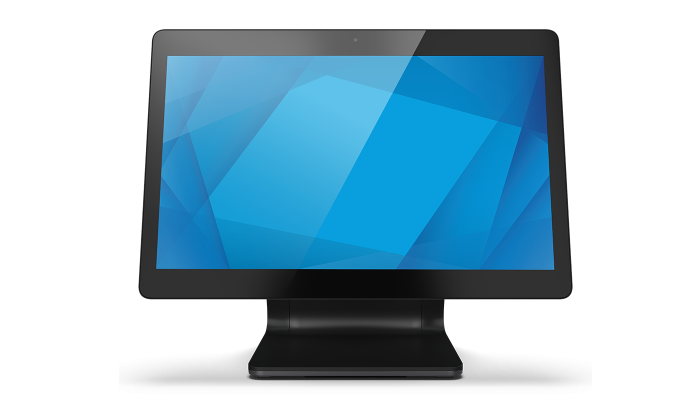

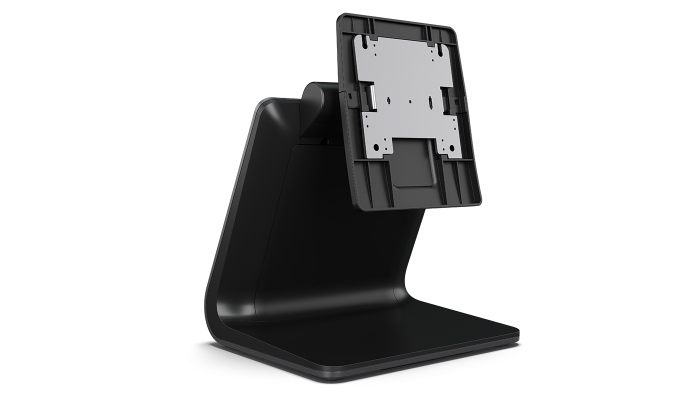

Z20 POS Stand
Complete with an integrated connectivity hub, concealed cable routing and the flexibility to either flip the main display from full service to self-service or add a fixed customer facing display on the back, the Z20 POS Stand delivers elegance to the point-of-sale.
Choose the perfect touchscreen display.

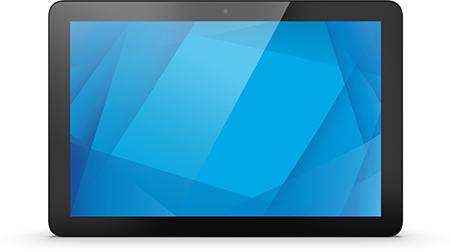

10" I-Series 4 & 5

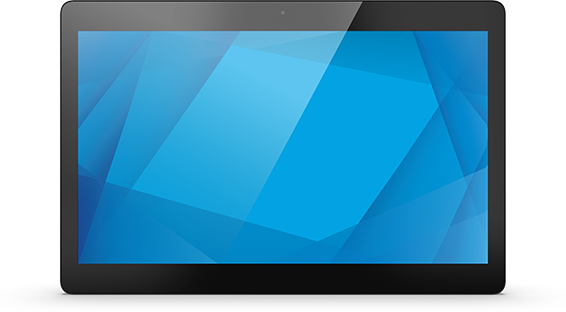

15" I-Series 4 & 5

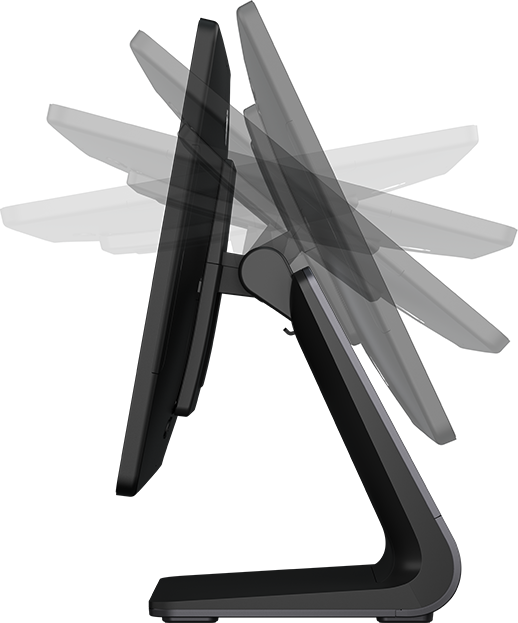

Flip the display.
Easily flip your employee facing display to provide customers with a self-service kiosk.
Add optional CFD, 10‑, 13‑ or 15‑inch.
*CFD supported on 15" model only
Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.
Create your perfect POS system.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
| I/O | EloPOS Z10 | EloPOS Z20 | EloPOS Z30 |
|---|---|---|---|
| Ethernet |  |
|
|
| 4x USB-A 3.0 | |
|
|
| Cash Drawer Port | |
|
|
| 24V powered USB | |
||
| USB-C | |
||
| Edge Connect Ports** | |
| Main Display | ||||||
|---|---|---|---|---|---|---|
| I-Series 4 & 5 | |
|||||
| I-Series Slate | |
|
||||
| Secondary Display | |||
|---|---|---|---|
| Integrated | |
||
| Mount for CFD | |
|
|
*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only
EloPOS Z10
Compatible with the 15‑inch I‑Series Slate
I/O
-
Ethernet
-
4x USB-A 3.0
Secondary Display
-
Optional 7-inch CFD.
EloPOS Z20
Compatible with the 10‑ & 15‑inch I‑Series 4 & 5
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
USB‑C
-
Edge Connect Ports**
Secondary Display
-
Optional 10‑, 13‑ or 15‑inch CFD.***
EloPOS Z30
Compatible with the 15‑inch I‑Series Slate.
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
24V powered USB
-
USB‑C (non-CFD model)
Secondary Display
-
Choose integrated CFD; or no CFD in stand.
*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only
Specifications
-
Technical
Part Number(s)
10" Z20 POS Stand: E554932
15" Z20 POS Stand: E767356Enclosure Color
Dark Gray Metallic/Black
Compatibility
Main Display
10" or 15" I-Series 4 and 5
Customer-facing Display*
1002L – Elo P/N: E155834 and E324341
1302L – Elo P/N: E683595 and E683787
1502L – Elo P/N: E125496
*15" model onlyI/O Ports
Z20 POS Stand for 10" I-Series:
1x DC-Input, 2x USB-A 3.0 (900mA)
1x RJ12 (Cash drawer)* 12/24V
1x RJ45 Ethernet LAN (Gigabit)
Z20 POS Stand for 15" I-Series:
1x DC-Input, 4x USB-A 3.0 (900mA)
1x RJ12 (Cash drawer)* 12/24V
1x RJ45 Ethernet LAN (Gigabit)
1x USB-C output - CFD
(DisplayPort, Touch & Power Delivery)*
*User will need to select the mode
Ethernet upload and download speeds may decrease to ~250Mbps when using the CFD
* USB speeds may be reduced to
2.0 speeds when DisplayPort video is being output.Pre-Wired Cables
19VDC cable to I-Series
USB-C cable to connect to I-SeriesPower
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzMounting Options
VESA 75 mm
Weight (Unpackaged)
Z20 POS Stand for 10" I-Series: 6.6 lbs / 3.0 kg
Z20 POS Stand for 15" I-Series: 8.1 lbs / 3.7 kgWeight (Packaged)
Z20 POS Stand for 10" I-Series: 9.4 lbs / 4.3 kg
Z20 POS Stand for 15" I-Series: 11.4 lbs / 5.2 kgDimensions
Z20 POS Stand for 10" I-Series: 6.53" x 7.79" x 6.85" / 166 mm x 198 mm x 174 mm
Z20 POS Stand for 15" I-Series: 7.6" x 10.0" x 6.7" / 194 mm x 255 mm x 169 mmShipping Box Dimensions
12.36" x 11.93" x 12.4" / 314 mm x 303 mm x 315 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
Hinge Life Rating
5000 flips
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547Regulatory approvals and declarations
FCC (US)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)What's in the Box
10" Z20 POS Stand
Z20 POS Stand for 10" I-Series
North American Power Cable
European Power Cable
Quick Install Guide
90W Power Brick
VESA cover, top 10" (for mounting to the hinge)
VESA cover, bottom 10" (for mounting to the hinge)
Base Plate (for mounting to a countertop)
Cable Tie (for securing cables)
1x Screw, M4x6 (in Bag “A” - for mounting VESA covers)
4x Screw, M4X8 (in Bag “B” - for mounting main display)
1x Screw, M3X6 (in Bag “C” - for mounting base plate)
15" Z20 POS Stand
Z20 POS Stand for 15" I-Series
North American Power Cable
European Power Cable
Quick Install Guide; 150W Power Brick
0.3m USB-C to USB-C Cable (To provide USB and Video signals to the CFD)
VESA Cover, Top 15" (for mounting to the hinge)
VESA Cover, Bottom 15" (for mounting to the hinge)
Base Plate (for mounting to a countertop)
CFD Cover (for mounting a customer-facing display)
Cable Tie (for securing cables)
1x Screw, M4x6 (in Bag “A” - for mounting
VESA covers)
1x Screw, M4x6 (in Bag “A” - for mounting base plate)
4x Screw, M4X8 (in Bag “B” - for mounting main display)
4x Screw, M4X20 (in Bag “C” - for mounting a customer-facing display)
