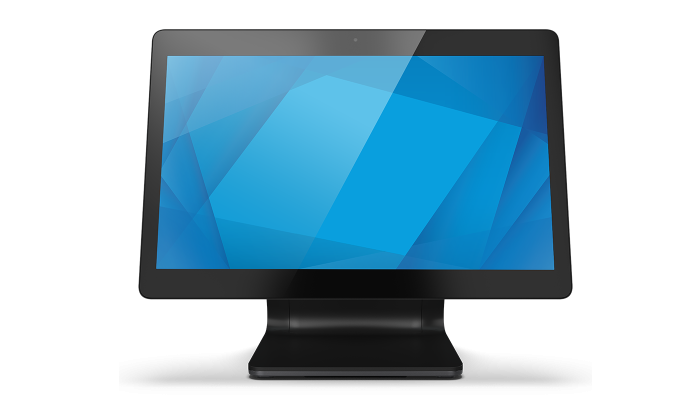

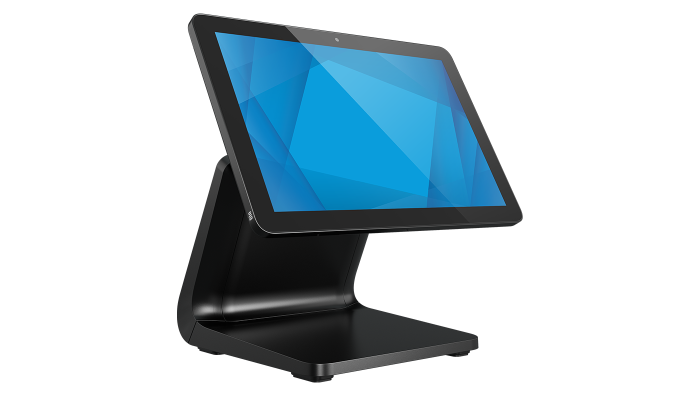

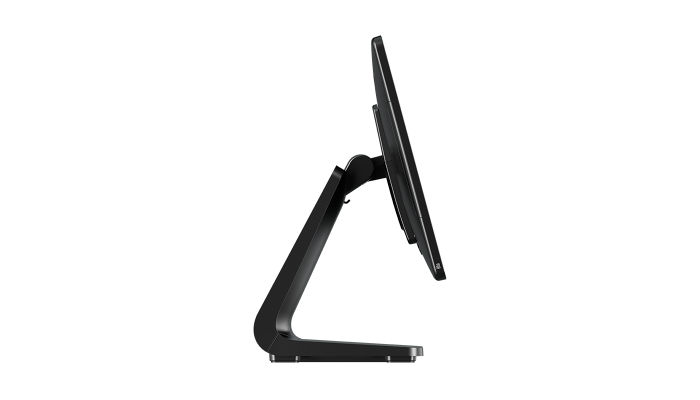

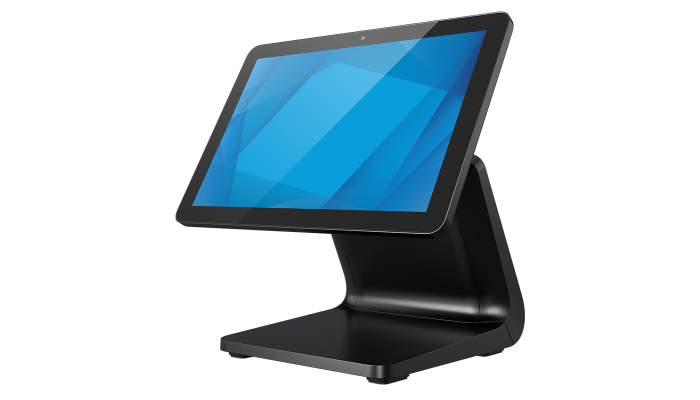

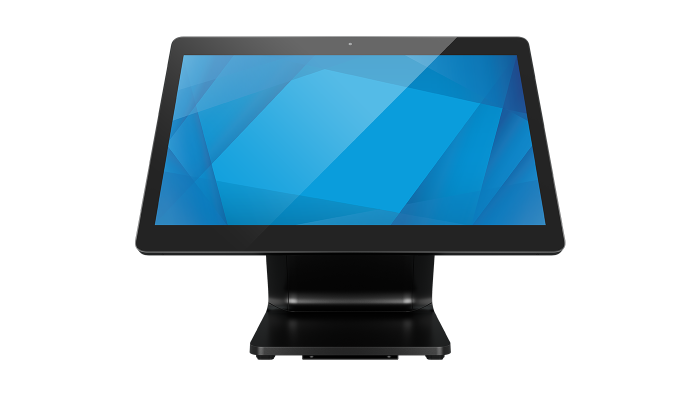

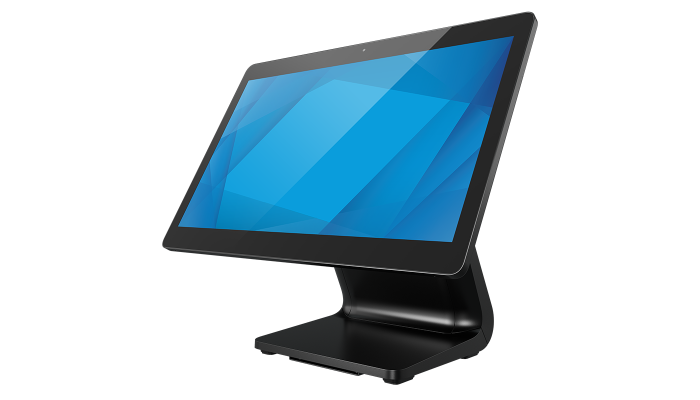

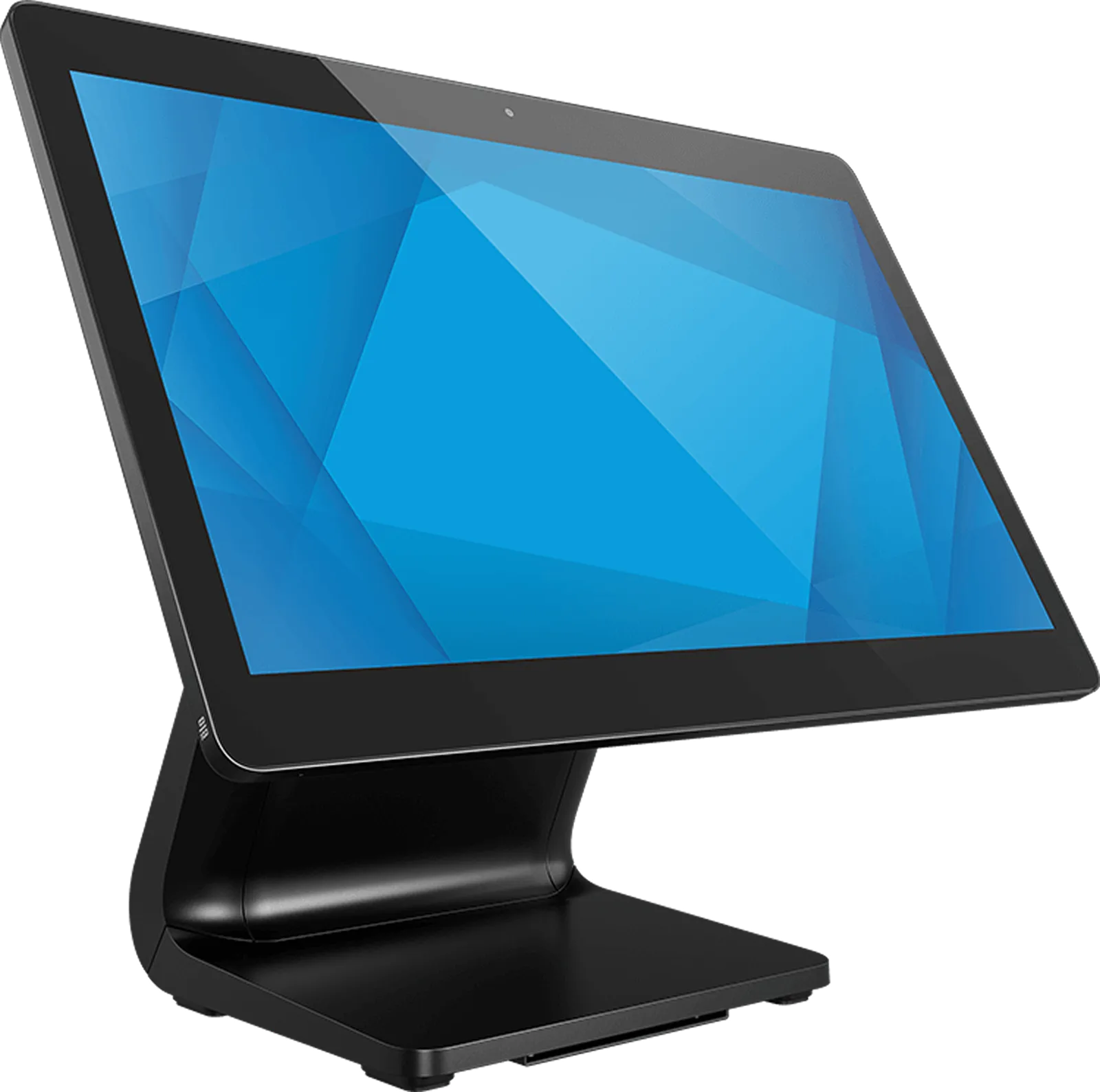

EloPOS Z20 for Android.

Specifications

• Technical

  ---

  Part Number(s)

  10-inch EloPOS Z20 Standard Model, Black - E809321 + E389883
  10-inch EloPOS Z20 Standard Model, White - E809321 + E411266 (MTO)
  10-inch EloPOS Z20 Value Model, Black - E809321 + E390647
  10-inch EloPOS Z20 Value Model, White - E809321 + E411643 (MTO)
  15-inch EloPOS Z20 Standard Model, Black - E809321 + E390075
  15-inch EloPOS Z20 Standard Model, White - E809321 + E412033 (MTO)
  15-inch EloPOS Z20 Value Model, Black - E809321 + E391032
  15-inch EloPOS Z20 Value Model, White - E809321 + E412421 (MTO)



  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Processor

  Standard Model: Qualcomm Snapdragon SDA660
  Value Model: Rockchip RK3399

  Memory (RAM)

  4GB

  Storage

  Standard Model: 64GB
  Value Model: 32GB

  OS

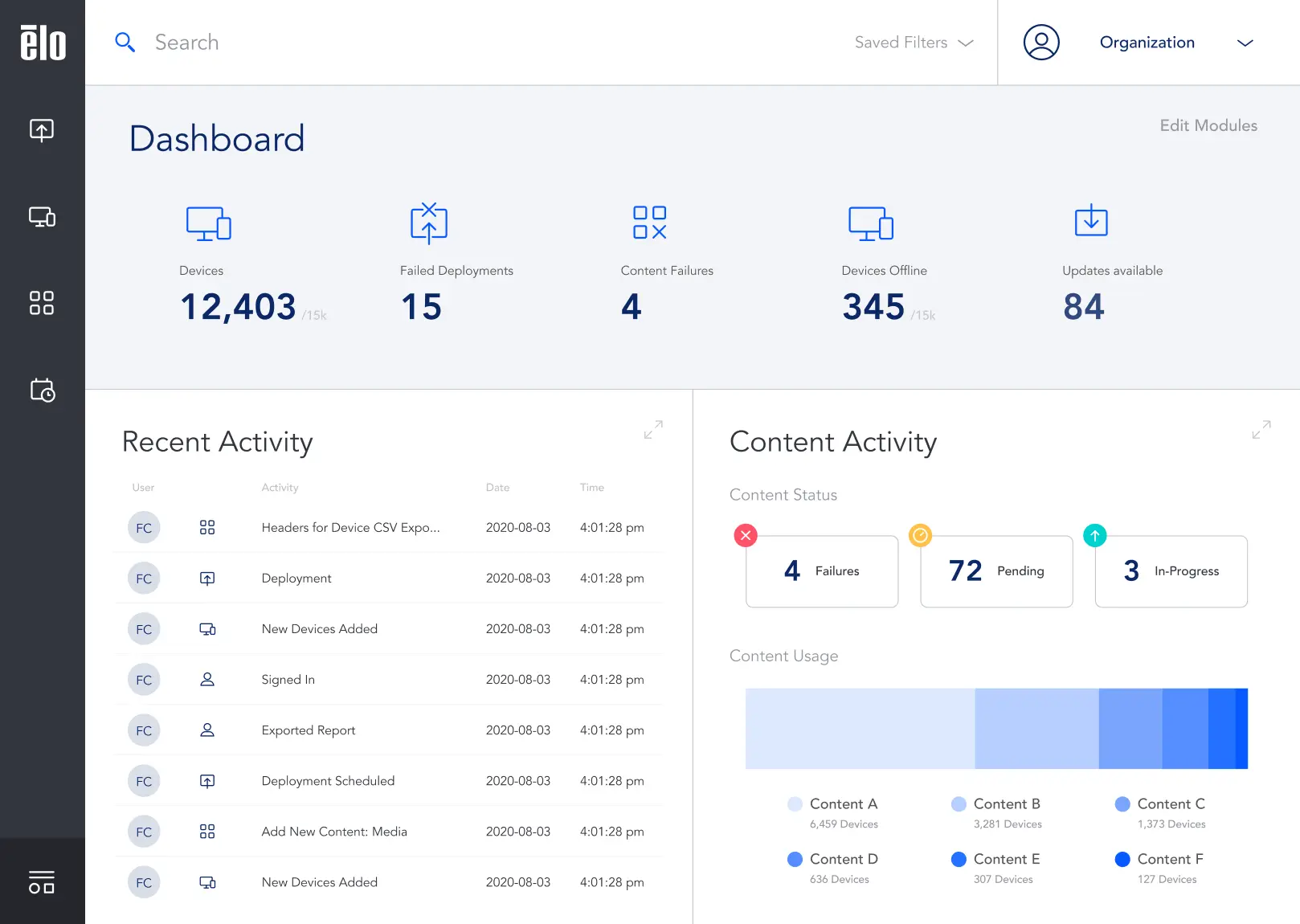

  Android 10 with Google Play Services and EloView content deployment and management

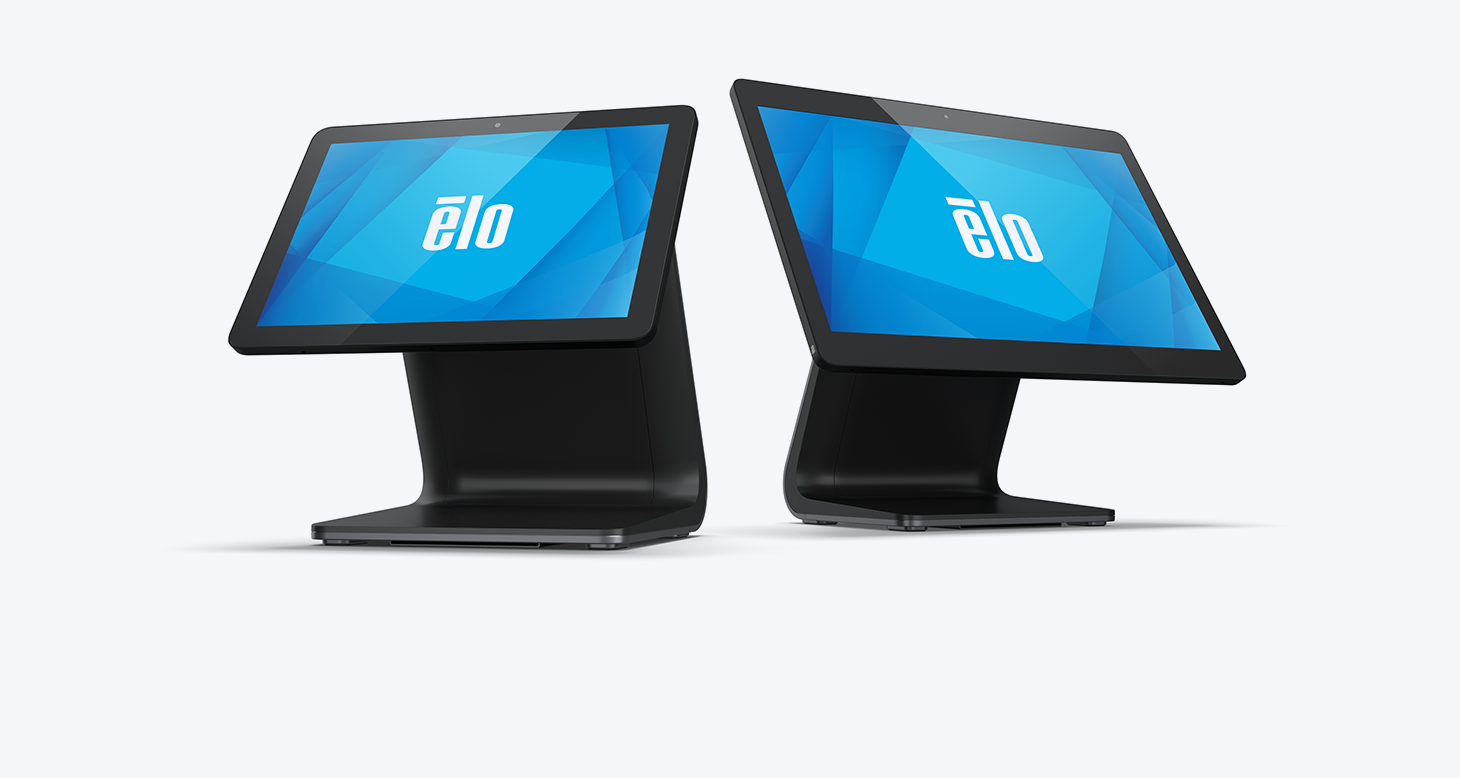

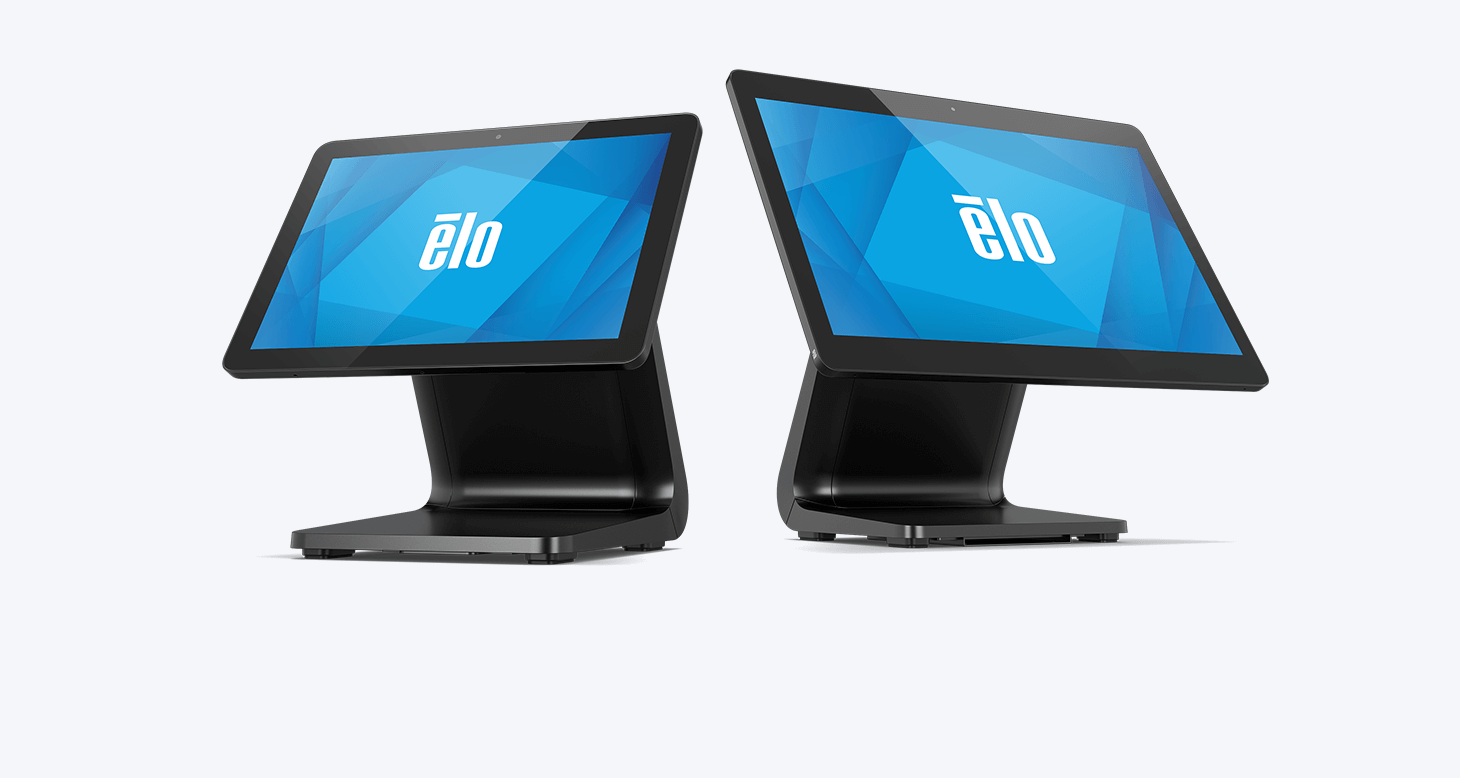

  Diagonal Size

  10.1'' diagonal, Active matrix TFT LCD (LED) or 15.6'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area

  10": 8.54" x 5.34" / 217 mm x 136 mm
  15": 13.55" x 7.62" / 344 mm x 194 mm

  Resolution

  10" Standard Model: 1920 x 1200 @ 60Hz
  10" Value Model: 1280 x 800 @ 60Hz
  15": 1920 x 1080 @ 60Hz

  Number of Colors

  8-bit (16.7 million)

  Brightness (Typical)

  10" Standard Model: LCD Panel: 450 nits, TouchPro PCAP: 387 nits
  10" Value Model: LCD Panel: 300 nits, TouchPro PCAP: 250 nits
  15" Standard Model: LCD Panel: 300 nits, TouchPro PCAP: 258 nits
  15" Value Model: LCD Panel: 250 nits, TouchPro PCAP: 215 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  10" Standard Models: 900:1
  10" Value Models: 800:1
  15": 700:1

  Viewing Angle

  10": Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
  15" Standard Model: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
  15" Value Model: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

  I/O Ports

  I-Series 4
  USB 3.0 support (900mA)
  USB-C output - When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details.
  Micro SD slot
  GPIO
  RJ45 Ethernet LAN (Gigabit)
  DC input

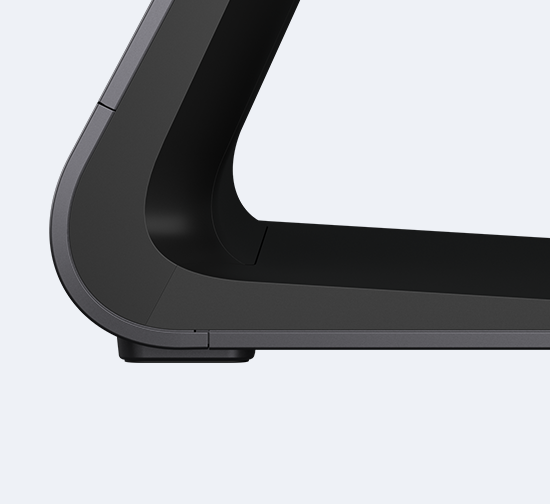

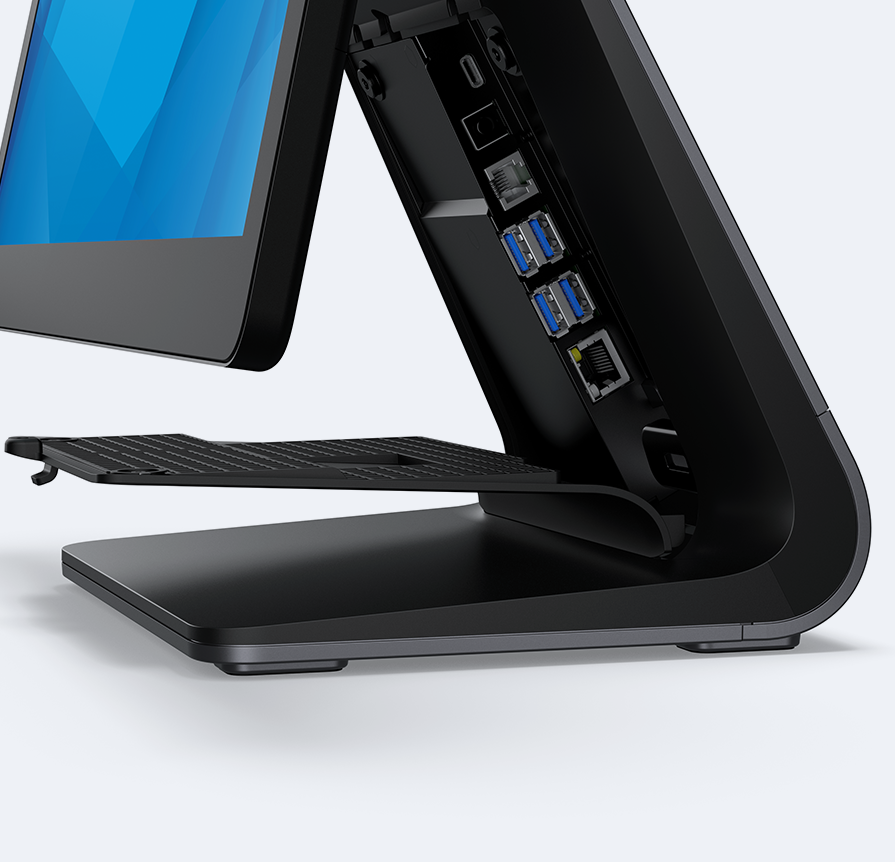

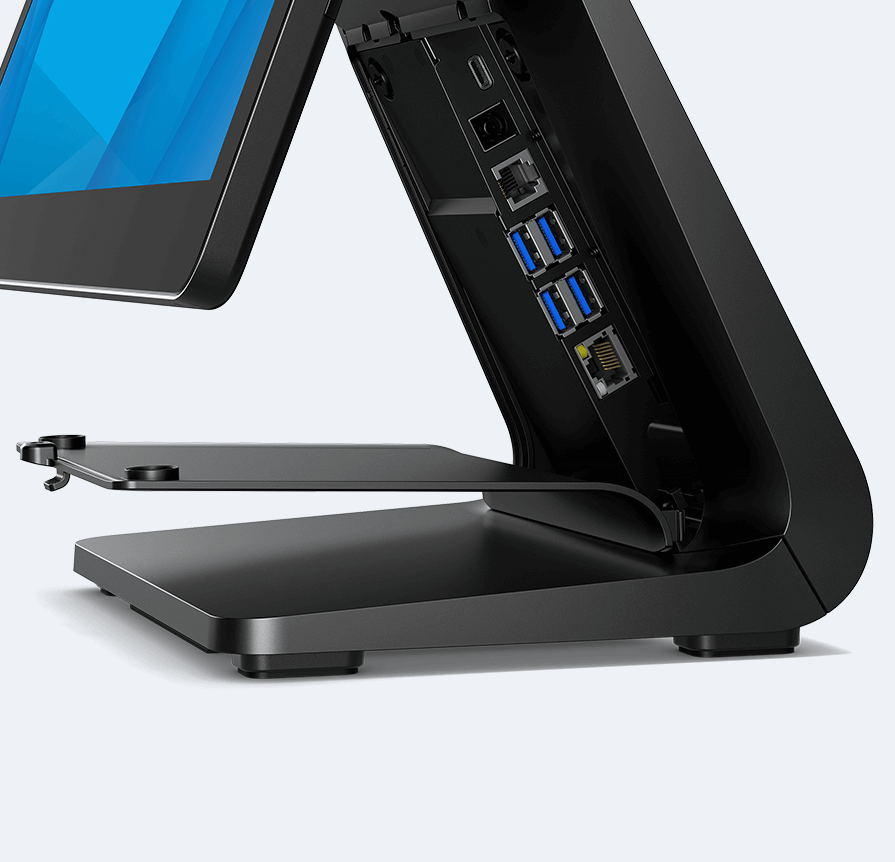

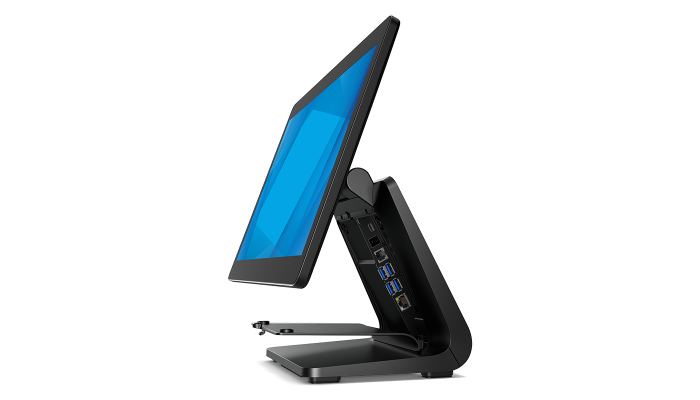

  Z20 POS Stand
  DC input
  4 x USB-A 3.0 Port (900mA)
  RJ12 (serial/cash drawer) 12/24V - User will need to select the mode
  RJ45 Ethernet LAN (Gigabit) - Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD

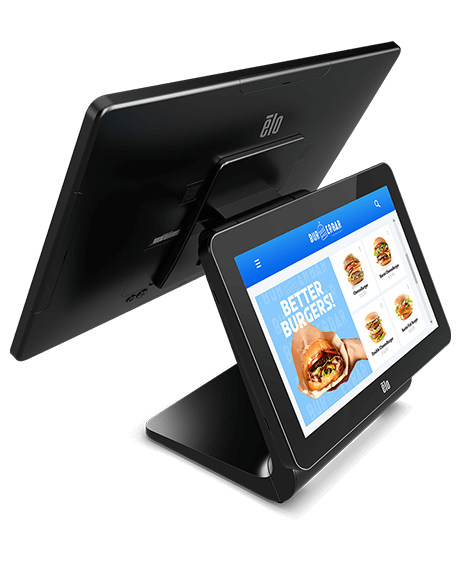

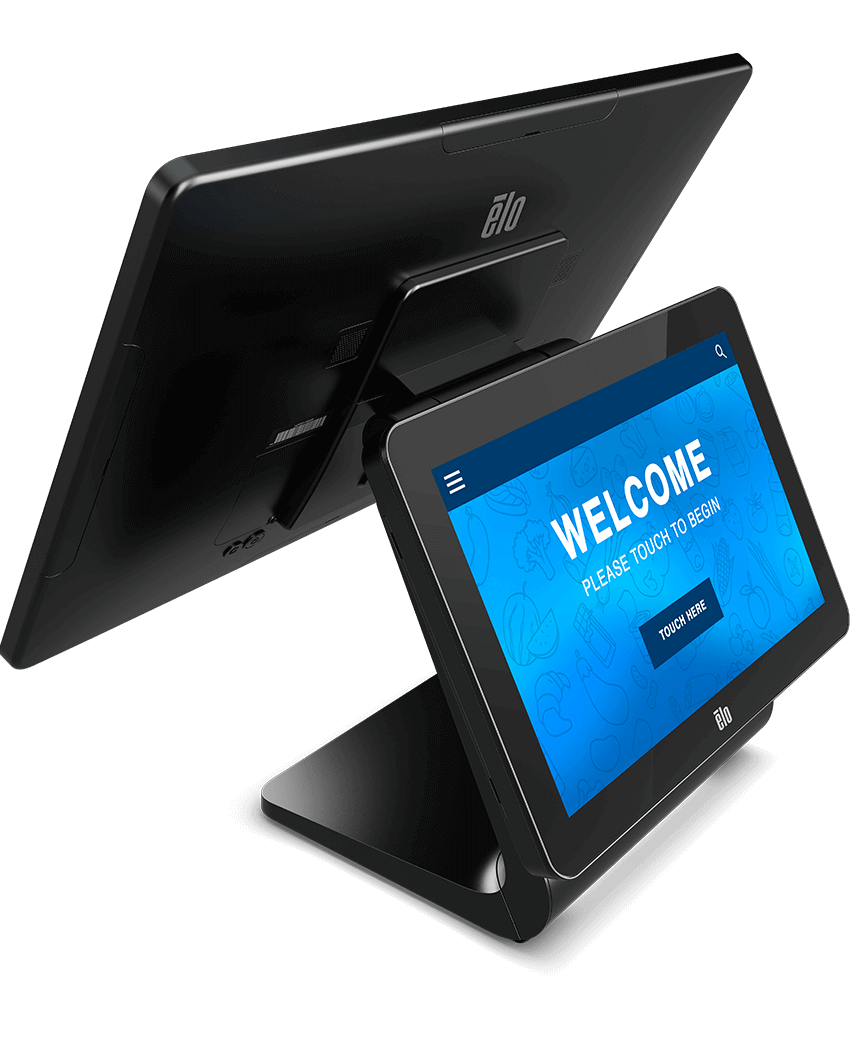

  USB-C output - CFD (DisplayPort, Touch and Power Deliver up to 27W) - USB speeds will be reduced to 2.0 speeds when DP video is being output.

  Display Head Connection

  DC Jack for Power
  USB-C for Data to the Z20 Stand IO Hub

  Peripheral Mounting

  4x micro-USB 2.0 Elo Edge Connect ports

  Support for 1.2A on one port and 500mA for the remaining three ports

  Webcam

  Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
  Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus

  Wireless

  802.11a/b/g/n/ac + Bluetooth 5.0

  Audio Ports

  Standard Model: 2x built-in Digital Microphones
  Value Model: 1x built-in Analog Microphone

  Speakers

  Standard Model: 2x 0.8W
  Value Model: 2x 2W

  Power Supply

  AC input voltage: 100-240 VAC
  Input frequency: 50-60 Hz

  power adapter (included in accessory box)

  Power Consumption (Typical)

  10" Standard Model:
  On: 8.5W
  Off: 0.4W
  Sleep: 4.5W

  10" Value Model:
  On: 7.2W
  Off: 0.4W
  Sleep: 3.4W

  15" Standard Model:
  On: 11.0W
  Off: 0.4W
  Sleep: 4.4W

  15" Value Model:
  On: 10.0W
  Off: 0.4W
  Sleep: 3.4W

  Power Over Ethernet (PoE)

  Supported via Elo PoE Device PN: E413396
  Reference the I-Series 4.0 user guide for details.

  Dimensions

  10": 10.1" x 6.8" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm
  15" Standard Model: 14.87" x 9.8" x 0.9" / 377.7 mm x 249.7 mm x 22.3 mm
  15" Value Model: 15.3" x 9.8" x 0.9" / 389.7 mm x 249.7 mm x 22.3 mm

  Shipping Box Dimensions

  10" Standard Model: 12.4" x 5.9" x 8.8" / 310 mm x 145 mm x 220 mm
  10" Value Model: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm
  15" Standard Model: 17.7" x 6.5" x 12.2" / 450 mm x 165 mm x 310 mm
  15" Value Model: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm

  Weight (Unpackaged)

  10" Standard Model: 2.0 lbs / 0.9 kg
  10" Value Model: 1.8 lbs / 0.8 kg
  15" Standard Model: 3.9 lbs / 1.8 kg
  15" Value Model: 3.5 lbs / 1.6 kg

  Weight (Packaged)

  10" Standard Model: 4.5 lbs / 2.1 kg
  10" Value Model: 4.9 lbs / 2.2 kg
  15" Standard Model: 7.8 lbs / 3.5 kg
  15" Value Model: 7.2 lbs / 3.3 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% to 80%
  Storage: 5% to 95%

  Regulatory approvals and declarations

  UL/cUL (US)
  FCC (US)
  IC (Canada)
  CE (Europe)
  CB (International)
  VCCI, MIC (Japan)
  RCM (Australia)

  Supported Countries

  Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

  Real-Time Clock

  lithium coin cell battery

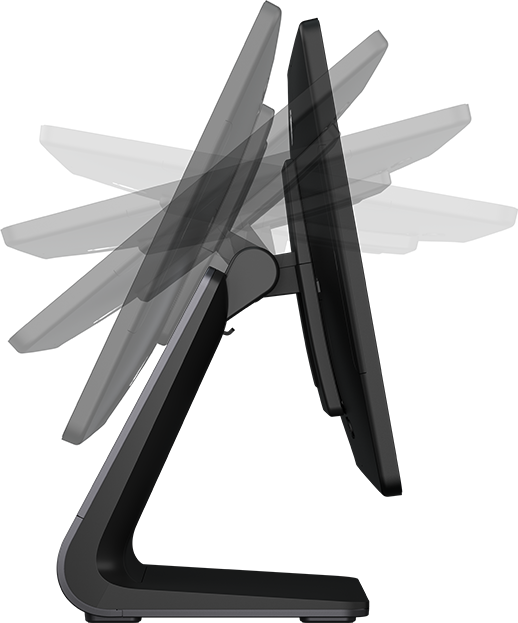

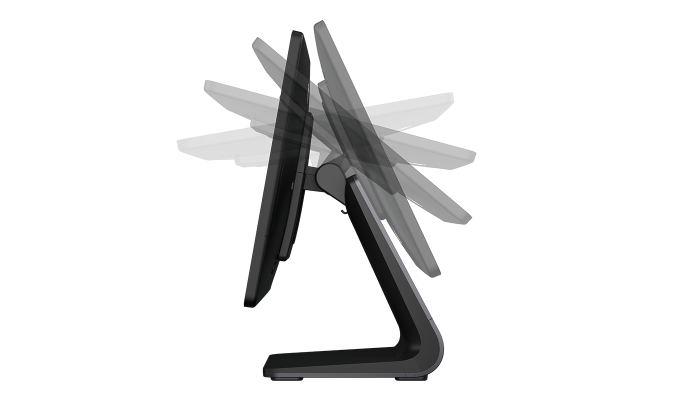

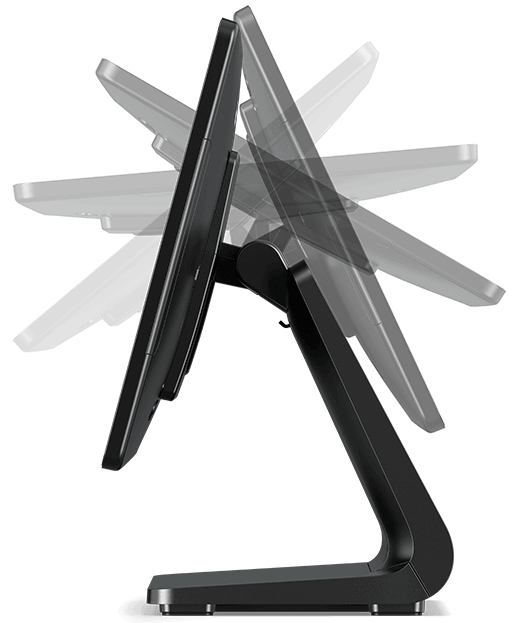

  Hinge Life Rating

  5000 cycles

  MTBF

  50,000 hours demonstrated

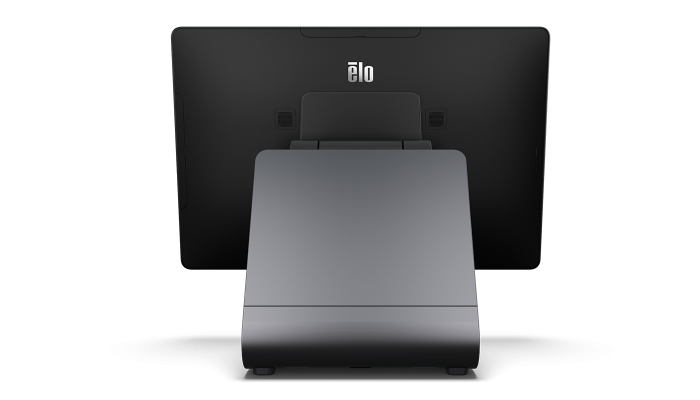

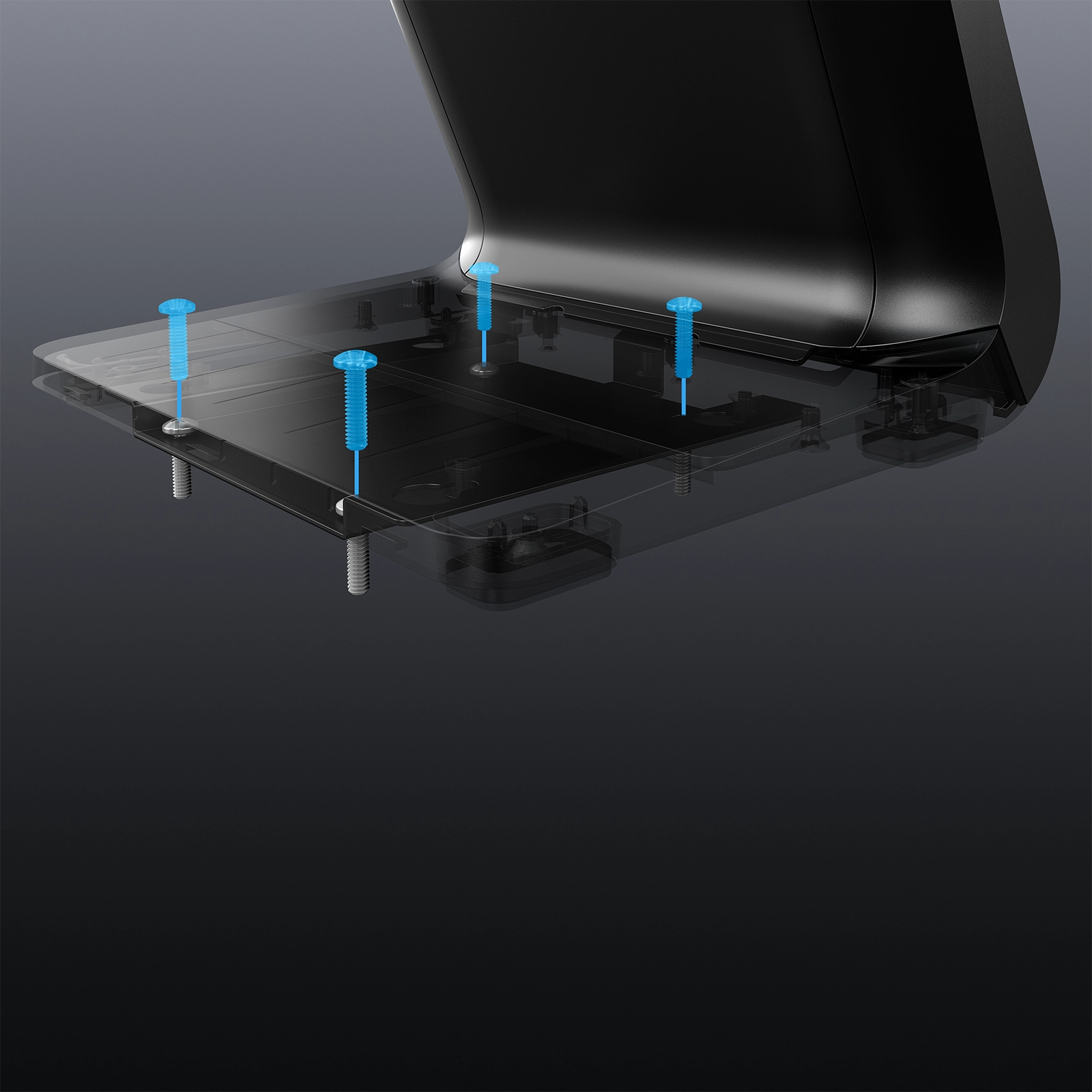

  Mounting Options

  VESA 75mm

  Warranty

  2-year

  Extended Service Options

  I-Series 4:
  3 year OS 360 - Elo P/N: E873133
  5 year OS 360 - Elo P/N: E873326
  3 year Warranty Coverage – Elo P/N: E819394
  4 year Warranty Coverage – Elo P/N: E819598
  5 year Warranty Coverage – Elo P/N: E819795
  3 year Warranty Coverage + ADP – Elo P/N: E130329
  4 year Warranty Coverage + ADP – Elo P/N: E130530
  5 year Warranty Coverage + ADP – Elo P/N: E130719
  3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908
  4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109
  5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294
  2 year Warranty Coverage + AUR – Elo P/N: E819985
  3 year Warranty Coverage + AUR – Elo P/N: E820186
  4 year Warranty Coverage + AUR – Elo P/N: E820388
  5 year Warranty Coverage + AUR – Elo P/N: E820582
  2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
  3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
  4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
  5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
  2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245
  3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432
  4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627
  5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811

  Z20 POS Stand:
  3 year warranty coverage - Elo P/N: E375367
  4 year warranty coverage - Elo P/N: E375573
  5 year warranty coverage - Elo P/N: E375771
  2 year warranty coverage + AUR - Elo P/N: E375970
  3 year warranty coverage + AUR - Elo P/N: E376169
  4 year warranty coverage + AUR - Elo P/N: E376362
  5 year warranty coverage + AUR - Elo P/N: E376547

  OS Support

  Complimentary security updates provided for the first three months.
  Optional extended coverage available with Elo OS 360 package.

  Sealability

  Touchscreen sealed to LCD

  What's in the Box

  I-Series 4
  North American Power Cable
  European Power Cable
  Power Brick
  Quick Install Guide
  Screws for cable cover door (located in the power/Ethernet bay)
  Tie wrap

  Z20 POS Stand
  8 x M4x10 Flat-head Screw (in bag “A”)
  2 x M4x6 Pan-head Screw (in bag “B”)
  Screw-height tool
  Installation Guide
  0.3m USB-C to USB-C cable (To provide USB and Video signals to the CFD)
  150W Power Brick
  North American Power Cable
  European Power Cable
  Tie wrap
  VESA Cover, Bottom, 15”
  VESA Cover, Top, 15”
  VESA Cover, Bottom, 10”
  VESA Cover, Top, 10”
  Base Plate

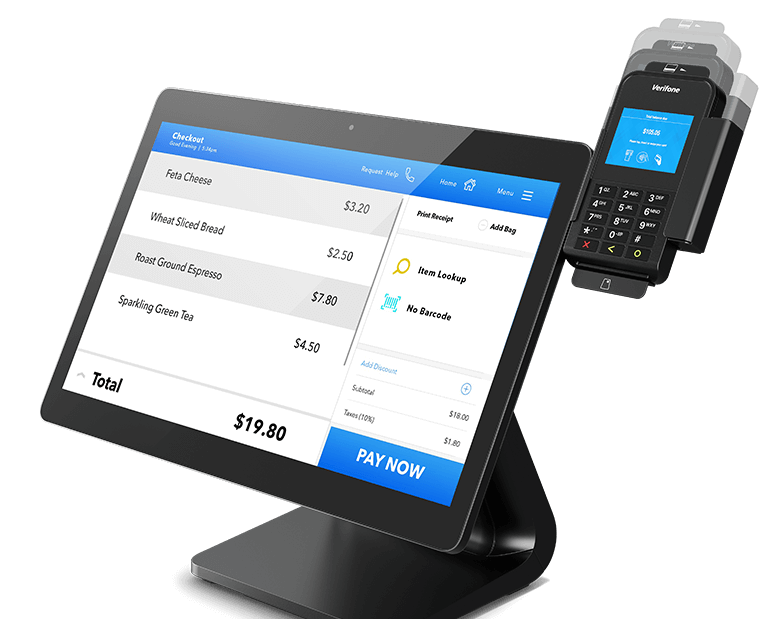

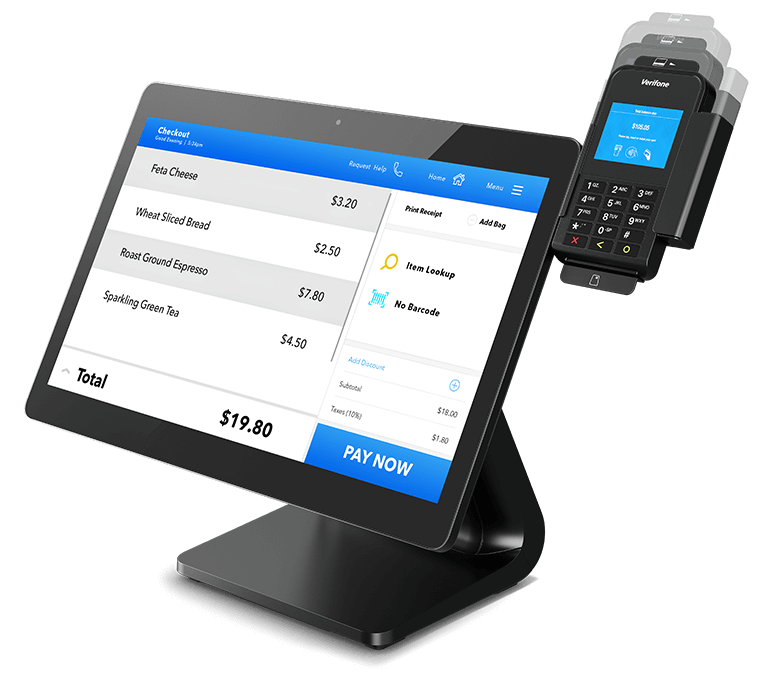

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Fingerprint Scanner – Elo P/N: E134286
  2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
  2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
  2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
  POE Module Kit - Elo P/N: E413396
  Status Light (Micro-USB Connectivity) - Elo P/N: E644767
  Temperature Sensor Pro – Elo P/N: E534879
  3D Camera - Elo P/N: E134699
  Webcam - Elo P/N: E201494
  Expansion Module – Elo P/N: E809509
  RFID - Elo P/N: E673037

  Stands, Mounts & Kits

  65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
  90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579
  1002L - Elo P/N: E155834
  1002L - Elo P/N: E324341
  1302L - Elo P/N: E683595
  1502L - Elo P/N: E125496
