EloPOS Z10 with Android

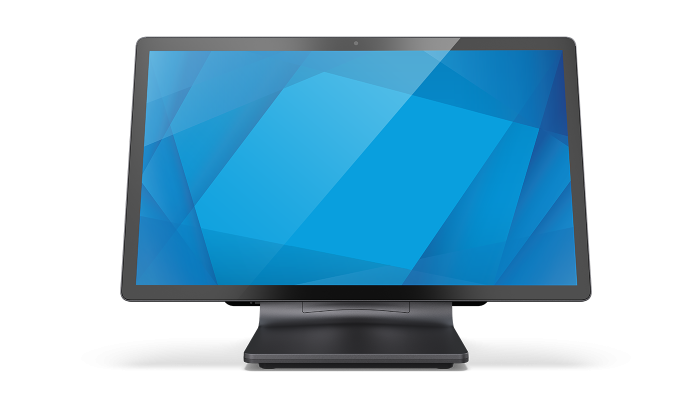

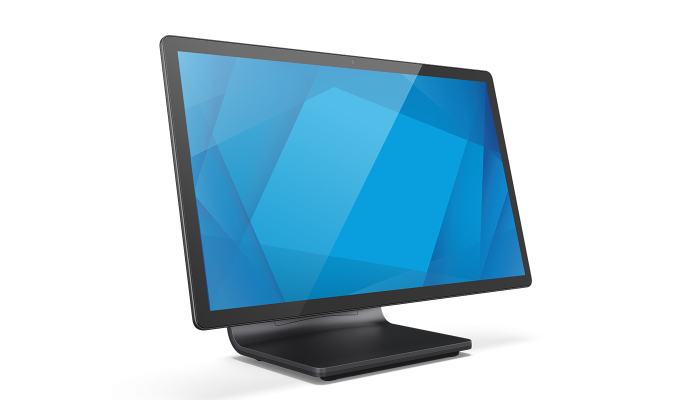

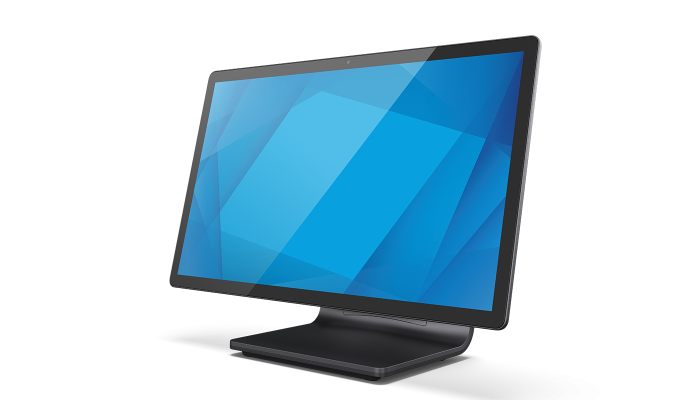

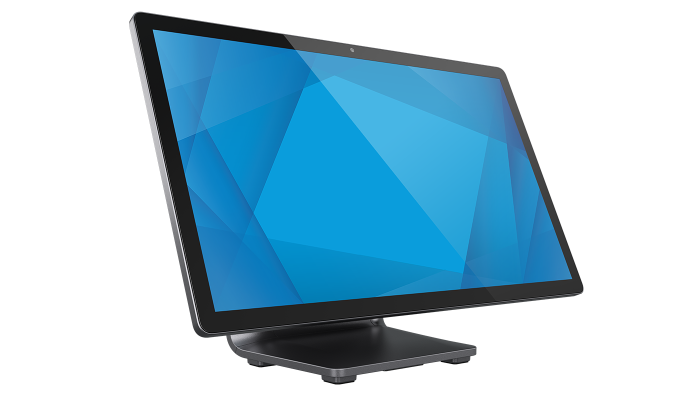

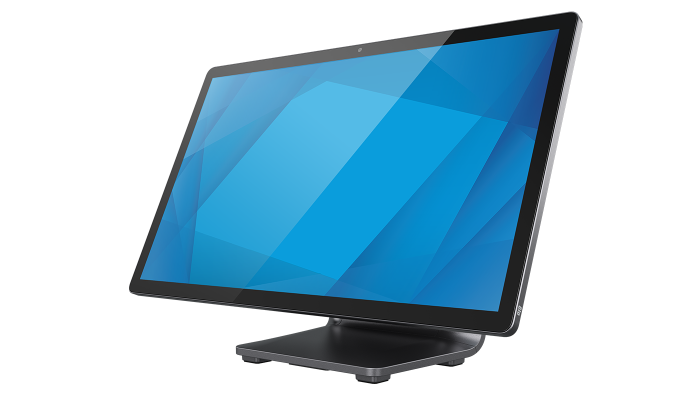

EloPOS Z10 for Android.

Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete with a 15.6‑inch Full HD interactive display, I/O
hub, contained cable routing, Android 14 OS and optional interactive customer-facing display, the EloPOS Z10 delivers one of the slimmest POS systems to the market.

Order now

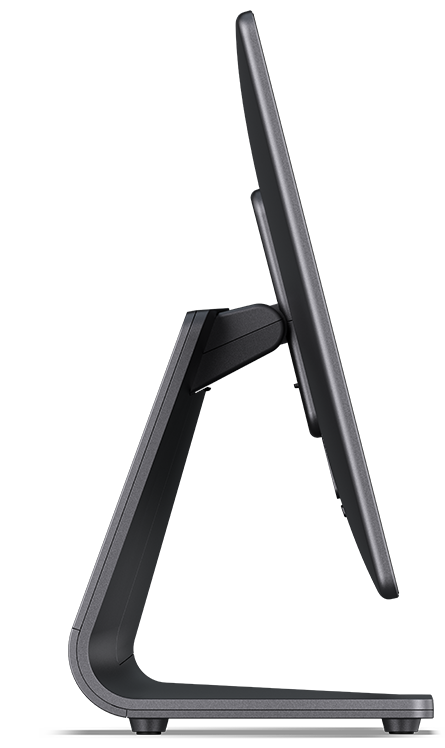

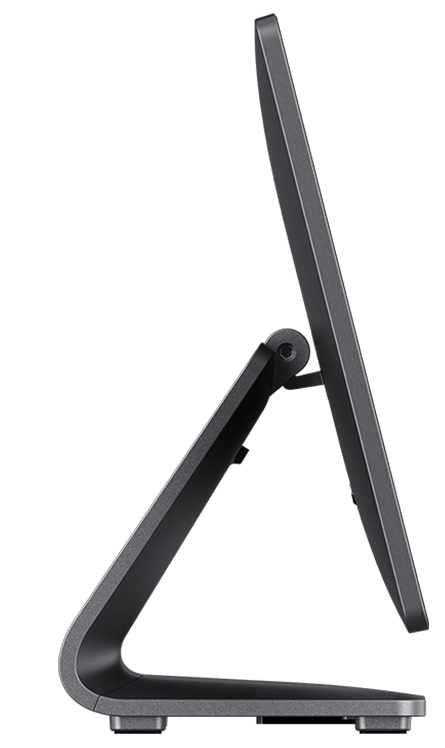

Compact
form factor.

Purposefully architected to fit everything you need at the point of sale into a sleek compact design.

Powerful Touchscreen

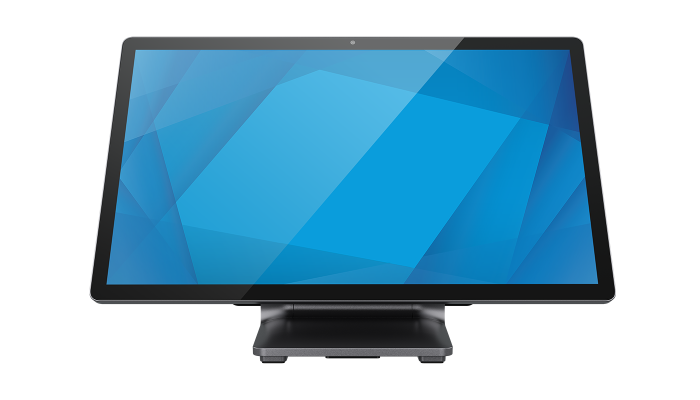

The EloPOS Z10 offers a fully integrated 15.6-inch full HD interactive display.

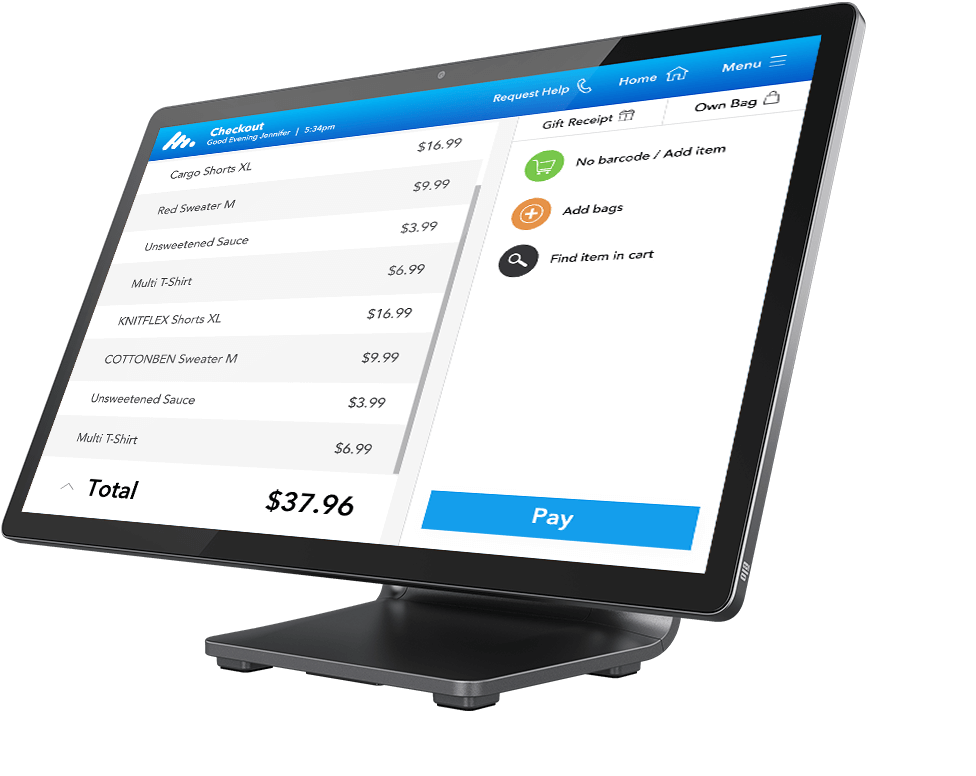

Elo Android EloPOS Z10 terminals offers a fully integrated 15 inch Full HD interactive display

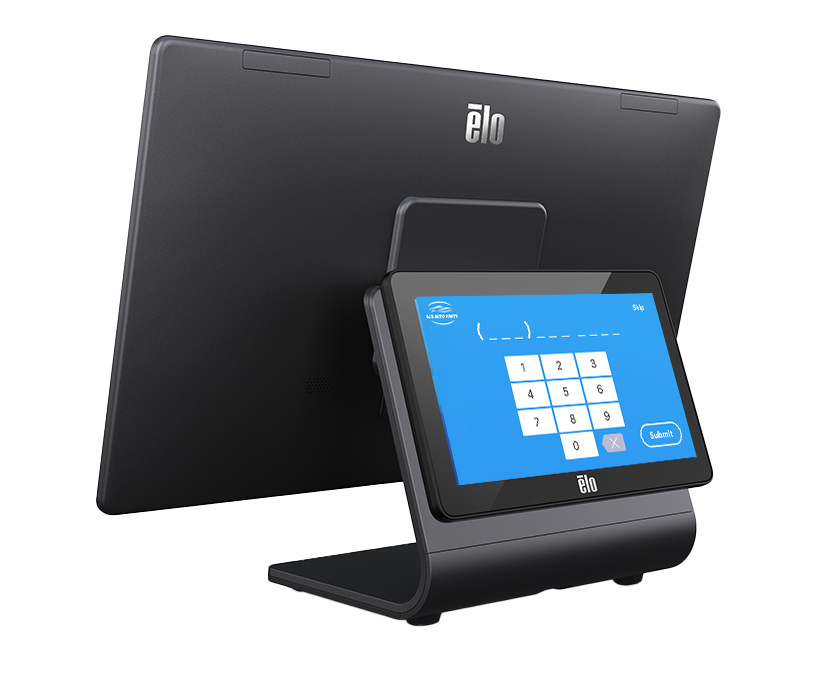

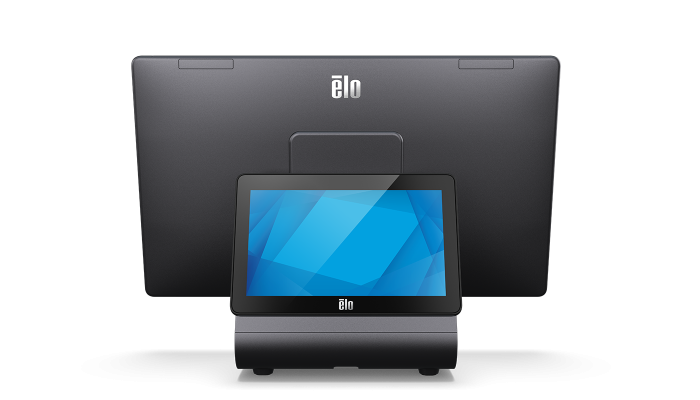

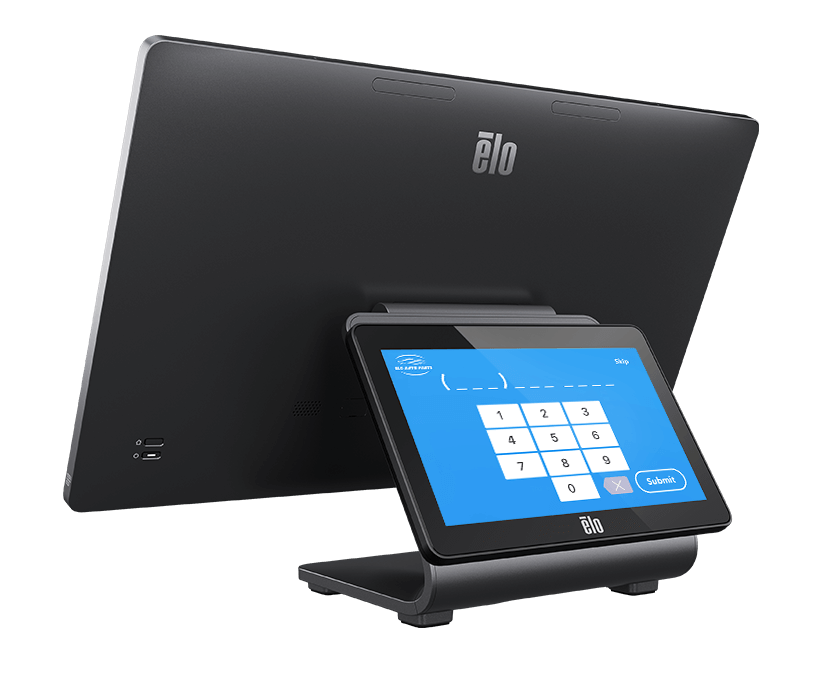

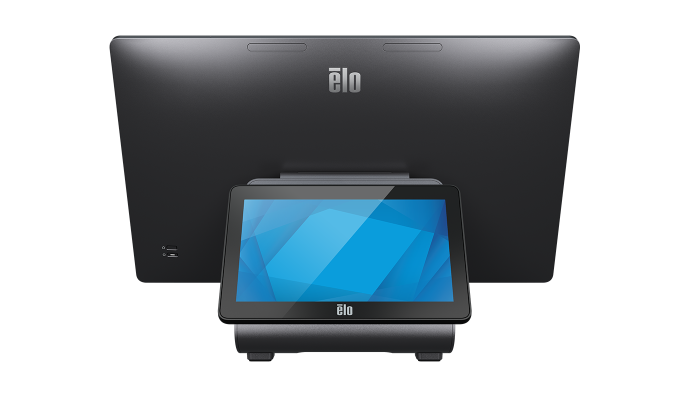

15 inch Android EloPOS terminal with customer facing display

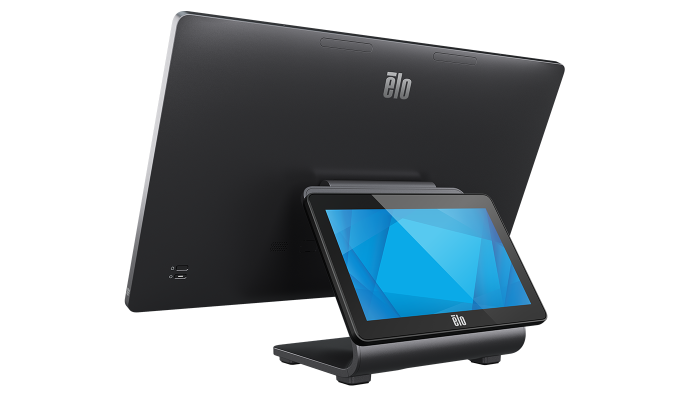

Interactive display for customers.

Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.

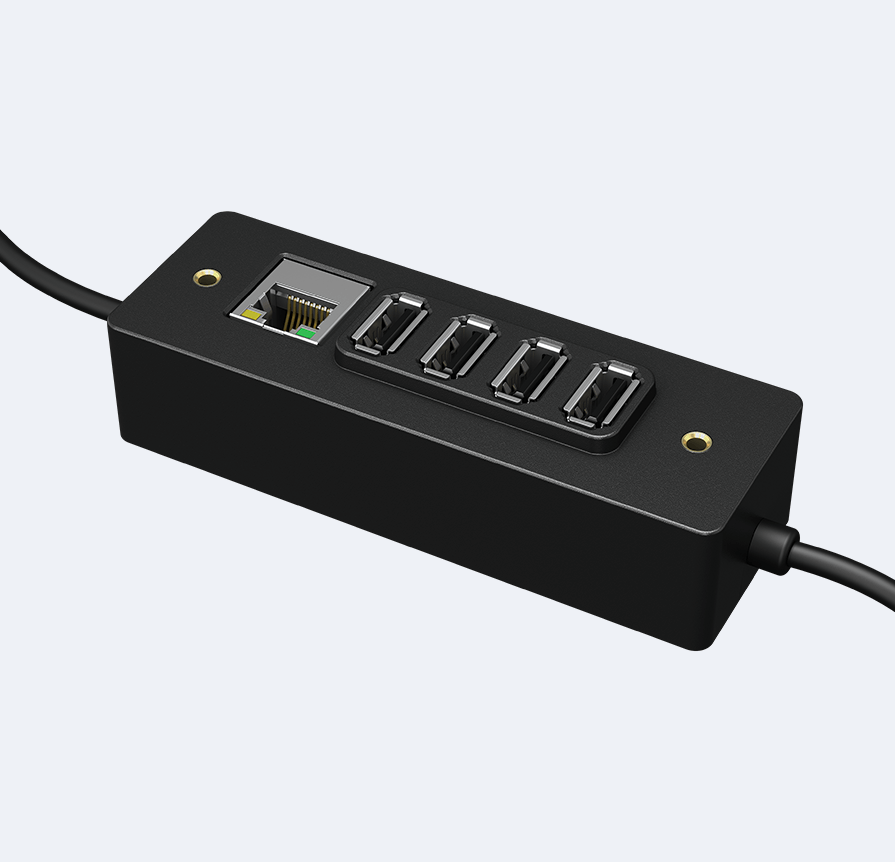

EloPOS Z10 Android terminals includes i o hub for peripheral connectivity

Connectivity for Accessories The EloPOS Z10 offers an I/O hub that
extends connectivity from the display to your accessories.

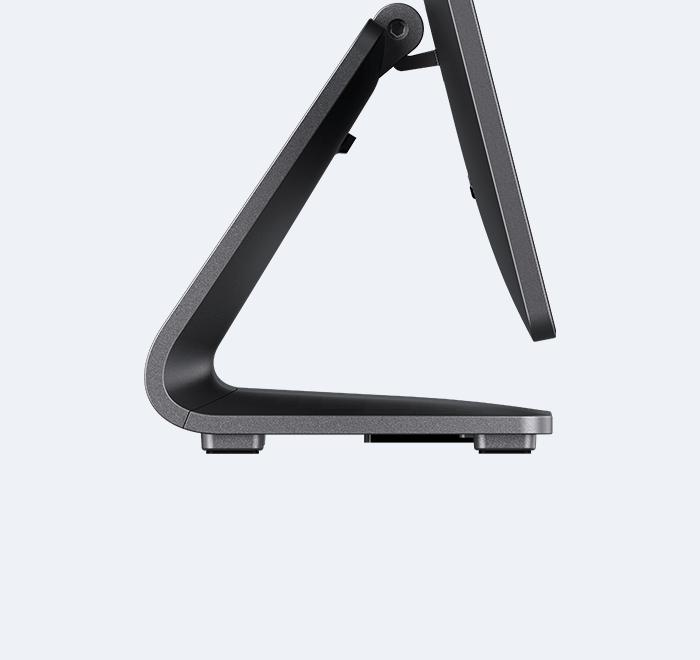

Elo 15 inch Android EloPOS Z10 terminals offer concealed cable routing

Conceal Your Cables Keep your counter clean with the
fully-integrated cable routing system.

Single Cable Connection Connect a secondary display with a
single USB cable that provides
touch, video and power.

Create your perfect POS system.

From integrated I/O and a customer-facing display to concealed cable routing and placement flexibility, Elo’s modular point of sale solutions can be tailored to fit any business.

I/O	EloPOS Z10	EloPOS Z20	EloPOS Z30
Ethernet
4x USB-A 3.0
Cash Drawer Port*
24V powered USB
USB-C
Edge Connect Ports**

Main Display
I-Series 4 & 5
I-Series Slate

Secondary Display
Integrated
Mount for CFD

*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only

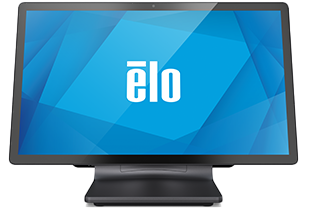

EloPOS Z10

Compatible with the 15‑inch I‑Series Slate

I/O

Ethernet
4x USB-A 3.0

Secondary Display

Optional 7-inch CFD.

Explore EloPOS Z10

EloPOS Z20

Compatible with the 10‑ & 15‑inch I‑Series 4 & 5

I/O

Ethernet
4x USB-A 3.0
Cash Drawer Port*
USB‑C
Edge Connect Ports**

Secondary Display

Optional 10‑, 13‑ or 15‑inch CFD.***

Explore EloPOS Z20

EloPOS Z30

Compatible with the 15‑inch I‑Series Slate.

I/O

Ethernet
4x USB-A 3.0
Cash Drawer Port*
24V powered USB
USB‑C (non-CFD model)

Secondary Display

Choose integrated CFD; or no CFD in stand.

Explore EloPOS Z30

*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only

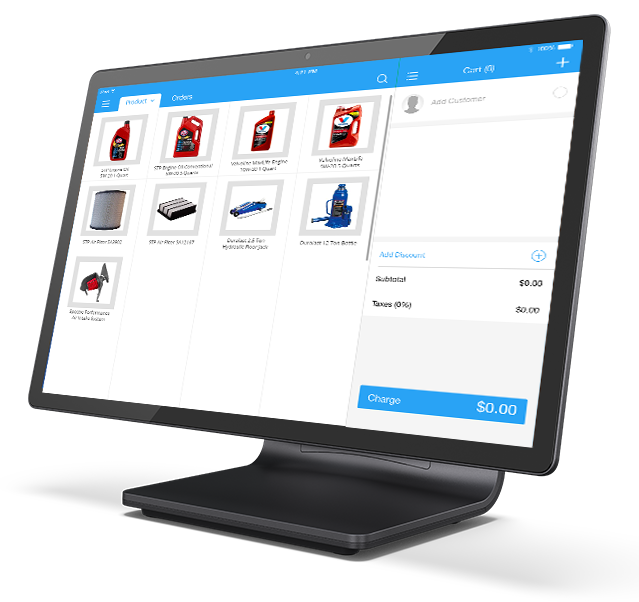

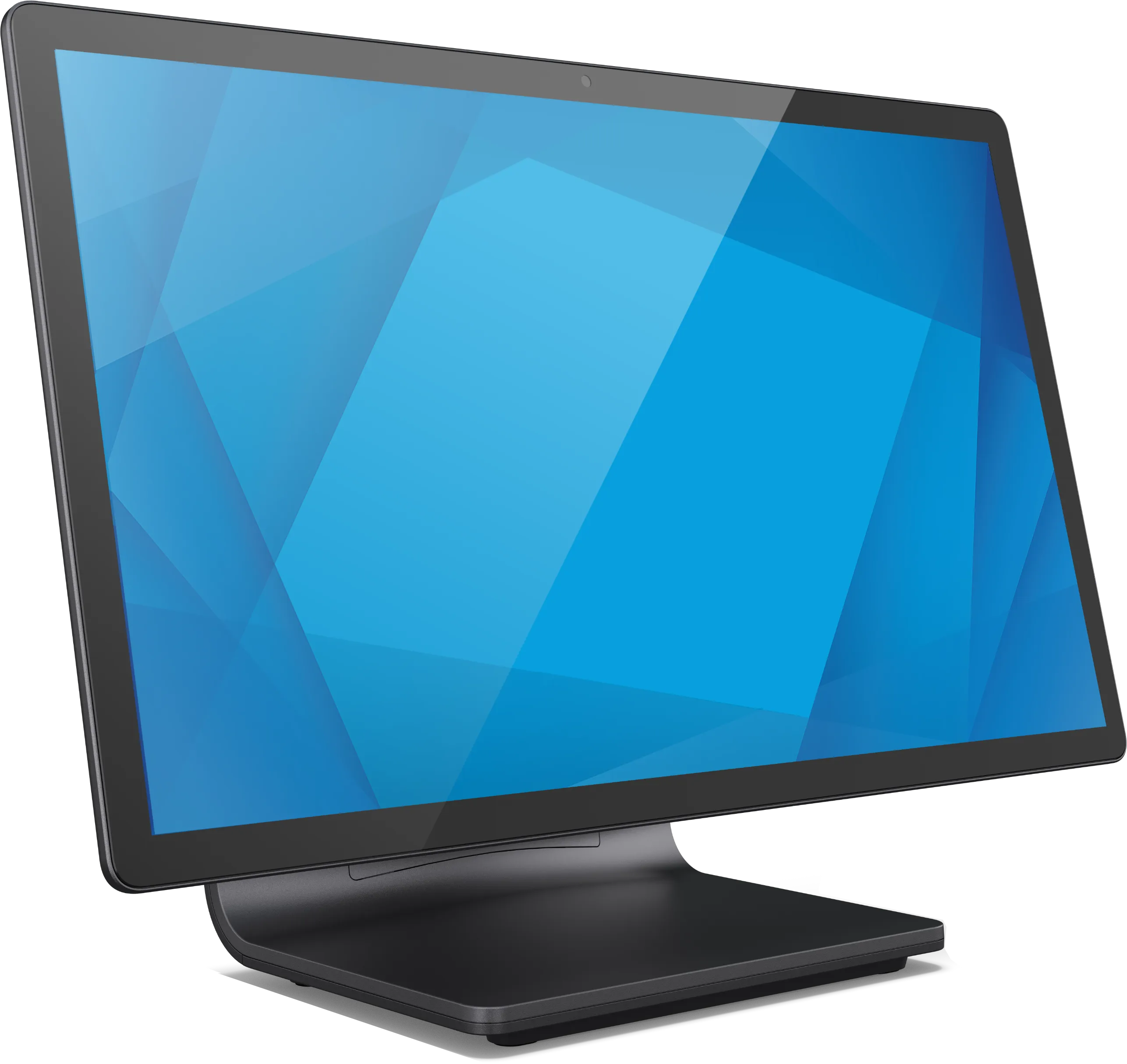

Image of EloPOS Z10 for Android employee-facing touchscreen display

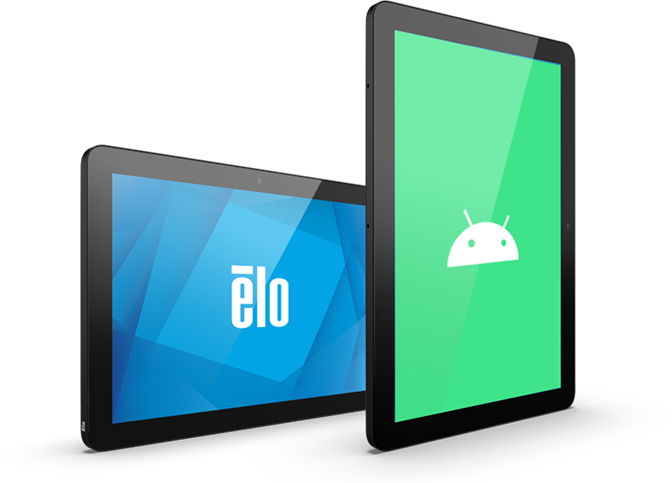

Get enterprise
support
with Elo
EssentialEdge.™

With easy-to-use development kits, robust management tools, world
class life cycle management and security, Elo can help you deliver the
convenience and familiarity of Android interfaces in a secure, business-
friendly way.

OS 360 - Take advantage of monthly security updates to keep your
devices secure.
Seamless Provisioning - Leverage EloView or Google Zero Touch to
easily set up your device.
Elo OEMConfig - Get Elo's proprietary APIs on your preferred Android
MDM platform, saving months of effort as new releases become available.

Explore Elo EssentialEdge

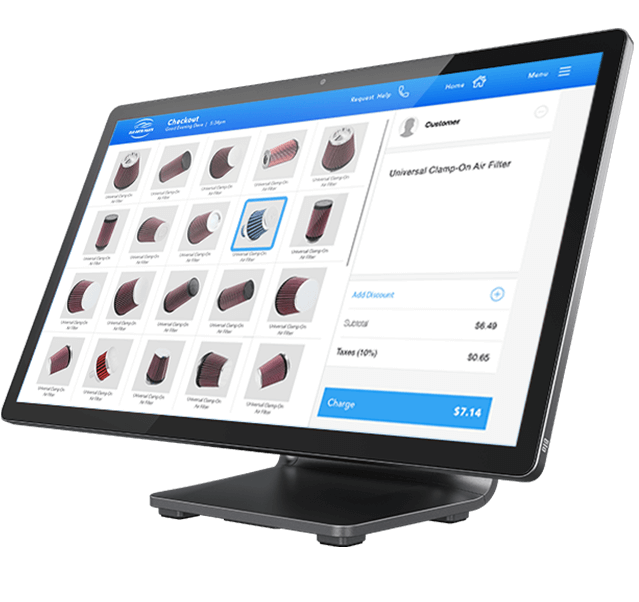

Commercial-grade
performance.

The EloPOS Z10 is backed by the powerful
Qualcomm 6490 octa-core processor
to deliver the performance
businesses need.

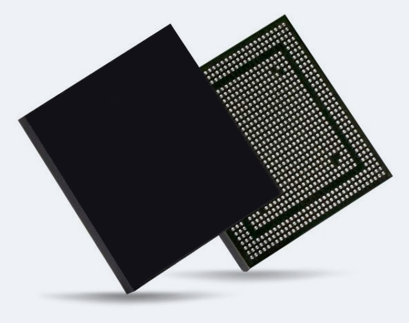

Image of Qualcomm 6490 octa-core processor chip demonstrating premium-tier
features and IoT optimization

Expand possibilities
with Applied AI.

The Qualcomm 6490 chipset offers a fused AI accelerator,
enabling astonishing performance at low power. These
features and more produce a combined AI performance
of up to 12 TOPS.

Manage your devices
easily with EloView.®

EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.

Remotely deploy content and manage
your devices securely.
Provision your devices in seconds with a
seamless out-of-the-box experience.
Leverage Elo Home to create a
customized interface on your Elo device.

Explore EloView

Google Mobile
Services Ready.

With Google Mobile Services and EloView, managing Android devices and your apps is
simplified. You can remotely deploy and manage your device, adjust detailed settings, and
take advantage of the latest Google-powered features. Not only does this make
management easier, but it also ensures your Elo devices meet the high standards required
for Google CTS verification, giving you peace of mind.

Get peace of mind
with EloCare.^SM

From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.

Advance Unit Replacement
Accidental Damage Protection
Extended Warranty
OS 360

Learn more

Quality that
is built to last.

We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.

Learn more

Retailers across the globe rely on Elo's POS Solutions everyday.

Your success is our success. We work side-by-side to help ensure selection, deployment and updates are executed properly so you can focus on your business.

Configure your point of sale system today

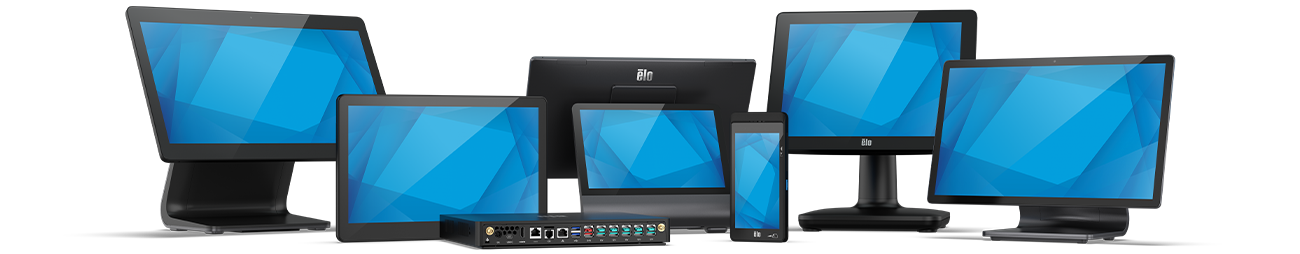

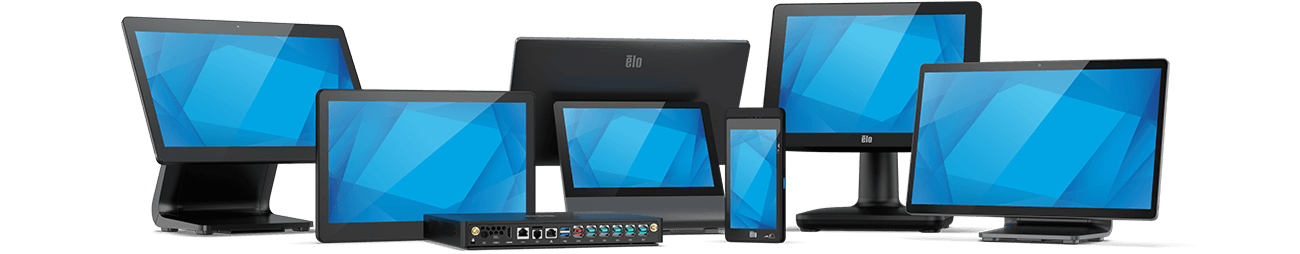

Elo offers a full line of Android POS systems

Specifications

Technical

Part Number(s)

I-Series 5 Slate: E540697
Z10 Stand: E767159

Enclosure Color

Dark Gray Metallic

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Qualcomm Snapdragon QCS6490

Memory (RAM)

8GB

Storage

64GB

OS

Android 14 with Google Play Services (AOSP capable)
Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

Diagonal Size

15.6'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

13.55" x 7.62" / 344 mm x 194 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

8-bit (16.7 million)

Brightness (typical)

LCD Panel: 350 nits
TouchPro PCAP: 280 nits

Response Time-total (typical)

20 ms

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

I/O Ports

DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)

Webcam

8MP
Max Resolution: 3200x2400 30fps
Auto Focus

Wireless

802.11a/b/g/n/ac/ax + Bluetooth 5.2

Audio Ports

2x built-in Digital Microphones

Speakers

2x 1W

Power Supply

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

Power Consumption (Typical)

On: 8.5W
Off: 0.4W
Sleep: 3W

Dimensions

I-Series 5 Slate: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm
Z10 Stand: 6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm

Shipping Box Dimensions

I-Series 5 Slate: 17.44" x 12.20" x 6.14" / 443 mm x 310 mm x 156 mm
Z10 Stand: 8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm

Weight (Unpackaged)

I-Series 5 Slate: 3.3 lbs / 1.5 kg
Z10 POS Stand: 2.4 lbs / 1.1 kg

Weight (Packaged)

I-Series 5 Slate: 7.6 lbs / 3.5 kg
Z10 POS Stand: 4.41 lbs / 2.0 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 50°C / -4°F to 122°F

Humidity

Operating: 20% to 80%
Storage: 10% to 90%

Regulatory approvals and declarations

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

Supported Countries

Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

Real-Time Clock

lithium coin cell battery

MTBF

50,000 hours demonstrated

Mounting Options

VESA 75mm / Z-Hinge

Warranty

2-year

Extended Service Options

I-Series 5 Slate
3 year OS 360 - Elo P/N: E897877
4 year OS 360 - Elo P/N: E898079
5 year OS 360 - Elo P/N: E898282
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

Z10 POS Stand
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547

OS Support

Bi-monthly Android security updates available with Elo OS 360 package.

Sealability

Touchscreen optically bonded to LCD

What's in the Box

I-Series 5 Slate
I-Series 5 Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Panhead screws in a plastic bag

Z10 POS Stand
Z10 POS Stand
2x M4 x 5 screws for attaching the head to the stand
4 x M4x18 screws for attaching an optional 0702L CFD display
1x Hex 4X108 Allen wrench for adjusting hinge torque
1x Back Cover for CFD
Quick Install Guide

Please note, the EloPOS Z10 is shipped in two boxes. One for the head and one for the stand.

Stands, Mounts & Kits

I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492
0702L - Elo P/N: E796382
