EloPOS Z30 with Intel.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and your choice of Windows 10, ChromeOS Flex and Linux, the EloPOS Z30 brings one of the sleekest form factors to the market.

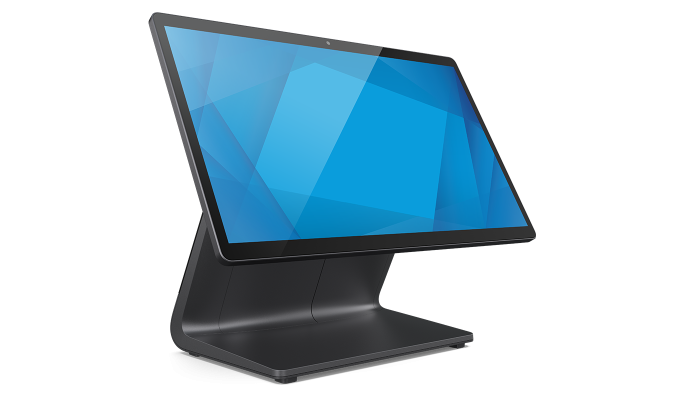

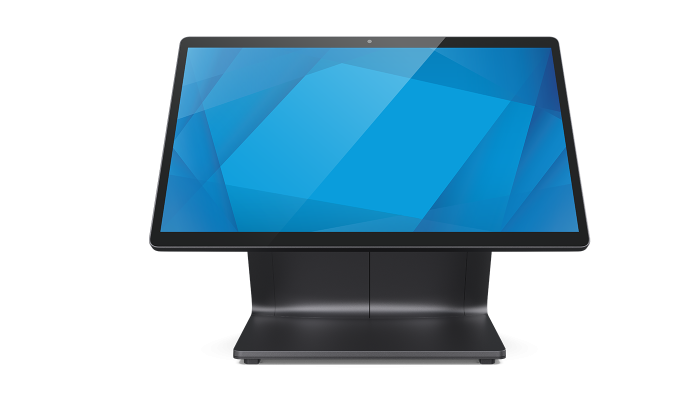

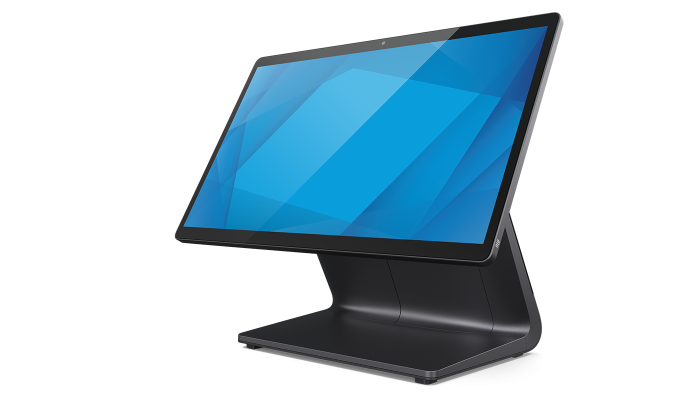

Powerful Touchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.
Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.

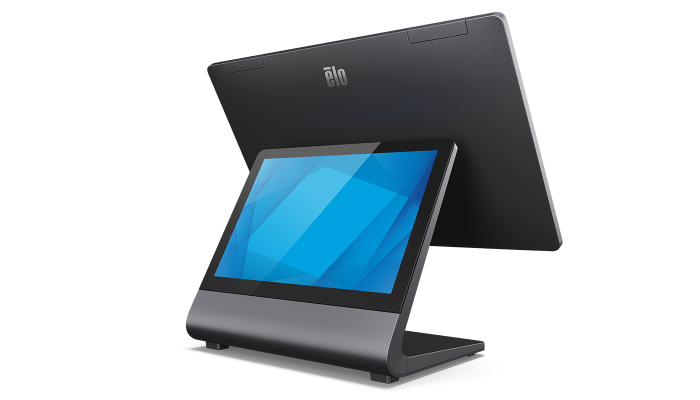

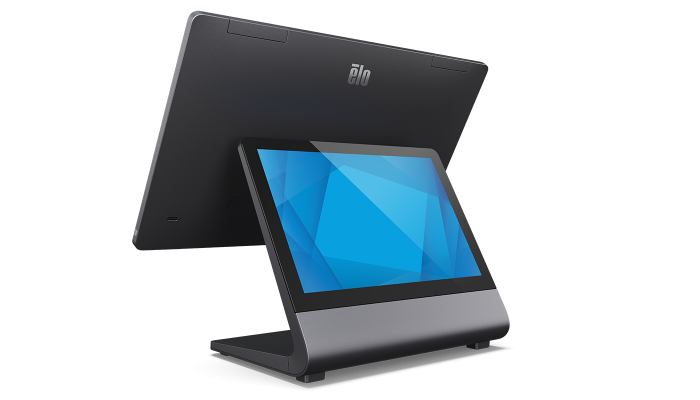

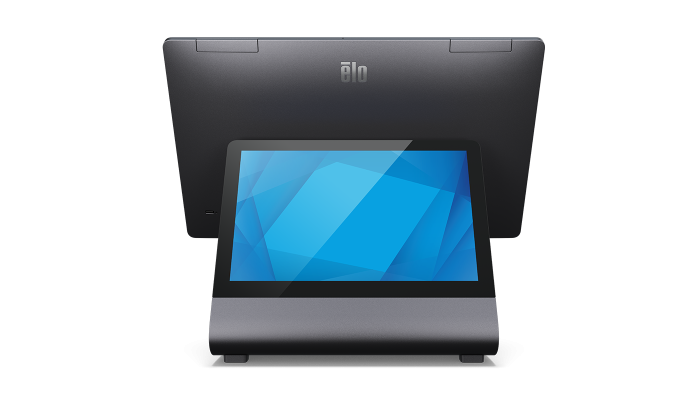

Interactive display for customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
Image shown with optional CFD
Secure it.
The Z30 is designed to stay in place
without being secured, but if
permanent mounting is required,
easily affix your POS terminal to any
counter or surface.
Commercial-grade performance.
Built with the reliability-tested performance and
security of Intel 11th Generation processors and
integrated Trusted Platform Modules, the EloPOS
Z30 delivers the dependability businesses need.
Elo Bridge
Bridge the gap between
Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Learn moreGet peace of mind
with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Retailers across the globe rely on Elo's POS Solutions everyday.
Your success is our success. We work side-by-side to help ensure selection, deployment and updates are executed properly so you can focus on your business.
Specifications
-
Technical
Part Number(s)
EloPOS Z30, No OS, with CFD: E984463
EloPOS Z30, Windows 10, with CFD: E984657
EloPOS Z30, No OS, without CFD: E984089
EloPOS Z30, Windows 10, without CFD: E984275Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Intel Elkhart Lake J6426
Graphics
Intel UHD Graphics
BIOS
AMI
Memory (RAM)
8GB 3200MHz DDR4 SO-DIMM on 1 slot
(Expandable to 32 GB maximum on 1 slot)Storage
128GB M.2 NVME SSD
(GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less)OS
No OS
Windows 10 IoT Enterprise LTSC 64-bitOS Languages
Windows 10 – 36 Language groups
Control Buttons
Power button
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
16.2 million
Brightness (typical)
LCD Panel: 300 nits
TouchPro PCAP: 255 nitsResponse Time-total (typical)
25 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
I/O ports on display:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/40W USB-C Power Delivery 2.0 if not using IO Hub for power)
I/O ports on stand:
DC in Jack
4x USB3.0
LAN RJ45 (Gigabit) (wo Wake on Lan at S5 support)
RJ12 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by BIOS)
Powered USB 24V
Full-function USB-C (Power up to 27W, USB 3.0, Display Port) (non-CFD model only)Integrated Customer-Facing Display
Size - 10.1 inch
Resolution - 1200 x 1920
Active Display Area - 5.33" x 8.53" / 135.36 mm x 216.58 mm
Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits
Number of Colors - 8-bit (16.7M)
Touch Technology - TouchPro PCAP
Sealing - Touchscreen sealed to LCD
Number of Touches - 10Webcam
8MP
Max Resolution: 1920x1080 30fps
Auto FocusWireless
802.11 a/b/g/n/ac/ax 2.4GHz and 5GHz and 6GHz
Bluetooth
Bluetooth 5.2
Antenna
2T2R design
Microphone
Digital Microphone
Speakers
2x 2W internal speakers
Trusted Platform Module (TPM)
TPM 2.0
Power Supply
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 150WPower Consumption (Typical)
ON With CFD: 40W
ON Without CFD: 32W
SLEEP: <2.0W
OFF: <0.5WDimensions
14.3" x 17.6" x 7.10" / 362.8 mm x 298.7 mm x 180.4 mm
Shipping Box Dimensions
18.11" x 10.63" x 15.71" / 460 mm x 270 mm x 399 mm
Weight (Unpackaged)
8.8 lbs / 4 kg
Weight (Packaged)
14.1 lbs / 6.4 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 10% to 90%
Storage: 0% to 95% (38.7℃ max wet bulb temperature)Compliance
TAA Compliant
MTBF
50,000 hours demonstrated
Regulatory approvals and declarations
UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
Real-Time Clock
CR2450 lithium metal battery
Warranty
3-year
Extended Service Options
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582What's in the Box
EloPOS Z30
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2x Zip Ties
M4x8 flat head screw
2x M4x6 mm Flat head screw (Backup)
Base Plate – for mounting to a countertopStands, Mounts & Kits
0702L - Elo P/N: E796382
1002L - Elo P/N: E155834
1002L - Elo P/N: E324341
1302L - Elo P/N: E683595
1502L - Elo P/N: E125496
