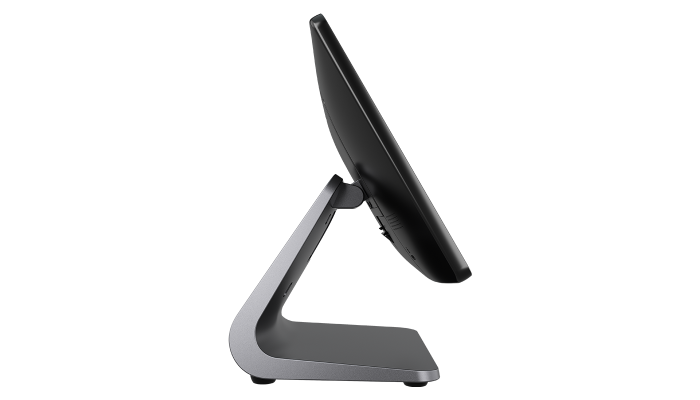

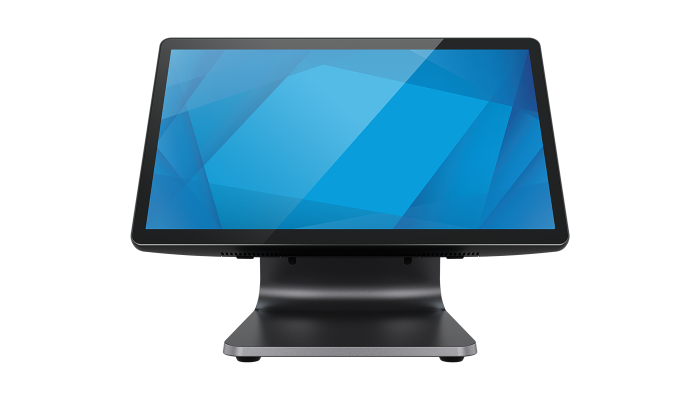

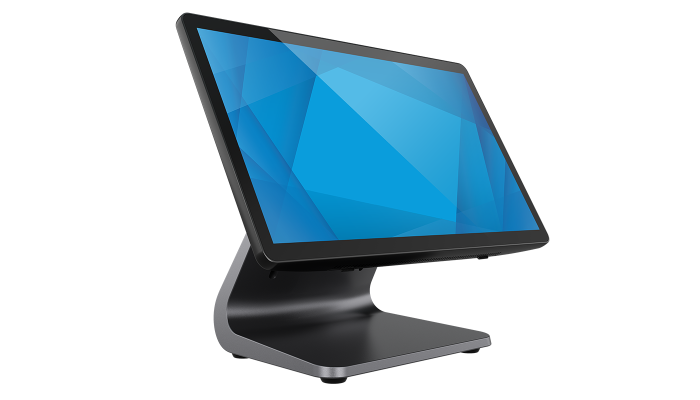

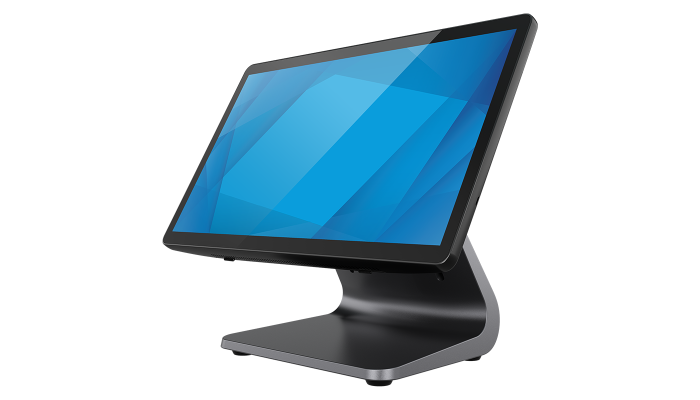

E-Series 3 with Intel
Touchscreen Computer.
The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP
display, a powerful Intel® N97 processor, and your choice of Windows 11 or No OS
with support for Linux. With integrated connectivity for all the peripherals you need—cash
drawers, printers, barcode scanners, and payment devices—the E-Series 3 delivers
the I/O flexibility to support a wide range of use cases.
Modular design.
Endless versatility.
Available with and without stand options, you can easily
configure the E-Series to fit the needs of your business -
from signage and point-of-sale to self-service,
automation controls and more.
Add a customer-
facing display.
The E-Series 3 includes USB-C connectivity, allowing
you to easily connect a customer-facing display - providing
touch, data and power with just one cable.
Expand with Elo
Edge Connect.™
Seamlessly attach up to two peripherals to the edge of
the touchscreen creating a bespoke solution. And, you
can add or move them later as your needs change!
Enhanced connectivity
for all your accessories.
- 1x USB-C full function
- 1x Gigabit LAN
- 2x USB 3.0
- 2x USB 2.0
- 2x Micro-USB 2.0 Edge Connect
- 2x Powered RJ45 Serial
- 1x 12V/24V Cash Drawer
- 1x Audio Port
Support
for Linux.
For added flexibility, the E-Series 3 offers no
OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.
Quality that
is built to last.
We engineer each product with a goal
that goes beyond meeting expectations;
we aim to exceed them. By integrating
our technology into your operations,
you are partnering with us - and as your
partner, we are committed to delivering
reliable products so you can focus on
growth and innovation, confident in the
knowledge that we stand behind our
products, ready to support you every
step of the way.
Get peace of mind
with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Specifications
-
Technical
Part Number(s)
No OS, 8GB RAM, 128GB SSD, WiFi, Stand - E850098
Win 11, 8GB RAM, 128GB SSD, WiFi, Stand - E849902
No OS, 8GB RAM, 128GB SSD, Stand - E850312
Win 11, 8GB RAM, 128GB SSD, Stand - E849711
No OS, 8GB RAM, 128GB SSD, WiFi, No Stand - E567394
Win 11, 8GB RAM, 128GB SSD, WiFi, No Stand - E567592
No OS, 16GB RAM, 256GB SSD, WiFi, Stand - E153661
Win 11, 16GB RAM, 256GB SSD, WiFi, Stand - E153259
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Intel® Celeron® Processor N97 (6M Smart Cache, up to 3.60 GHz)
Graphics
Intel UHD Graphics
BIOS
AMI
Memory (RAM)
8GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum on 1 slot)
Storage
128GB M.2 PCIe (NVMe) SSD3, 80 TBW
256GB M.2 PCIe (NVMe) SSD3, 160 TBW
3GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.TPM
Intel® Platform Trust Technology(Intel® PTT)
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
262,000
Brightness (typical)
LCD Panel: 200 nits
PCAP: 170 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
500:1
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
I/O Ports
1x RJ45 LAN (Gigabit) Port
2x USB 3.0 Ports
2x USB 2.0 Ports
2x Micro USB 2.0 Ports for Elo Edge Connect peripherals(Right/Bottom)
2x RJ45 Serial Port
1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)Wireless
802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth
Bluetooth 5.3
Speakers
2 x 2W internal speakers
OS
No OS
Windows 11 IoT Enterprise LTSC 64-bitLanguages
Windows 11 - 36 Language groups
Power Supply
External 19VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 90WPower Consumption (Typical)
On: <30W
Sleep: < 2W
Off: < 0.5WDimensions
With Stand: 14.56" x 7.19" x 11.75" / 370.4 mm x 182.6 mm x 298.4 mm
Without Stand: 14.56" x 1.59" x 8.98" / 370.4 mm x 40.5mm x 228.2 mmShipping Box Dimensions
With Stand: 18.3" x 10.3" x 14.8" / 465 mm x 262 mm x 376 mm
Without Stand: 18.4" x 7.3" x 12.4" / 466 mm x 185 mm x 316 mmWeight (Unpackaged)
With Stand: 7 lbs / 3.2 kg
Without Stand: 5.29 lbs / 2.4 kgWeight (Packaged)
With Stand: 11 lbs / 5.0 kg
Without Stand: 9.2 lbs / 4.2 kgOperating Temperature
0°C to 35°C / 32°F to 95°F (The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition.)
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)Regulatory approvals and declarations
Canada cUL, IC
United States UL, FCC
Germany, TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Mexico NOM
RoHS CoCReal-Time Clock
CR2032 lithium metal battery
MTBF
50,000 hours demonstrated
Mounting Options
75mm VESA mount
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
North American and European power cables included
Other Features
Serviceable internal components.
Kensington lock.What's in the Box
E-Series 3
North America Power Cord
EU Power Cord
Power Adapter – 90W
Series Port Cable RJ-45 to DB-9
Quick Installation Guide (QIG)
Cable tieOptional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
10” Customer-facing Display – Elo P/N: E967935Stands, Mounts & Kits
Rear Facing Display Mount – Elo P/N: E997555
USB-C to USB-C Cable Kit – Elo P/N: E185034
75mm VESA Adapter – Elo P/N: E193547
