EloPOS Z30 with Android
How to buy

EloPOS Z30 for Android.

Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 14 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.

Order now

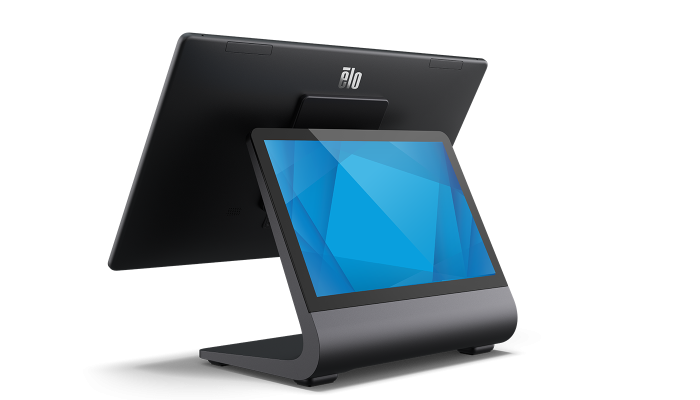

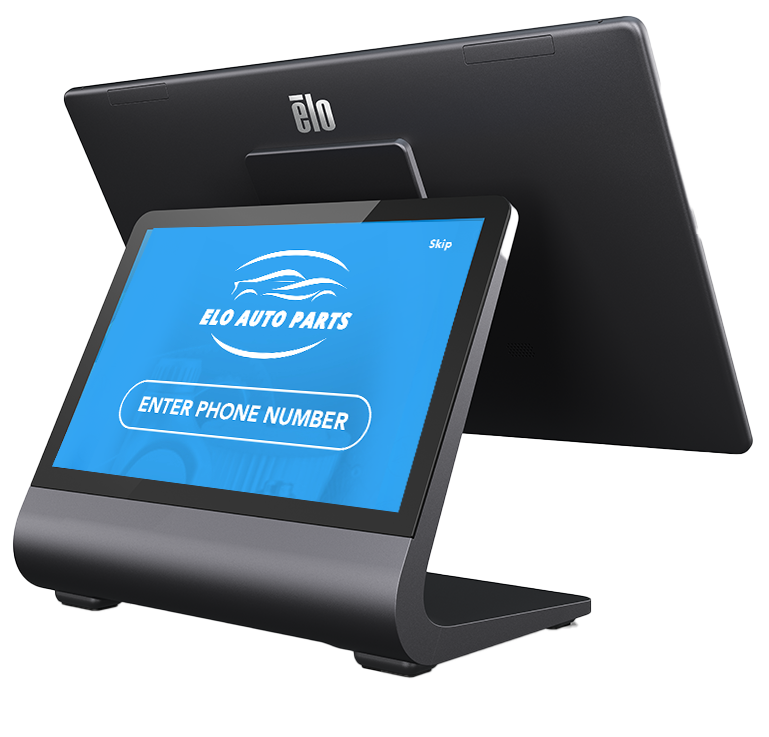

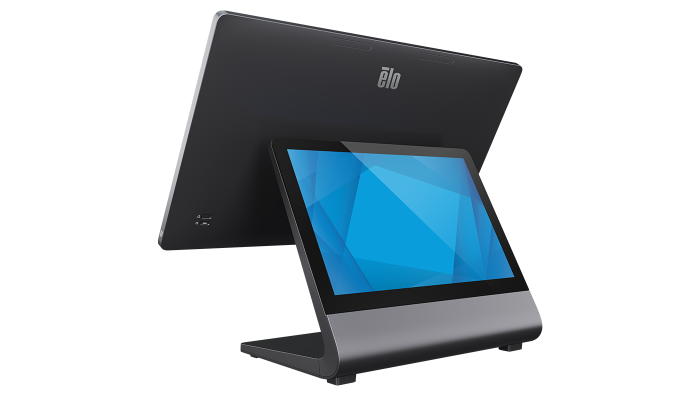

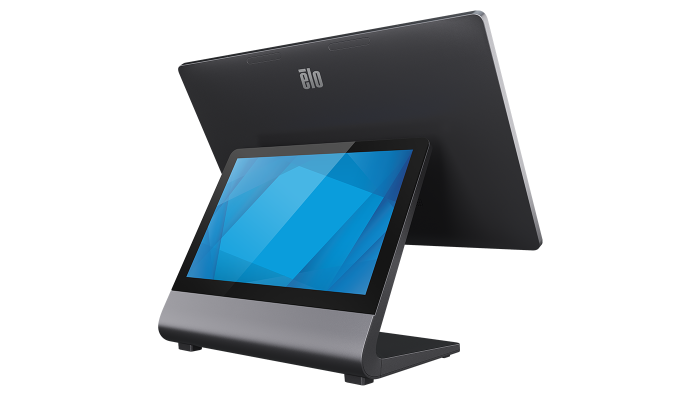

Image of a 15.6-inch EloPOS Z30 point-of-sale system showing the customer-facing display side

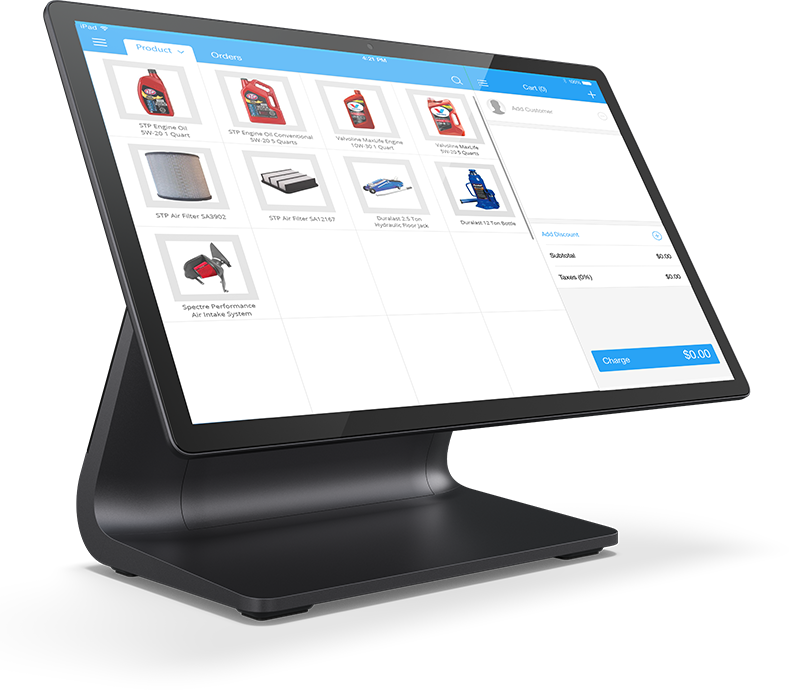

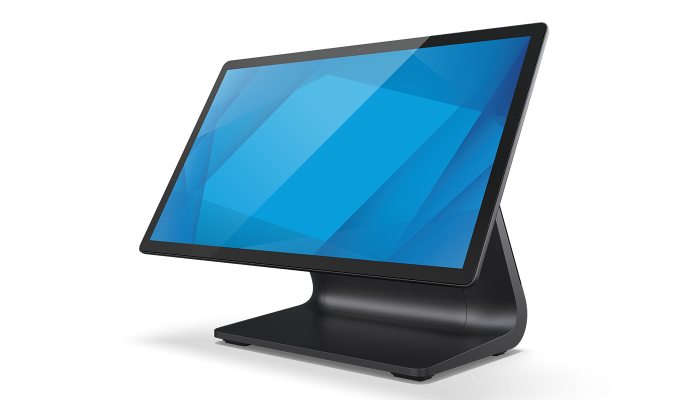

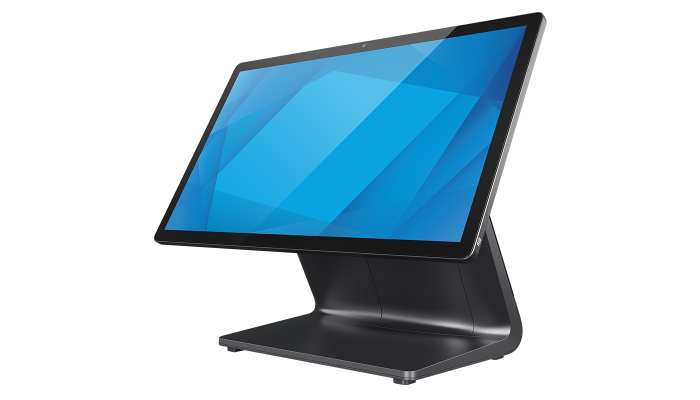

Image of a 15.6-inch EloPOS Z30 system showing the employee-facing display side

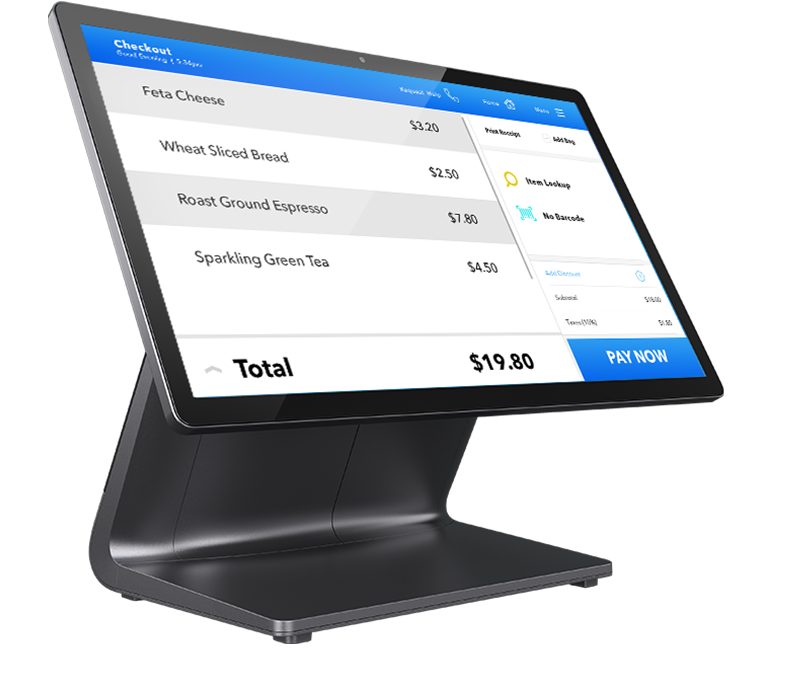

Powerful Touchscreen

The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.

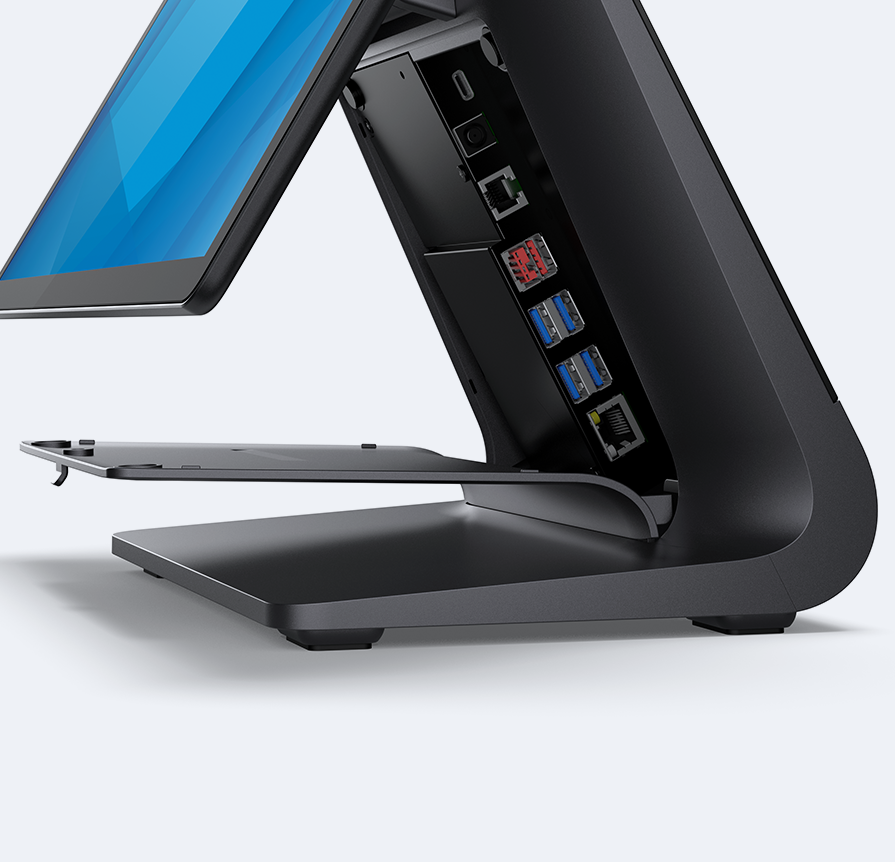

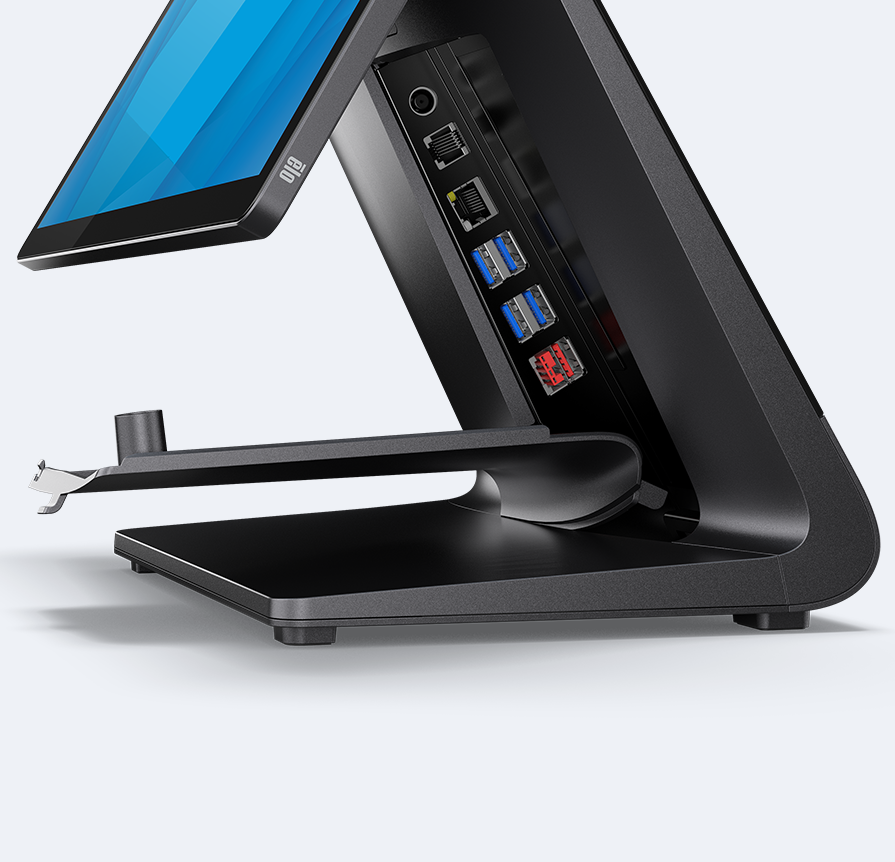

Image of an EloPOS Z30 system displaying a variety of input/output ports

Integrated I/O From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.

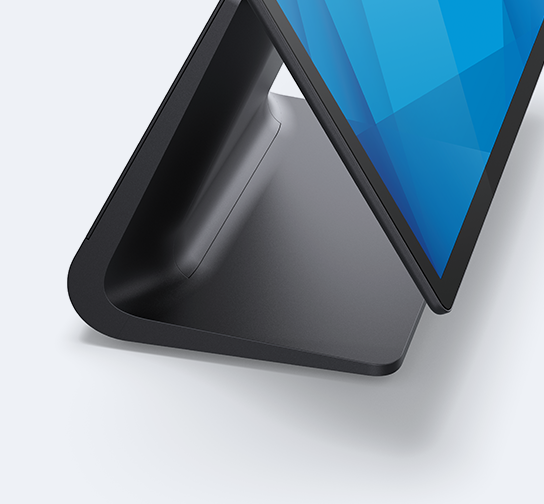

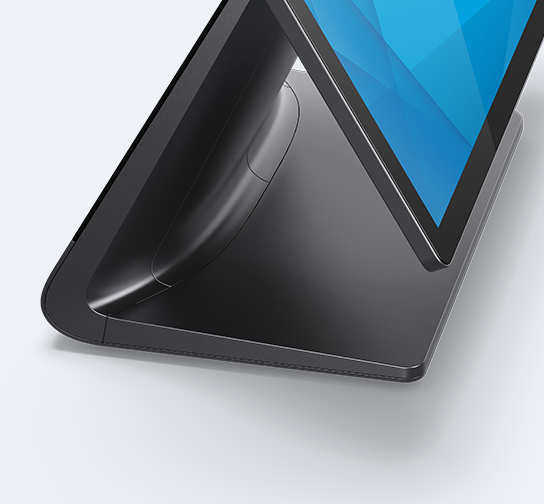

Image of EloPOS Z30 stand with integrated cable routing system

Conceal Your Cables Keep your counter clean with the
integrated cable routing system.

Image of white USB-C cable end

Single Cable Connection Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.

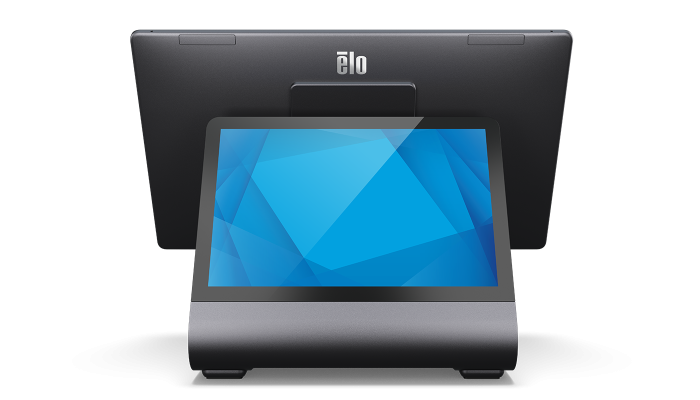

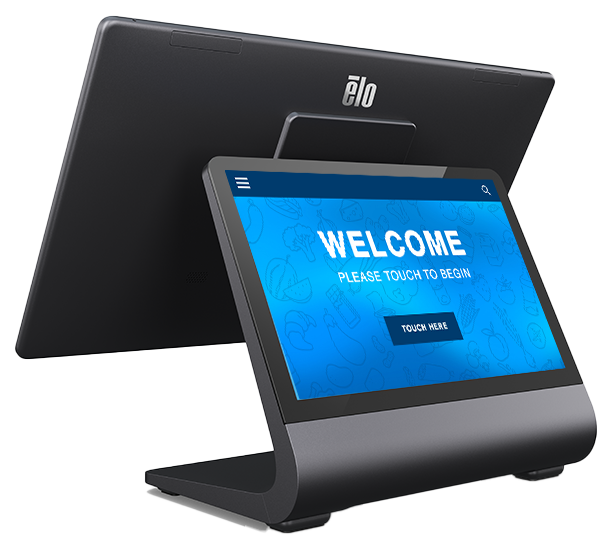

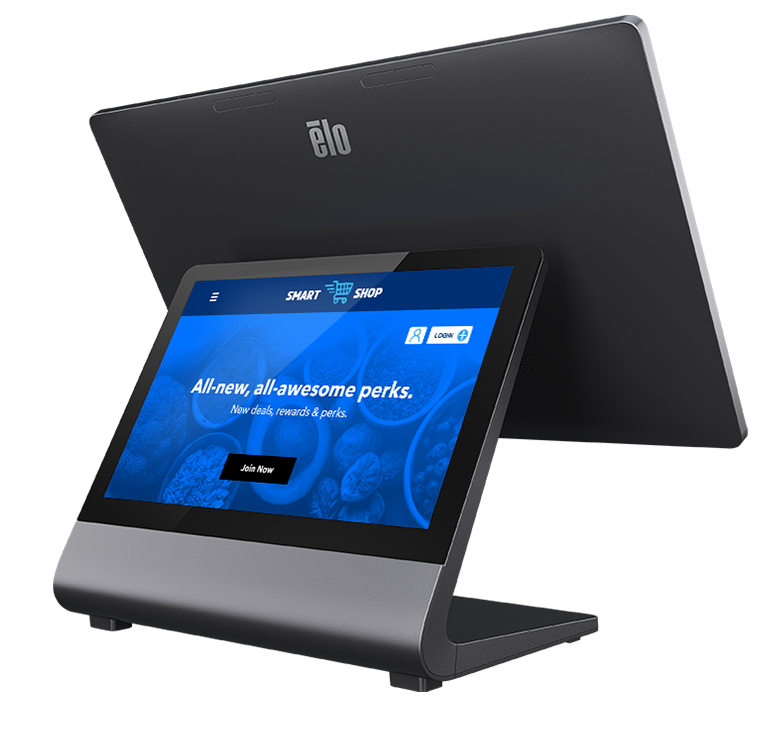

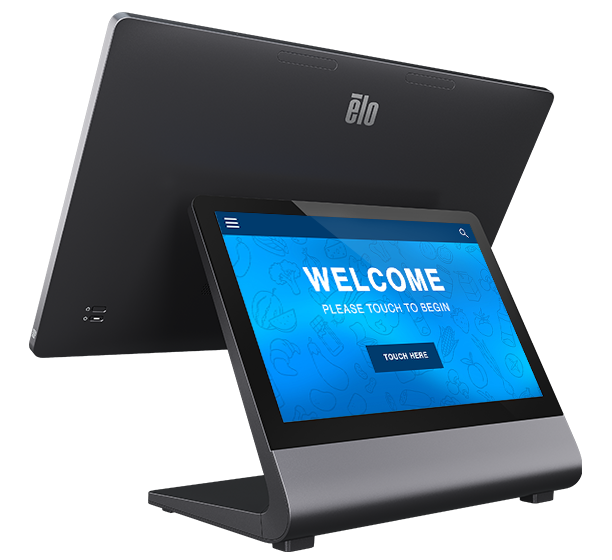

Image of an EloPOS Z30 system showing the customer-facing touchscreen display

Interactive display for customers.

With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.

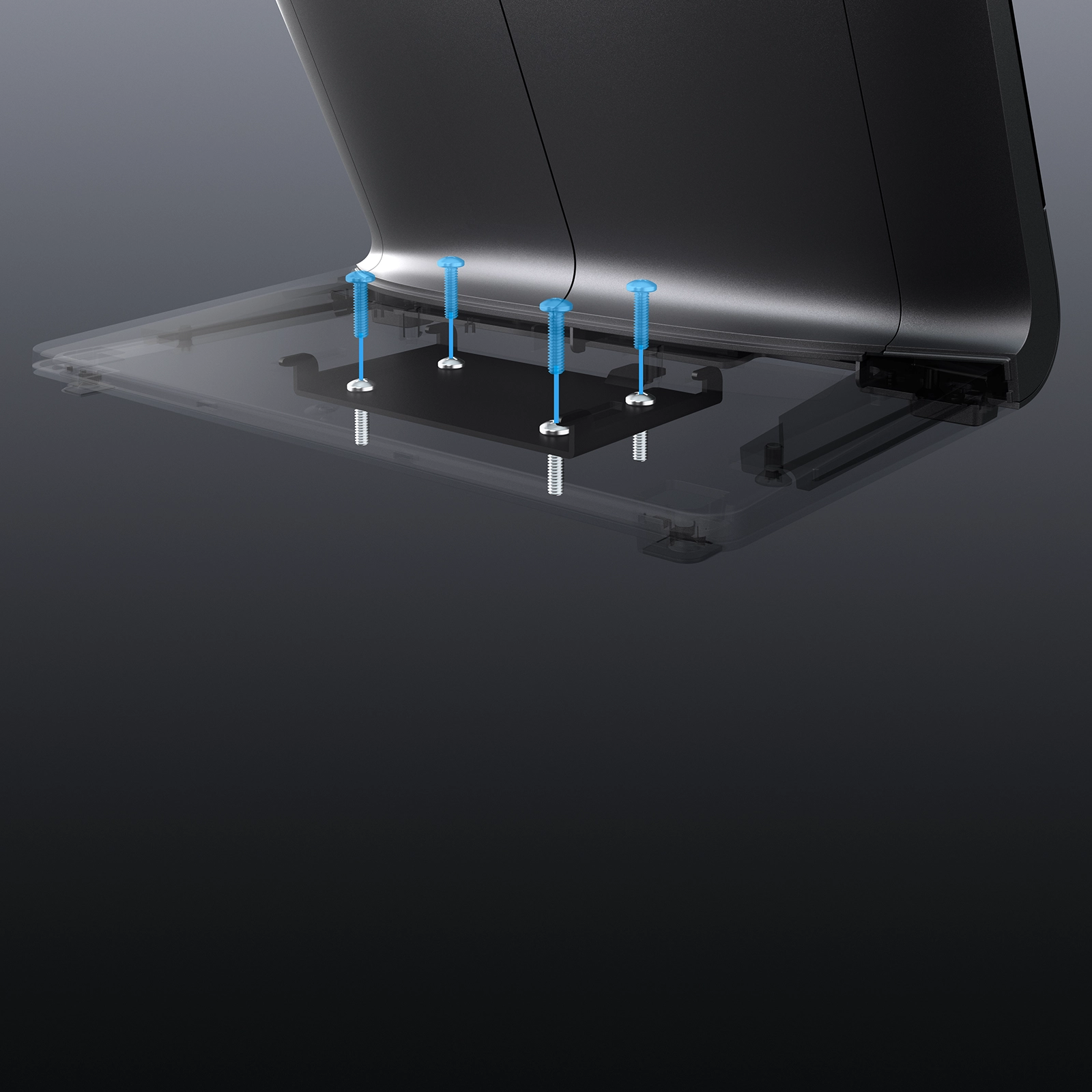

Image of EloPOS Z30 weighted plate showing four screw placements for affixing

Secure it.

The Z30 is designed to stay in place
without being secured, but if
permanent mounting is required,
easily affix your POS terminal to any
counter or surface.

Create your perfect POS system.

From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.

I/O EloPOS Z10 EloPOS Z20 EloPOS Z30
Ethernet
4x USB-A 3.0
Cash Drawer Port*
24V powered USB
USB-C
Edge Connect Ports**
Main Display
I-Series 4 & 5
I-Series Slate
Secondary Display
Integrated
Mount for CFD

*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only

EloPOS Z10

Forward facing image of EloPOS Z10 employee-facing touchscreen display
Compatible with the 15‑inch I‑Series Slate

I/O

  • Ethernet

  • 4x USB-A 3.0

Secondary Display

  • Optional 7-inch CFD.

Explore EloPOS Z10

EloPOS Z20

Forward facing image of EloPOS Z20 employee-facing touchscreen display
Compatible with the 10‑ & 15‑inch I‑Series 4 & 5

I/O

  • Ethernet

  • 4x USB-A 3.0

  • Cash Drawer Port*

  • USB‑C

  • Edge Connect Ports**

Secondary Display

  • Optional 10‑, 13‑ or 15‑inch CFD.***

Explore EloPOS Z20

EloPOS Z30

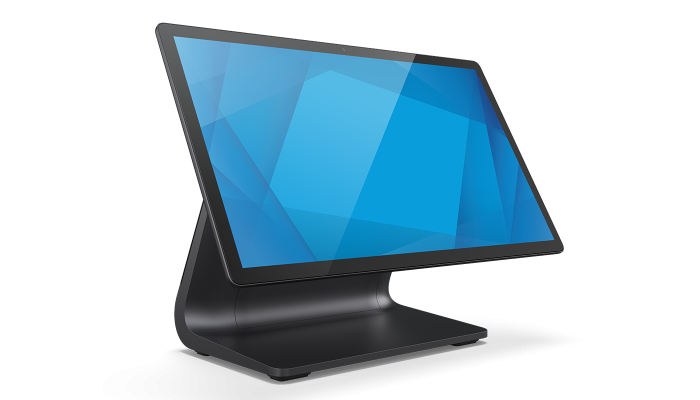

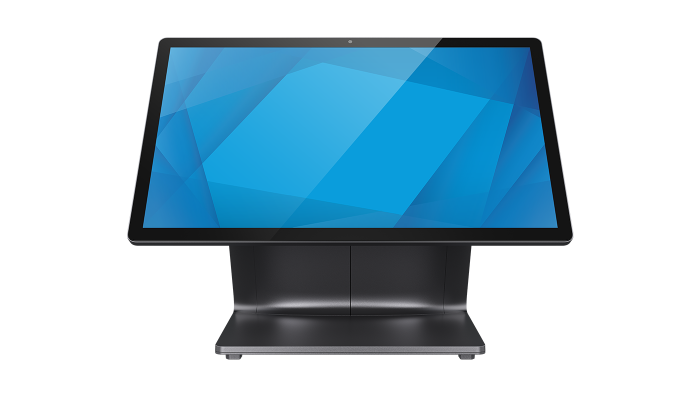

Forward facing image of EloPOS Z30 employee-facing touchscreen display
Compatible with the 15‑inch I‑Series Slate.

I/O

  • Ethernet

  • 4x USB-A 3.0

  • Cash Drawer Port*

  • 24V powered USB

  • USB‑C (non-CFD model)

Secondary Display

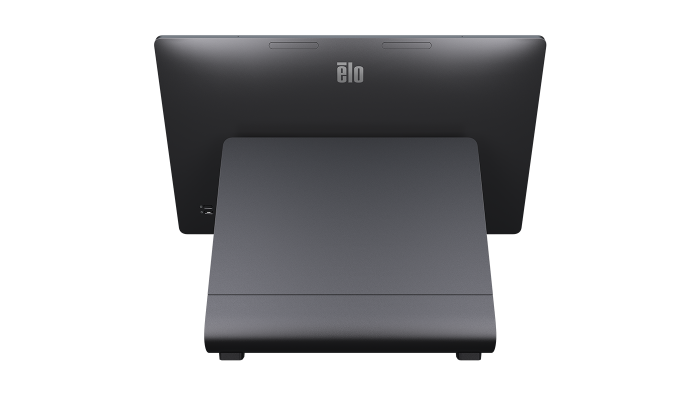

  • Choose integrated CFD; or no CFD in stand.

Explore EloPOS Z30

*RJ12 (serial/cash drawer) **On I‑Series 4 & 5 ***CFD on 15" model only

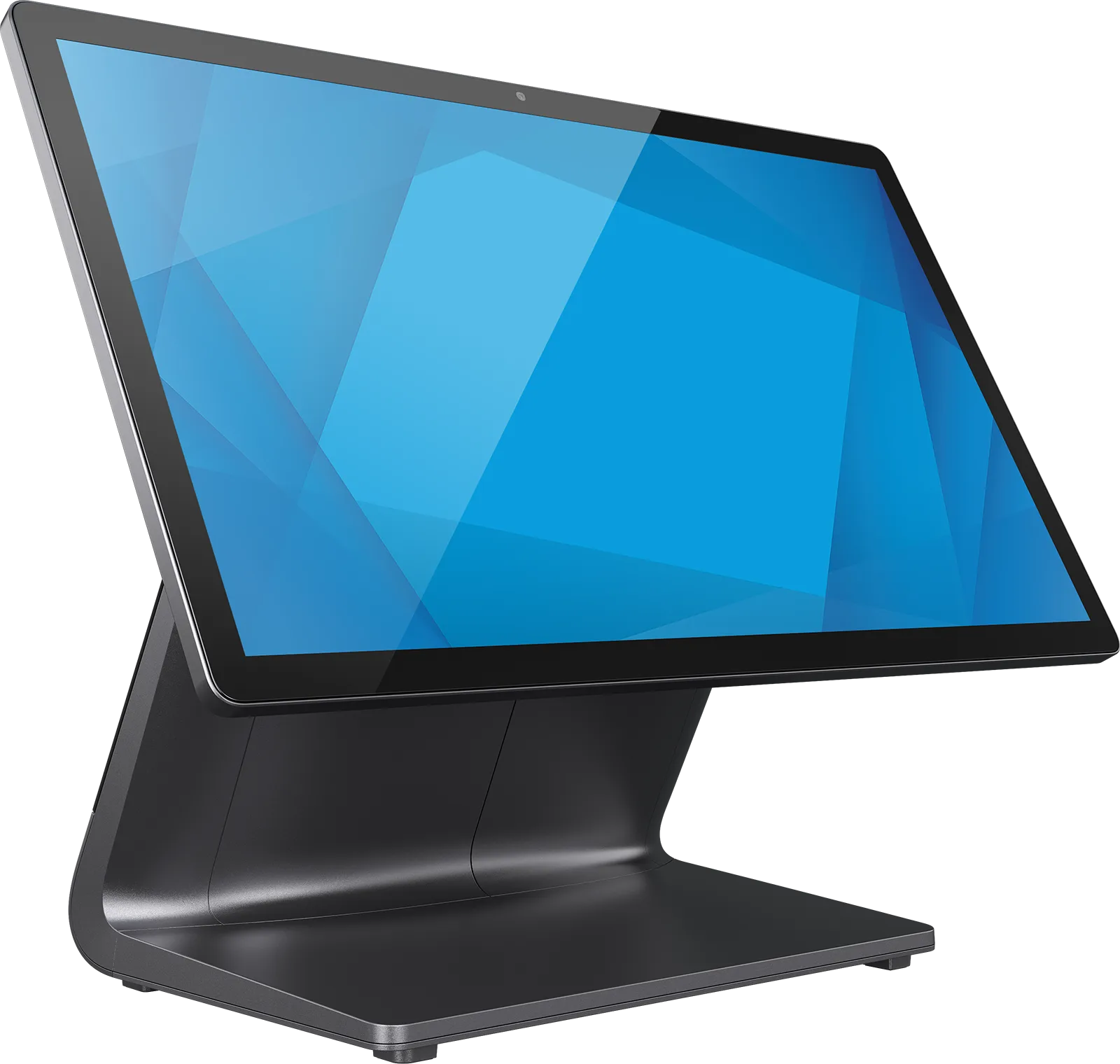

Image of EloPOS Z30 for Android employee-facing touchscreen display

Get enterprise
support
with Elo
EssentialEdge.™

With easy-to-use development kits, robust management tools, world
class life cycle management and security, Elo can help you deliver the
convenience and familiarity of Android interfaces in a secure, business-
friendly way.

  1. OS 360 - Take advantage of monthly security updates to keep your
    devices secure.
  2. Seamless Provisioning - Leverage EloView or Google Zero Touch to
    easily set up your device.
  3. Elo OEMConfig - Get Elo's proprietary APIs on your preferred Android
    MDM platform, saving months of effort as new releases become available.
Explore Elo EssentialEdge

Commercial-grade
performance.

The EloPOS Z30 is backed by the powerful
Qualcomm 6490 octa-core processor
to deliver the performance
businesses need.

Image of Qualcomm 6490 octa-core processor chip demonstrating premium-tier features and IoT optimization

Expand possibilities
with Applied AI.

The Qualcomm 6490 chipset offers a fused AI accelerator,
enabling astonishing performance at low power. These
features and more produce a combined AI performance
of up to 12 TOPS.

Manage your devices
easily with EloView.®

EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.

  1. Remotely deploy content and manage
    your devices securely.
  2. Provision your devices in seconds with a
    seamless out-of-the-box experience.
  3. Leverage Elo Home to create a
    customized interface on your Elo device.
Explore EloView
Image of EloView dashboard homepage

Google Mobile
Services Ready.

With Google Mobile Services and EloView, managing Android devices and your apps is
simplified. You can remotely deploy and manage your device, adjust detailed settings, and
take advantage of the latest Google-powered features. Not only does this make
management easier, but it also ensures your Elo devices meet the high standards required
for Google CTS verification, giving you peace of mind.

Get peace of mind
with EloCare.SM

From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.

  1. Advance Unit Replacement
  2. Accidental Damage Protection
  3. Extended Warranty
  4. OS 360
Learn more

Quality that
is built to last.

We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.

Learn more

Retailers across the globe rely on Elo's POS Solutions everyday.

Your success is our success. We work side-by-side to help ensure selection, deployment and updates are executed properly so you can focus on your business.

Configure your point of sale system today

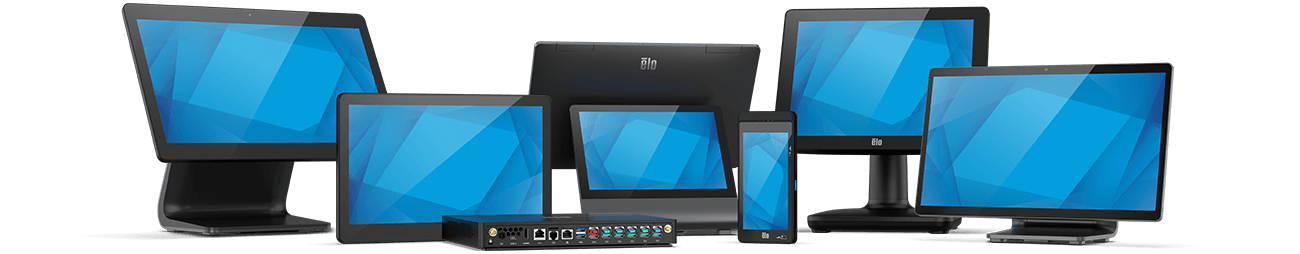

Image of Elo's different touchscreen POS systems for Android

Specifications

  • Technical

    Part Number(s)

    EloPOS Z30 with CFD: E543591
    EloPOS Z30 without CFD: E543398

    Enclosure Color

    Dark Gray Metallic

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Qualcomm Snapdragon QCS6490

    Memory (RAM)

    8GB

    Storage

    64GB

    OS

    Android 14 with Google Play Services (AOSP capable)
    Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344 mm x 194 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    8-bit (16.7 million)

    Brightness (typical)

    350 nits
    TouchPro PCAP: 280 nits

    Response Time-total (typical)

    20 ms

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    I/O Ports

    DC Input
    4 x USB-A 3.0 (900mA)
    RJ45 Ethernet LAN (Gigabit)
    RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode
    Powered USB 24V
    USB-C output - CFD (DisplayPort, touch and power delivery up to 27W)

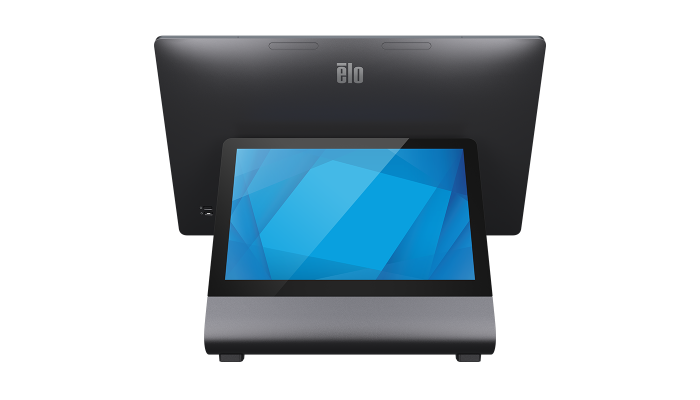

    Integrated Customer-Facing Display

    Size -10.1 inch
    Resolution - 1920 x 1200 @ 60 Hz
    Active Display Area (H x V) - 8.53" x 5.33" / 216.58 mm x 135.36 mm
    Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
    Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits
    Number of Colors - 8-bit (16.7M)
    Touch Technology - TouchPro PCAP
    Sealing - Touchscreen sealed to LCD
    Number of Touches - 10

    Webcam

    8MP
    Max Resolution: 3200x2400 30fps
    Auto Focus

    Wireless

    802.11a/b/g/n/ac/ax + Bluetooth 5.2

    Audio Ports

    2x built-in Digital Microphones

    Speakers

    2x 1W

    Power Supply

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    With CFD:
    On: 18W
    Off: < 0.5W
    Sleep: 13W

    Without CFD:
    On: 12W
    Off: < 0.5W
    Sleep: 7W

    Dimensions

    11.6" x 7.4" x 14.6" / 294 mm x 188 mm x 371 mm

    Shipping Box Dimensions

    18.22" x 11.22" x 17.64" / 463 mm x 285 x 448 mm

    Weight (Unpackaged)

    9.6 lbs / 4.4 kg

    Weight (Packaged)

    17.1 lbs / 7.75 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Regulatory approvals and declarations

    UL/cUL (US)
    FCC (US) Class B
    IC (Canada)
    CE (Europe)
    CB (International)
    VCCI, MIC (Japan)
    RCM (Australia)

    Supported Countries

    Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Warranty

    2-year

    Extended Service Options

    3 year OS 360 - Elo P/N: E897877
    4 year OS 360 - Elo P/N: E898079
    5 year OS 360 - Elo P/N: E898282
    3 year Warranty Coverage – Elo P/N: E819394
    4 year Warranty Coverage – Elo P/N: E819598
    5 year Warranty Coverage – Elo P/N: E819795
    3 year Warranty Coverage + ADP – Elo P/N: E130329
    4 year Warranty Coverage + ADP – Elo P/N: E130530
    5 year Warranty Coverage + ADP – Elo P/N: E130719
    2 year Warranty Coverage + AUR – Elo P/N: E819985
    3 year Warranty Coverage + AUR – Elo P/N: E820186
    4 year Warranty Coverage + AUR – Elo P/N: E820388
    5 year Warranty Coverage + AUR – Elo P/N: E820582
    2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
    3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
    4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
    5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

    OS Support

    Bi-monthly Android security updates available with Elo OS 360 package.

    Sealability

    Touchscreen optically bonded to LCD

    What's in the Box

    EloPOS Z30
    North American Power Cable
    European Power Cable
    Quick Install Guide
    150W Power Brick
    2 x Zip Ties
    1 x M4x8 mm screw in a plastic bag
    Base Plate – for mounting to a countertop

    Stands, Mounts & Kits

    0702L - Elo P/N: E796382
    1002L - Elo P/N: E155834
    1002L - Elo P/N: E324341
    1302L - Elo P/N: E683595
    1502L - Elo P/N: E125496
