3243L Open Frame Touchscreen PCAP (Replaced by 3243L IntelliTouch)
This product has been replaced by the - 3243L.
Overview

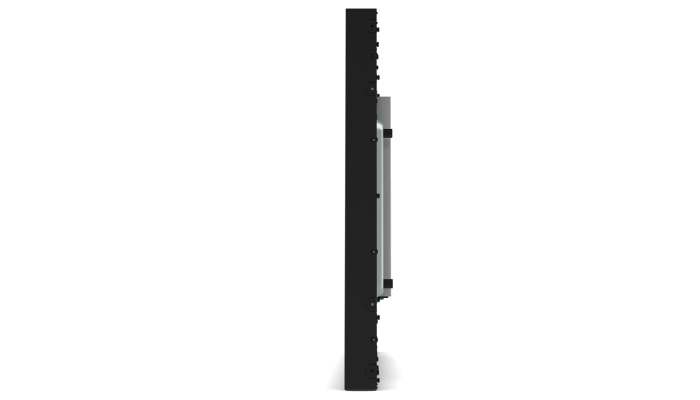

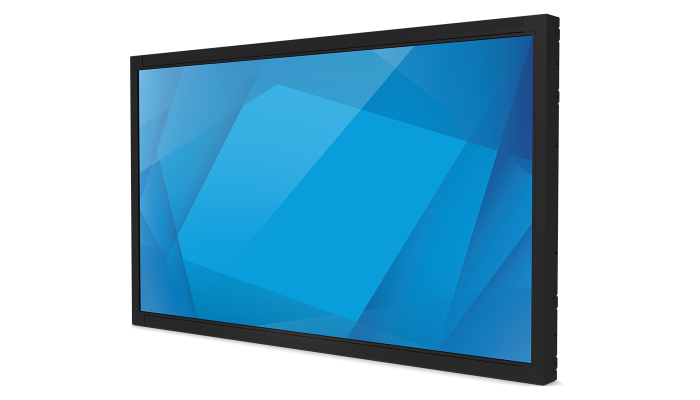

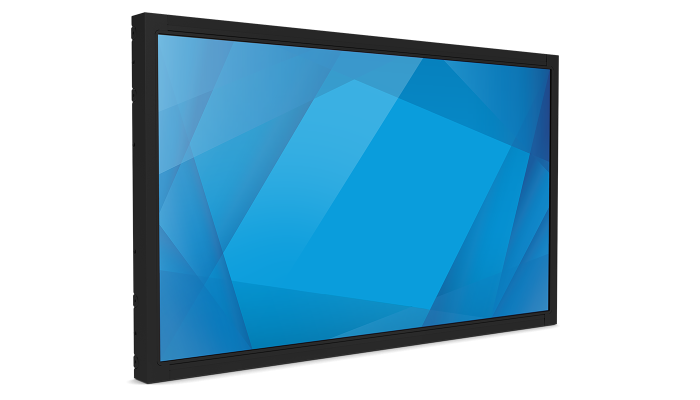

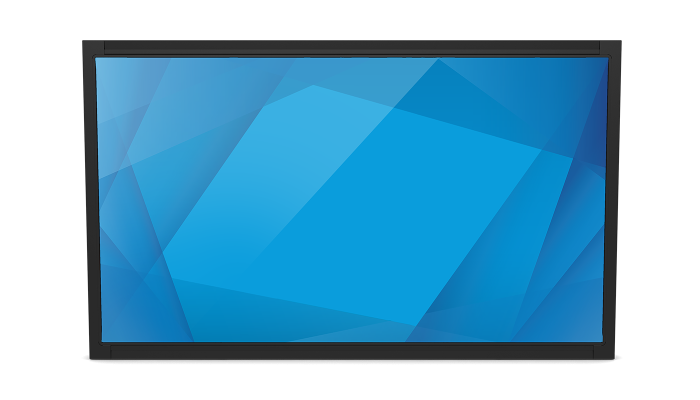

The Elo 3243L 32-inch full HD open-frame touchscreen delivers a professional-grade large-format display and sleek design at less than 2.3 inches (58 mm) in total thickness. Designed for touch from the start with proven Elo expertise and reliability built in, the 3243L offers a state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The comprehensive range of features includes analog and digital interfaces, multi-lingual and cabled remote on-screen display (OSD), mounting VESA standard, mounting brackets, and worldwide compliance.
Easily integrated.Featuring a compact form factor and optional rack- and front-mount bezels, the 3243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. TouchPro® projected capacitive (PCAP) units offer clear anti-friction glass that can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected, helping minimize enclosure costs. |
 |
 |
Touch ready.The 3243L is available with a choice of dual- or multi-touch technologies. The zero-bezel TouchPro projective capacitive technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows 10 with up to 10 touches recognized simultaneously. The IntelliTouch® surface acoustic wave (SAW) dual touch technology offers the ultimate in optical quality. All 3243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to wear them out.
|
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
|
 |
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- Multiple mounting options are available
- TouchPro PCAP technology utilizes clear glass with anti-friction coating to provide a smooth smartphone like touch experience without surface tension.
- Worldwide agency approvals and a three-year standard warranty extendable to five years
- Integrated power supply
Specifications
-
Technical
Part Number(s)
TouchPro PCAP (clear with anti-friction) - E304029
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface
USB
Diagonal Size
31.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.Aspect Ratio
16:9
Active Area
27.57" x 15.54" / 700.4mm x 394.9mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024 x 768 at 60Hz
1280 x 720 at 60Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60Hz
1360 x 768 at 60 Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 500 nits
PCAP: 425 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
3000:1
Input Video Format
Analog VGA, HDCP-capable HDMI 1.3
Input Video Signal Connector
Female DE-15 VGA, HDMI Type A Receptacle Connector
Input Video Frequency
Horizontal: 31 - 75 KHz
Vertical: 47 - 63 HzPower Supply
Internal AC
Input Voltage
AC: 100-240 VAC, 50/60 Hz
Input Connector
AC: IEC 60320 C14
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
Monitor + AC/DC adapter
(Typical @ 120V at 60Hz):
ON: 47.9W
SLEEP: 0.9W
OFF: 0.1W
(Typical @ 230V at 50Hz):
ON: 47.1W
SLEEP: 1.0W
OFF: 0.1WDimensions
29.42" x 17.82" x 2.1" / 747.3mm x 452.7mm x 55mm
Shipping Box Dimensions
39.0" x 26.4" x 11.65" / 992mm x 672 mm x 296mm
Weight (Unpackaged)
24.6 lbs / 11.2 kg
Weight (Packaged)
39 lbs / 17.7 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330Regulatory approvals and declarations
Argentina S-Mark
Australia RCM
Canada cUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC e-standby
Mexico CoC
Russia EAC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE
United States UL 60950 ball-drop compliantMounting Options

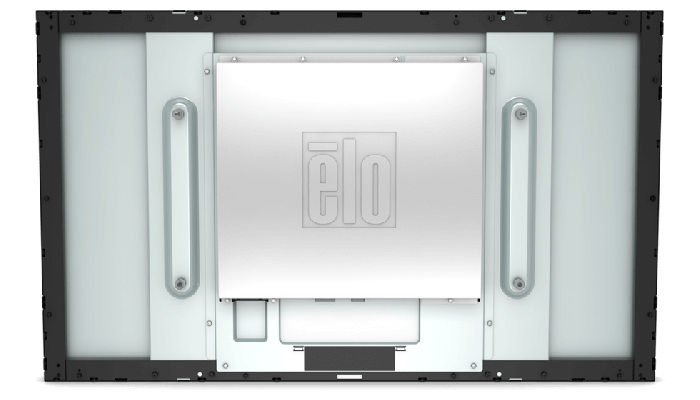

400mm x 200mm VESA 4-hole mounting interface on rear of unit
Side mounting brackets included (with IntelliTouch Dual Touch models only)What's in the Box
QIG (With Driver), Japan Kiosk Class A info, EEI Label, HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to NA plug, power cable, IEC 60320-C13 to EU/KR plug, power cable, IEC 60320-C13 to UK plug, power cable, IEC 60320-C13 to AR plug, power cable, IEC 60320-C13 to CH plug, power cable, IEC 60320-C13 to TW plug, power cable, IEC 60320-C13 to JP plug, 3-pin to 2-pin adapter for JP power cable
Options / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
Replacement Cable Kit - Elo P/N: E378229
Flushmount Kit for PCAP 3243 - Elo P/N: E312503Optional PCAP Stylus Pen
E066148
