15-inch I-Series 3 Slate with Intel®
How to buy

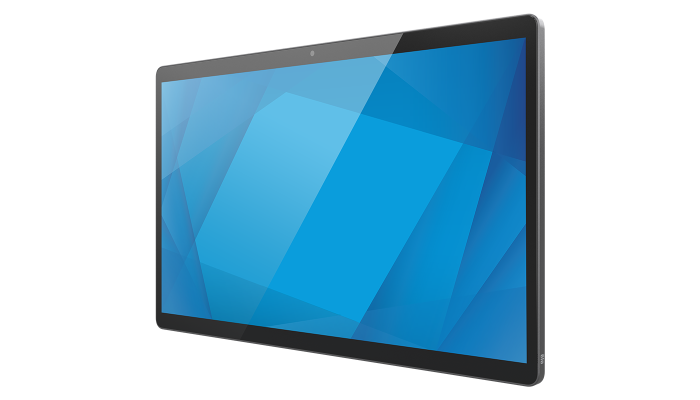

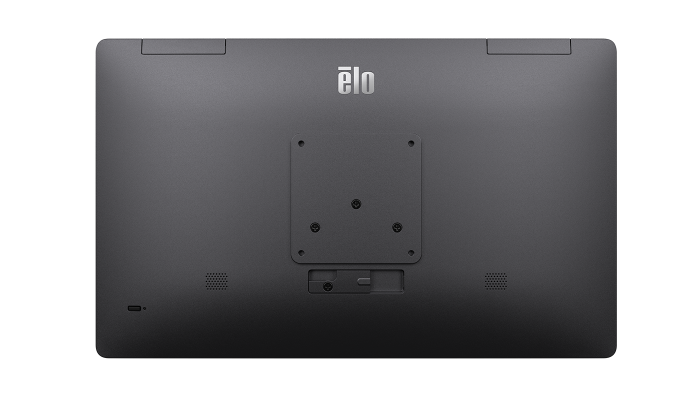

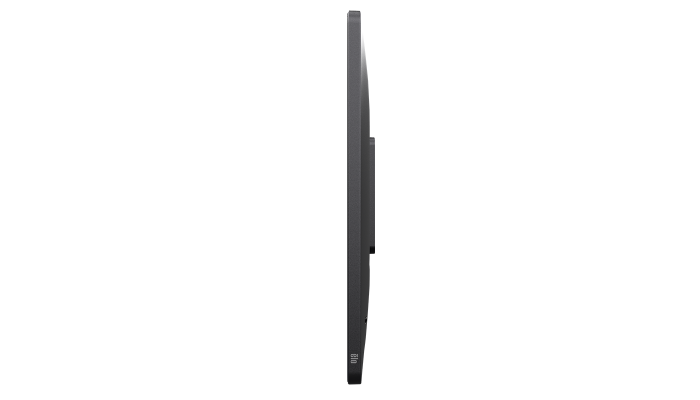

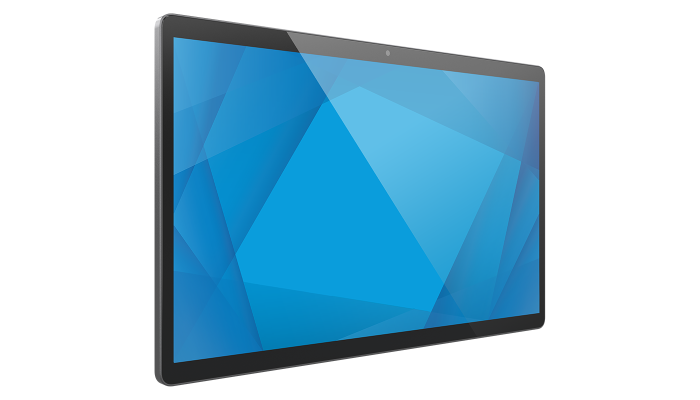

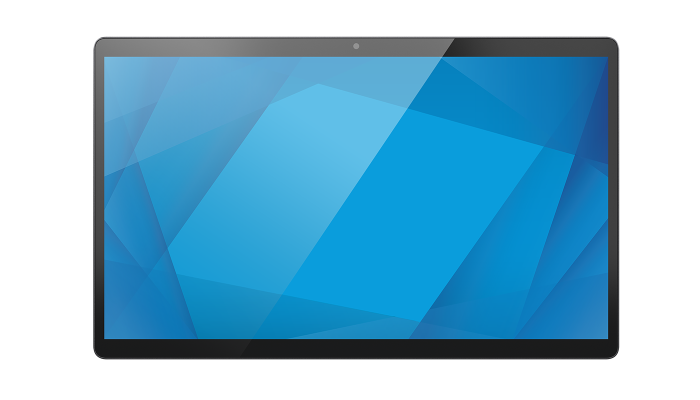

I-Series 3 Slate
with Intel®

Brilliant, beautiful
and razor thin.

Z10 stand sold separately.
  • 10-touch
    PCAP display
  • 14.8mm thin
  • Fanless &
    ventless
  • 8MP webcam

Interactive signage has
never looked so good.

Create your
POS system.

Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.

Reliable, security
and performance.

Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.

Support
for Linux.

For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.


Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Learn more

Get peace of mind
with EloCare.℠

  • Advance Unit Replacement
  • Extended Warranty
  • Professional Services
Learn more

Specifications

  • Technical

    Part Number(s)

    No OS, 8GB - E983676
    Win 10, 8GB - E983895
    Win 10, 16GB - E128434

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Intel Elkhart Lake J6426

    Graphics

    Intel UHD Graphics

    BIOS

    AMI

    Memory (RAM)

    8GB 3200MHz DDR4 SO-DIMM on 1 slot (Expandable to 32GB maximum on 1 slot)

    Storage

    128GB M.2 NVME SSD 72 TBW

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    TPM

    2.0

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.2 mm x 193.5 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 300 nits
    TouchPro PCAP: 255 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Webcam

    8MP
    Max Resolution: 1920x1080 30fps
    Auto Focus

    I/O Ports

    Display Head Interface:
    USB-C Connector
    Supports USB 2.0/3.0, DP output
    (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)

    I/O Hub:
    DC Input
    4 x USB-A 3.0
    RJ45 Ethernet LAN (Gigabit) (wo Wake on Lan at S5 support)

    Wireless

    802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

    Bluetooth

    Bluetooth 5.2

    Antenna

    2T2R design

    Microphone

    Digital Microphone

    Speakers

    2 x 2W internal speakers

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit

    Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 19VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 65W

    Power Consumption (Typical)

    ON: 30W
    SLEEP: <2.0W
    OFF: <0.5W

    Dimensions

    Without VESA Adapter: 14.3" x 8.8" x 0.6" / 362.8 mm x 223.4 mm x 15.3 mm
    With VESA adapter: 14.3" x 8.8" x 0.8" / 362.8 mm x 223.4 mm x 20.2 mm

    Shipping Box Dimensions

    18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm

    Weight (Unpackaged)

    3.53 lbs / 1.6 kg

    Weight (Packaged)

    8.81 lbs / 4 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 10% to 90%
    Storage: 0% to 95% (38.7°C max wet bulb temperature)

    Energy Star

    Energy Star 8.0

    Compliance

    TAA Compliant

    Regulatory approvals and declarations

    UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA

    Real-Time Clock

    CR2450 lithium metal battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75mm VESA mount

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    What's in the Box

    I Series Slate
    IO Hub
    North America Power Cord
    European Power Cord
    65W Power Adapter
    Quick Installation Guide (QIG)

Accessories

(2)

Upgrades, add-ons, and more.
Image of item

Z10 POS Stand

Image of item

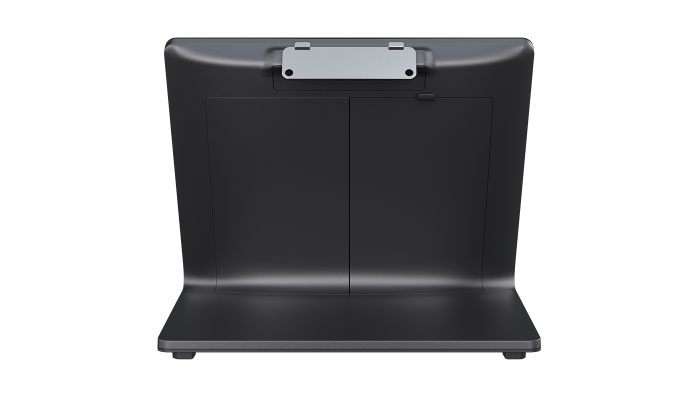

Z30 POS Stand
