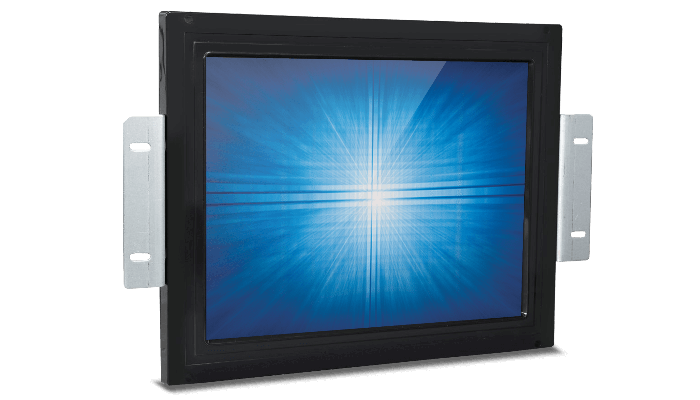

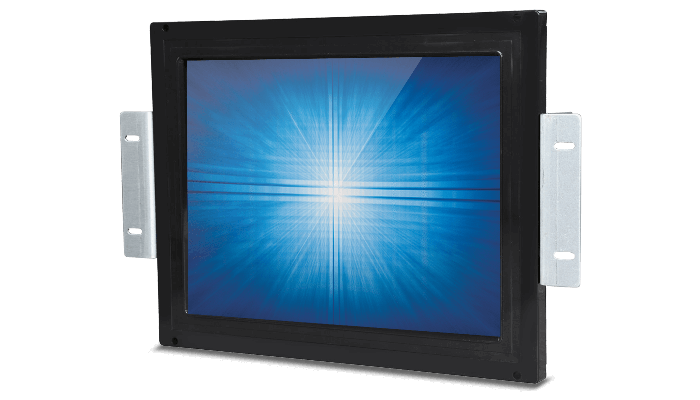

1247L Open Frame Touchscreen (Discontinued)
Overview
The Elo 1247L 12-inch open-frame touchscreen offers commercial grade strength in a compact sleek design with higher brightness, better contrast, and a wider viewing angle than most 12-inch LCDs. Gaming, retail and hospitality environments present unique performance and durability requirements for touchscreens and the 1247L stands up to the challenge. This rear-mount open frame is designed for touch with proven Elo expertise and reliability built in.

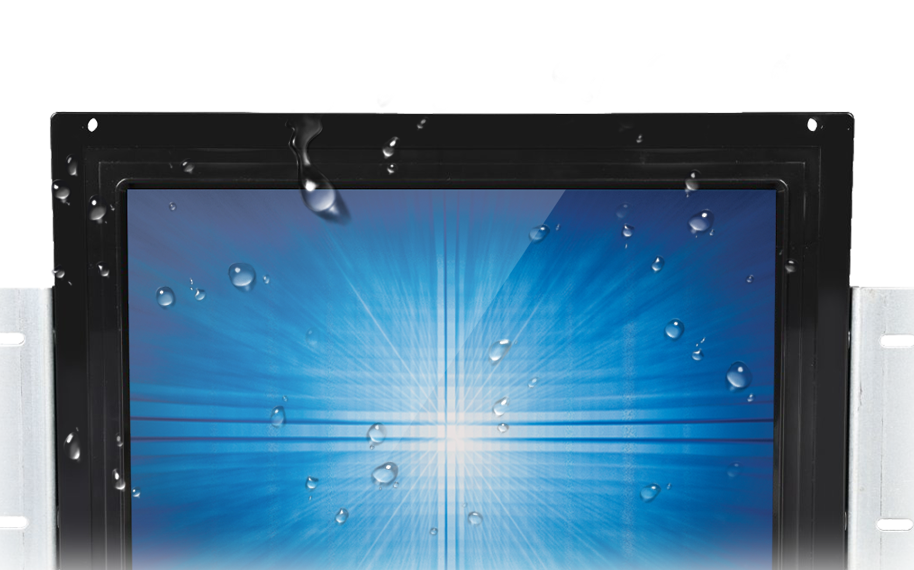

Easily integrated.An integrated precision mini-bezel seals the touchscreen against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. |
 |
 |

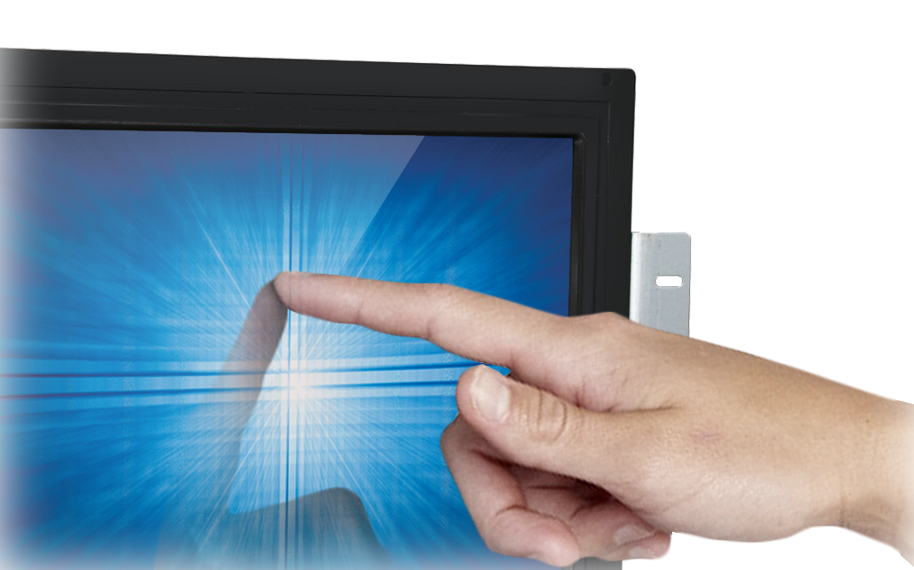

Touch ready.Available with Elo’s industry leading touch technology, IntelliTouch® surface acoustic wave (SAW), the 1247 uses single-touch capacity with pure glass for the ultimate in image quality. And to support a variety of installation environments, the touchscreen is compatible with both finger and gloved hand operation.
|

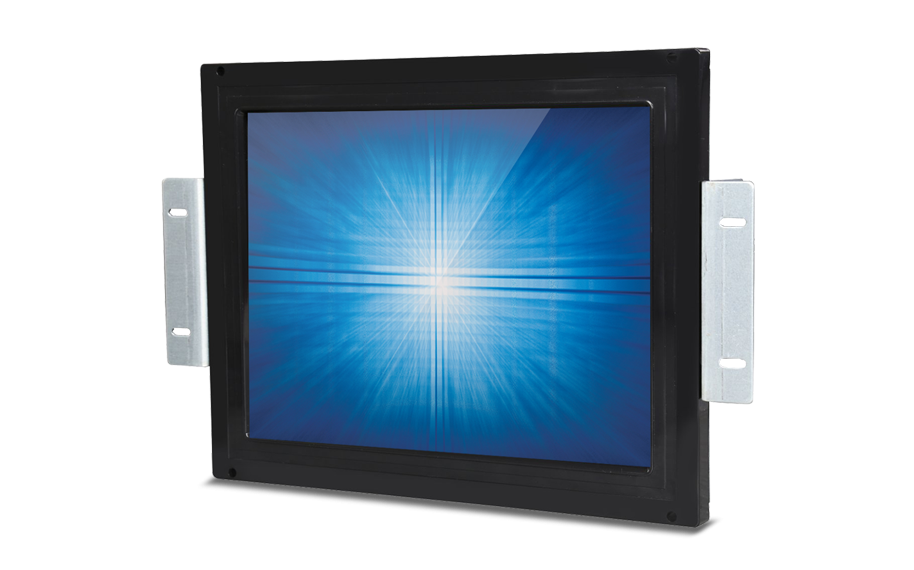

Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
|
 |
Other features.
- Up to 800 x 600 resolution at 75 Hz
- Integrated precision mini-bezel with water-resistant 0.5 mm seal
- Multiple mounting options including mounting brackets or VESA mount
- Serial touch interface
- Three-year warranty on the entire unit including the panel
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E655204
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Touch Interface
Dual serial/USB
Diagonal Size
12.1'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Controls (remote with 1.8m cable): menu, down, up, auto/select
Settings: contrast, brightness, V/H position, recall default, RGB, OSD exit, sharpness, phase, clock, OSD H/V position, OSD time, auto adjust, information
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsAspect Ratio
4:3
Active Area
9.69" x 7.26"/ 246mm x 184.50mm
Resolution
800 x 600 at 60 Hz
Other Supported Resolutions
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
640 x 350 at 70 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 450 nits
IntelliTouch: 405 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
1500:1
Input Video Format
Analog VGA on Female DB-15 connector
Input Video Frequency
Horizontal: 31.5 - 48.1 KHz
Vertical: 56.3 - 75 HzPower Supply
External DC - power brick
Input Voltage
12VDC +/- 5%
Input Connector
Coaxial power jack (2.0mm (+0.0 -0.1mm) 2.1mm pin outer diameter, 6.4mm (+/- 0.3mm) 5.5mm barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Power Consumption (Typical)
Monitor + Adapter at 230V/50Hz
ON: 14 W
SLEEP: 3 W
OFF: 1 WDimensions
11.93" x 9.53" x 2.36" / 302.5mm x 242.2mm x 60mm
Shipping Box Dimensions
17.32" x 12.80" x 7.68" / 440mm x 325mm x 195mm
Weight (Unpackaged)
8.8 lbs / 4.0 kg
Weight (Packaged)
13.2 lbs / 6.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 85%
Storage: 5% to 95%Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Australia RCM
Canada cUL (*Recognized component), IC
Europe TÜV-Bauart
Japan VCCI
United States UL(*Recognized component), FCCMounting Options
75 mm VESA mount
Rear mount through bezel or with included standard mounting bracketsWhat's in the Box
Brick Power Supply
VGA cable
Serial cable
European power cable
USB cable
Power cable US/Canada
OSD Remote
CD and Quick Install Guide
