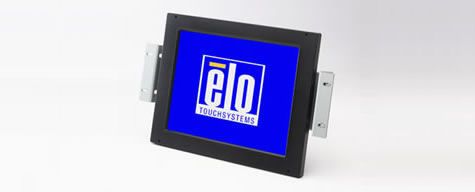

1247L 12.1" Touchscreen Monitor (Discontinued November 2006)
Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Other Features
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs (300 nits, 300:1, 120° x 90°)
- Up to 800 x 600 resolution at 75 Hz
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with watertight 0.5 mm seal
- Multiple mounting options including rear-mount or VESA mount
- IntelliTouch® Surface Wave Technology on pure glass for the ultimate in image quality
- Finger or gloved hand operation
- Serial touch interface
- Multilingual remote on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Specifications
-
Technical
Part Number(s)
IntelliTouch (Antiglare, Worldwide) - E45839-000
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
12.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
2.36" / 60 mm
Aspect Ratio
4:3
Active Area
9.69" x 7.27" / 246 mm x 184.5 mm
Resolution
800 x 600
Other Supported Resolutions
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
640 x 350 at 70 HzViewing Angle
Horizontal: ±65° or 130° total / Vertical: 65°/40° or 105° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
IntelliTouch: 320 nitsResponse Time-total (typical)
40 msec
Contrast Ratio
500:1
Input Video Format
RGB analog
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Touch Interface
Dual serial/USB
Power Supply
Type: External brick
Output voltage/current: 12 volts at 3.33 amps maxInput Voltage
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 31.5-48.1 kHz
Vertical: 56.3-75 HzOn Screen Display
Remote OSD with 1.8m cable
User Controls
Remote OSD: menu, down, up, auto/sel
OSD: contrast, brightness, V/H position, recall default, RGB, OSD exit, sharpness, phase, clock, OSD H/V position, OSD time, auto adjust, OSD languages (English, French, German, Spanish, Japanese) and informationMonitor Dimensions (without Stand)
11.92" x 9.53" x 2.36" / 302.5 mm x 242 mm x 60 mm
Monitor Dimensions (with Stand)
14.14" x 9.53" x 2.36" / 359 mm x 242 mm x 60 mm
Weight (Unpackaged)
8.8 lbs / 4 kg
Weight (Packaged)
13.2 lbs / 6.0 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20%-85%
Storage: 5%-95%
noncondensingMounting Options
75 mm VESA mount
Mounting brackets included
Rear mount through bezel or with included bracketsOther Features
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and PlayBacklight lamp life
Minimum 50,000 hours to half brightness
Warranty
3-year
Regulatory approvals and declarations
UL/cUL (*recognized component), FCC, TÜV-Bauart, CE, VCCI, C-Tick
Power Cables
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included
