1522L 15" Touchscreen Monitor (Discontinued December 2013)
How to Buy

Overview

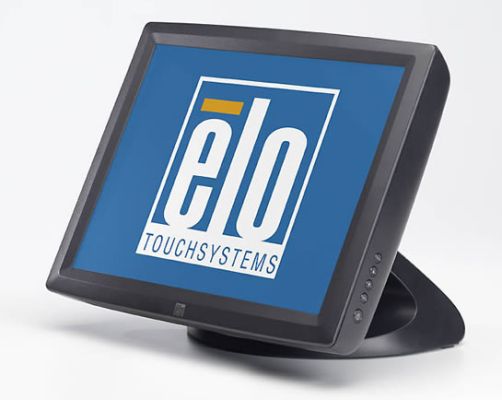

The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.

Other features.
  • Long lasting product cycle – enclosure controlled by Elo specifications
  • Small integrated design
  • A touchmonitor that can function as a desktop or wall-mountable system
  • Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology and IntelliTouch Surface-Wave Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Touchscreen sealed to resist dirt, dust and splashes
  • "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
  • Controls on the side rather than the front, plus lockout function for public use
  • Choice of short or tall monitor stand
  • Choice of gray or beige finish
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Worldwide agency approvals
  • Security lock receptacle
  • 3 year warranty
