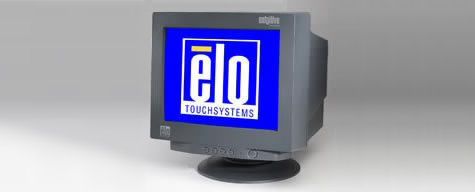

1526C 15" CRT Touchmonitor (Discontinued November 2004)
How to buy

Overview

For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch® ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.

Features
  • Our lowest cost touchmonitor
  • Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
  • Digital on-screen display (OSD) with lockout function for public use
  • Power Save function
  • Rigid (removable) base
  • Innovative touchscreen sealing
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Worldwide) - 263864-000
    AccuTouch (Antiglare, Worldwide) - 516252-000
    IntelliTouch ZB (Antireflective, Worldwide) - 139862-000
    IntelliTouch ZB (Antireflective, Worldwide) - 639794-000

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Monitor Thickness

    15.2" / 385 mm

    Aspect Ratio

    4:3

    Active Area

    Horizontal: 10.2" / 260 mm
    Vertical: 7.7" / 195 mm

    Resolution

    800 x 600 at 85 Hz

    Other Supported Resolutions

    1024 x 768 at 60, 70, 75, or 85 Hz
    800 x 600 at 60, 72, 75, or 85 Hz
    640 x 480 at 60, 72, 75, or 85 Hz

    Number of Colors

    16.7 million

    Dot Pitch

    0.28 mm

    Contrast Ratio

    300:1

    Touch Interfaces

    Serial: 263864-000, 139862-000
    USB: 516252-000, 639794-000

    On Screen Display

    Digital OSD with lockout capability

    Video Bandwidth

    67 MHz

    Input Video Format

    Analog (no proprietary video card needed)

    Input Video Signal Connector

    Mini D-Sub 15-Pin (female)

    Power Consumption (Typical)

    70 W max.

    Power Supply

    90-264 VAC, 50-60 Hz

    Input Frequency

    Horizontal: 30-70 kHz
    Vertical: 50-160 Hz

    Monitor Dimensions (without Stand)

    14.3" x 12.9" x 15.2" / 362 mm x 328 mm x 385 mm

    Weight (Unpackaged)

    29 lbs / 13.0 kg

    Weight (Packaged)

    33 lbs / 15.0 kg

    Operating Temperature

    0°C to 40°C

    Storage Temperature

    -40°C to 60°C

    Humidity

    Operating: 10% to 90%
    Storage: 10% to 90%
    noncondensing

    MTBF

    50,000 hours demonstrated

    Mounting Options

    Rigid (removable) base

    Other Features

    VESA DDC 1/2 B Plug and Play

    Warranty

    2-year

    Regulatory approvals and declarations

    UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)

    Power Cables

    A North American power cable and a European power cable are included.

    For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included
