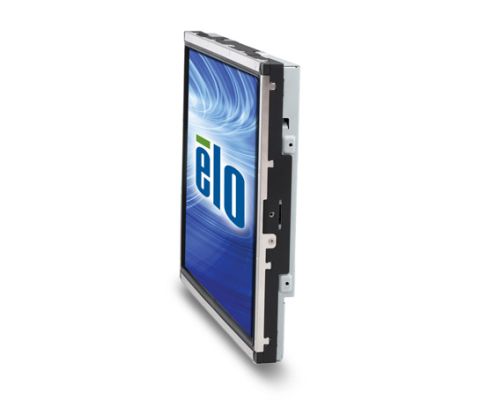

1537L 15" Open Frame Touchscreen (Discontinued September 2015)
Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded minibezel with virtually invisible water-resistant seal and choice of touch technology.

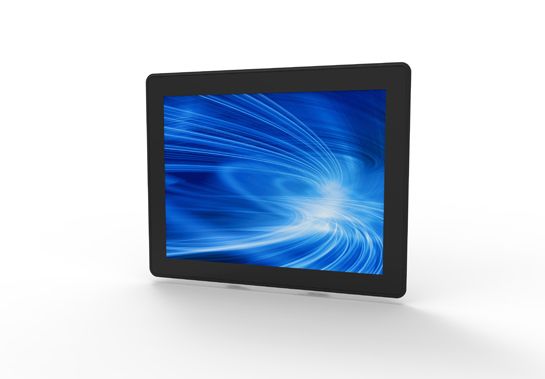

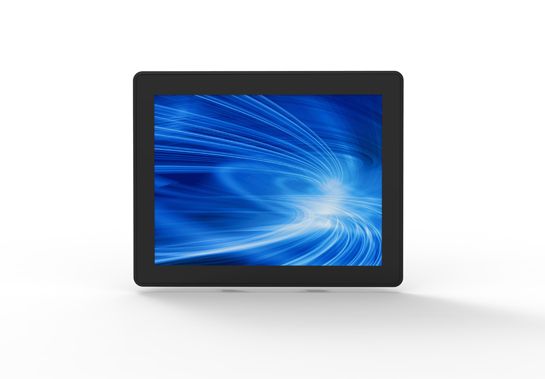

The 1537L is available with a choice of touch technology, with single touch and multi touch options and in standard bezel and seamless, zero-bezel touchscreen design.
Other Features
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with water-resistant 0.5 mm seal
- Mounting options including rear-mount (from top/bottom or sides) and VESA mount
- Multilingual on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Specifications
-
Technical
Part Number(s)
CarrollTouch (Antiglare, Worldwide) - E461378
Enclosure Color
Black
Touch Technology & Capacity
CarrollTouch Infrared Technology
Touch Interface
Dual serial/USB
Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsAspect Ratio
4:3
Active Area
12.0" x 9.0" / 304 mm x 228 mm
Resolution
1024 x 768 at 60 Hz
Other Supported Resolutions
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
512 x 256 at 60 Hz
512 x 247 at 60 HzViewing Angle
Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 250 nits
CarollTouch: 230 nitsResponse Time-total (typical)
16 msec
Contrast Ratio
700:1
Input Video Format
Analog VGA and digital DVI
Input Video Signal Connector
Female DE-15 connector
Female DVI-D, Dual-Link connectorPower Supply
External DC - Optional power brick (sold separately)
Input voltage
DC: +12VDC ±5%
Input power connector specification (on Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)
Power connector (on Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Input power connector (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Power connector (Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Input Voltage
+12VDC ±5%
Input Connector
DC Barrel Jack
Input Frequency
Horizontal: 31.5-60.2 kHz
Vertical: 56.3-75 HzPower Consumption (Typical)
Monitor only: 20W
Monitor and power brick: 22WDimensions
13.24" x 10.49" x 1.66" / 336.4 mm x 264.4 mm x 42.1 mm
Shipping Box Dimensions
16.14" x 6.50" x 14.17" / 410 mm x 165 mm x 360 mm
Weight (Unpackaged)
6.6 lbs / 3.0 kg
Weight (Packaged)
9.7 lbs / 4.4 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, CE, VCCI, IC, C-TICK, CCC, BSMI, KC, China RoHS
Mounting Options
100 mm or 75 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)
Flush mount with optional bezel kit (see Accessories tab for details)Options / Peripherals / Upgrades
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Elo 15-inch- Flush-mount Bracket - Elo P/N: E139556
Elo 15-inch - L-Bracket - Elo P/N: E203787
Elo 15-inch - Front-mount Bezel - Elo P/N: E323425 (See Mounting Options Spec for Compatibility)
Elo 15-inch - Rack-mount Bracket - Elo P/N: E295006 (See Mounting Options Spec for Compatibility)
Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897Brackets & Bezel Kits
Front-Mount Bezel - Elo P/N: E323425
Optional Mounting Brackets - Elo P/N: E295006
Flush-Mount Bezel kit - Elo P/N: E139556VESA Adapter Plate
Part number E155809, adapter plate kit available to alter the VESA mounting options on the 1537L family
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional IntelliTouch Stylus Pen
D82064-000, available at additional cost.
