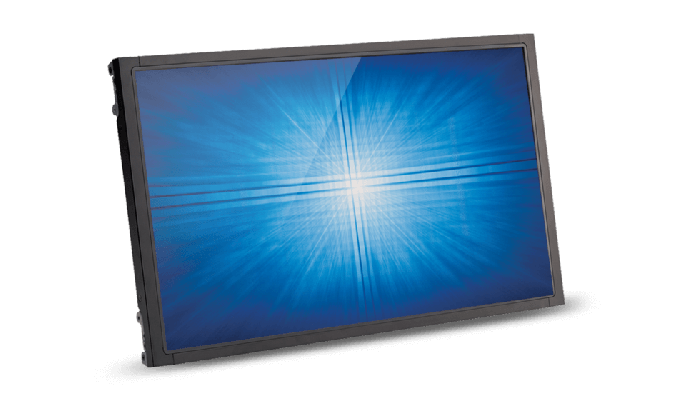

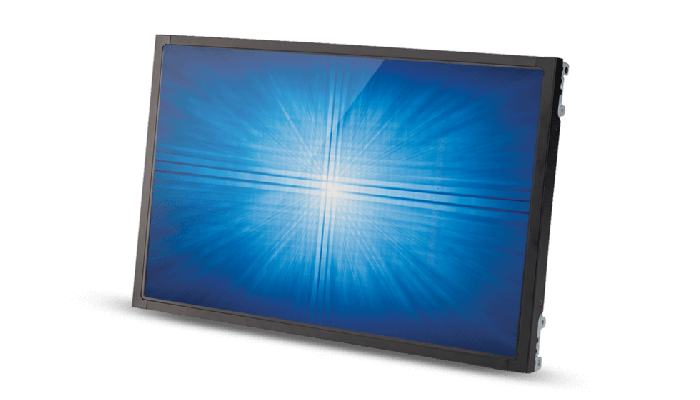

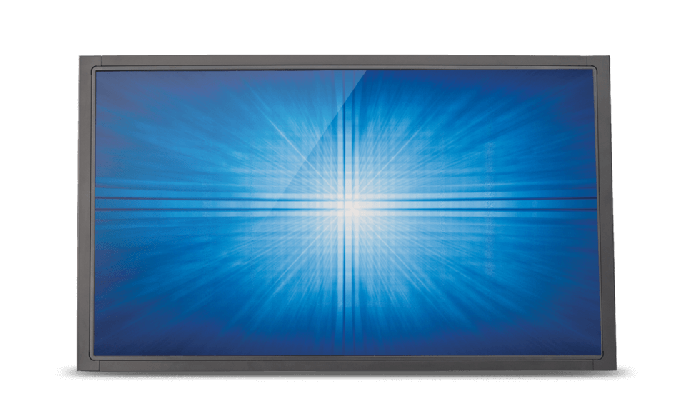

1541L Open Frame Touchscreen (Discontinued)
How to buy

Overview

Elo’s 1541L 15-inch open frame touchscreen offers a LED backlight that features a 16:9 aspect ratio, suitable for commercial, industrial, gaming and retail applications. The 1541L expands the Elo family of solutions for gaming and amusement, information kiosks and self-service environments with flexible, energy-saving features. The touchscreen delivers an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. The 1541L has a compact form factor with your choice of touch technologies and multiple mounting options for easy integration.

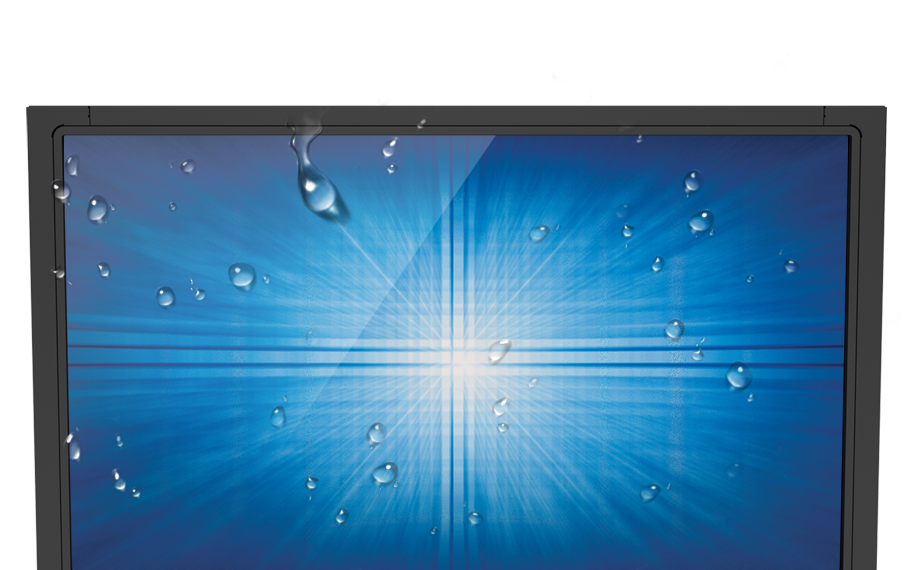

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

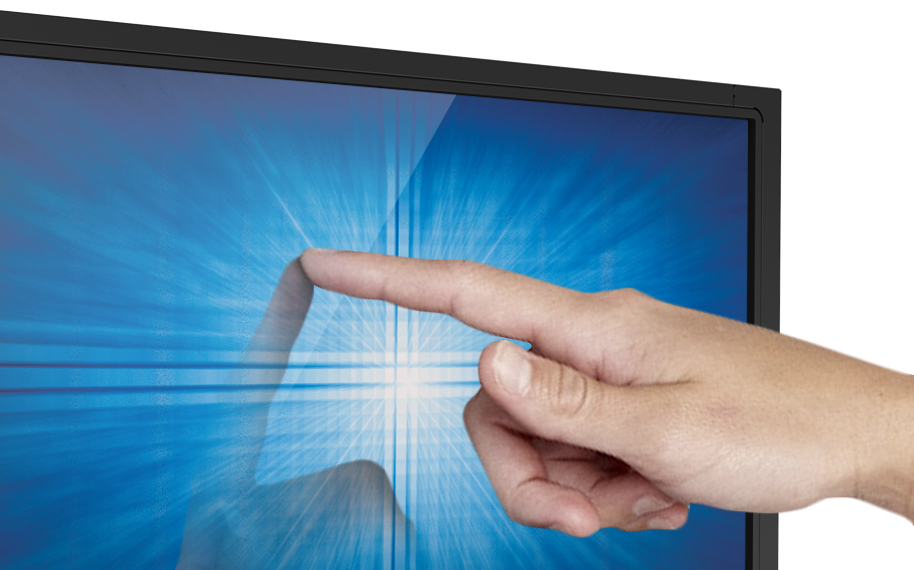

Touch ready.

The 1541L is available with a choice of Elo’s industry-leading touch technologies, both providing the ultimate in optical quality. AccuTouch® five-wire resistive with single-touch and IntelliTouch® surface acoustic wave (SAW) with dual-touch.

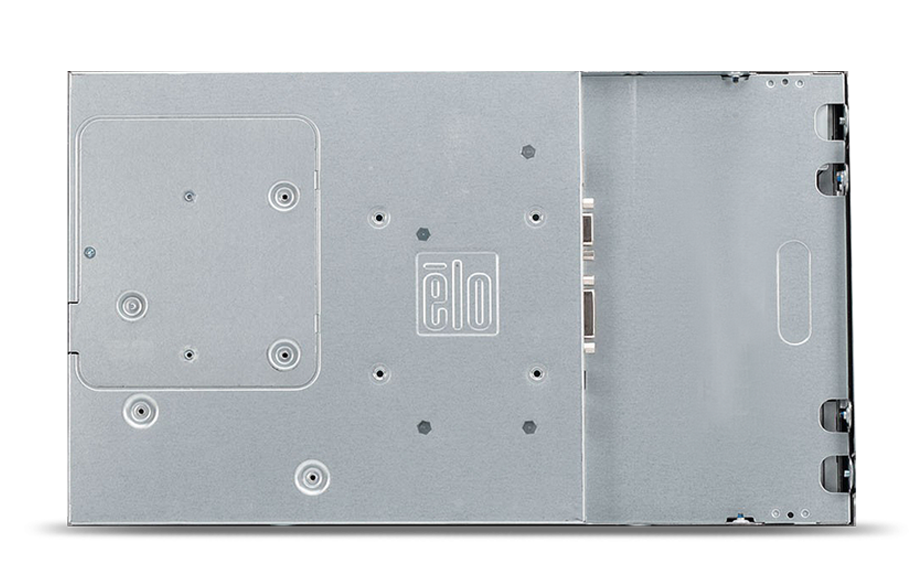

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • High Definition LCD display offers ultimate HD interactivity, clarity and resolution
  • Compact size enables slimmer designs for narrower kiosks, with a portrait mode configuration for a larger display space in a smaller footprint
  • State-of-the-art LED backlight replacing bulky, glass cold cathode fluorescent lamps (CCFL), for slim design, reduced power consumption and lower heat generation
  • Integrated precision mini-bezel with water-resistant 0.5 mm seal on bezel versions
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual Touch (Worldwide) - E606625
    AccuTouch (Worldwide) - E805638

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.232mm x 193.536mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    720 x 350 at 70Hz
    720 x 400 at 70Hz
    640 x 480 at 60, 72, 75Hz
    800 x 600 at 56, 60, 72, 75Hz
    800 x 500 at 60Hz
    832 x 624 at 75Hz
    1024 x 768 at 60, 70, 75Hz
    1280 x 800 at 60Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60, 75Hz
    1366 x 768 at 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±65° or 130° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch DT: 225 nits
    AccuTouch: 200 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    500:1

    Input Video Format

    Analog VGA on Female DE-15 connector

    Input Video Signal Connector

    Digital DVI on Female DVI-D connector

    Input Video Frequency

    Horizontal: 31.5 - 80 KHz
    Vertical: 50 - 75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Input power connector (Monitor)

    Type: DC Barrel Jack
    Barrel inner diameter: 6.4mm (+/- 0.3mm)
    Pin outer diameter: 2.0mm (+0.0 -0.1mm)
    Barrel depth: 8.8mm (+/- 0.3mm)
    Input voltage range: +12VDC ±5%

    Power connector (Power brick)

    Type: IEC 60320 C14
    Adapter input voltage range: 100-240VAC, 50/60Hz

    Input Voltage

    12VDC +/- 5%

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz
    ON: 15 W
    SLEEP: 2 W
    OFF: 1.0 W

    Dimensions

    14.83" x 8.7" x 1.82" / 376.8mm x 221.1mm x 46.3mm

    Shipping Box Dimensions

    17.5" x 11.1" x 5.7" / 445mm x 282mm x 145mm

    Weight (Unpackaged)

    6.5 lbs / 2.94 kg

    Weight (Packaged)

    9.5 lbs / 4.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC

    Mounting Options

    75 mm VESA 4-hole mount on rear of unit
    2-Hole mounting interface on all four sides
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    Touch USB Cable
    User Manual CD
    Quick Install Guide
    ZB Models: Flush Mount Brackets w/Screws
    Bezeled Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 15-inch - Wide Front-mount Bezel - Elo P/N: E711274
    Elo 15-inch - Wide Rack-mount Bracket - Elo P/N: E921202 (See Mounting Options Spec for Compatibility)
    Elo 15-inch - Wide L Bracket - Elo P/N: E333212

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.
