1590L 15" Open Frame Touchscreen (Rev A Discontinued)
How to buy

Please see the latest model - 1590L.

Overview

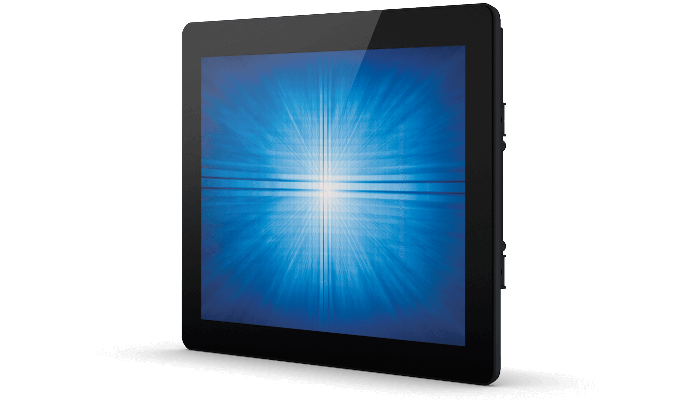

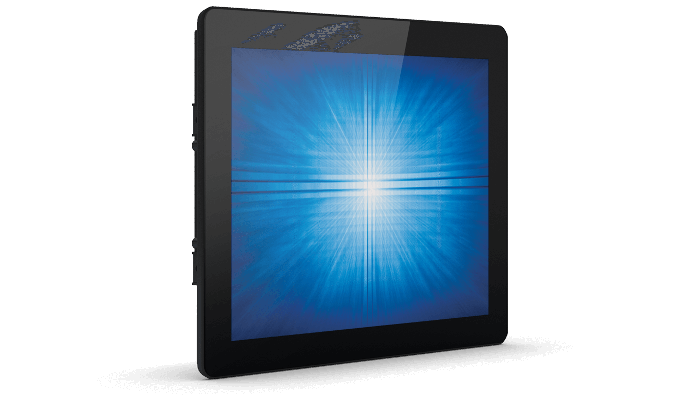

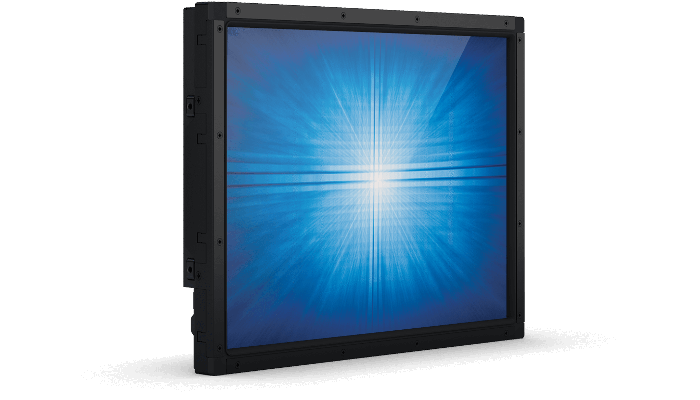

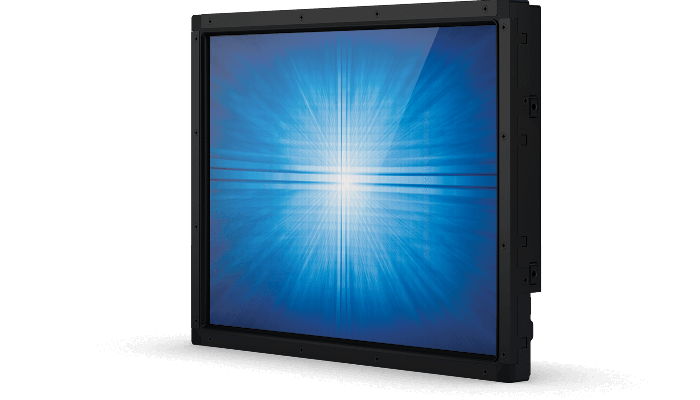

The Elo 1590L 15-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

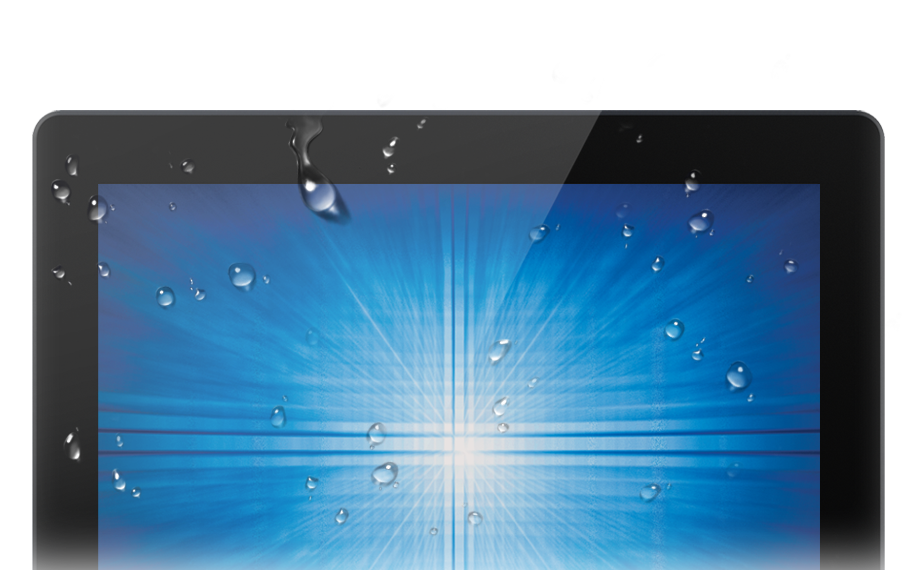

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

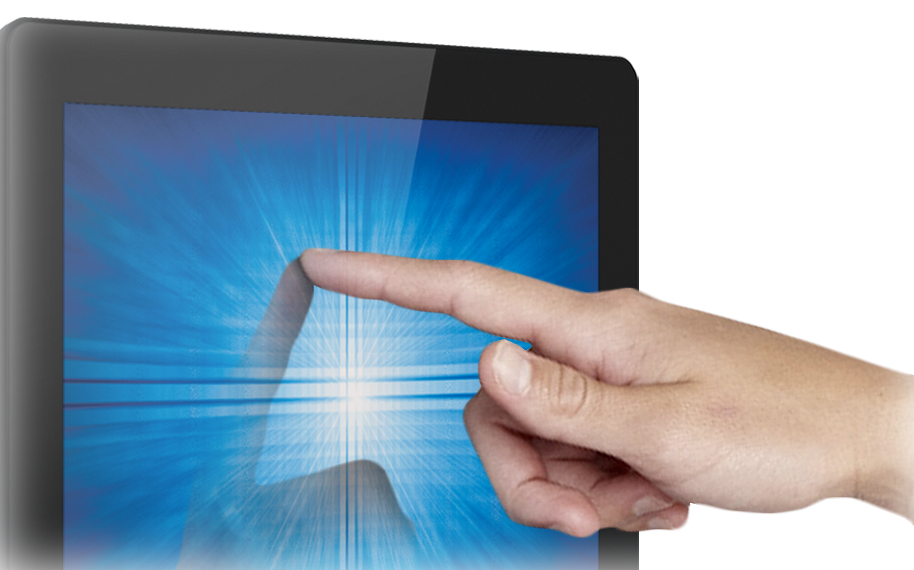

Touch ready.

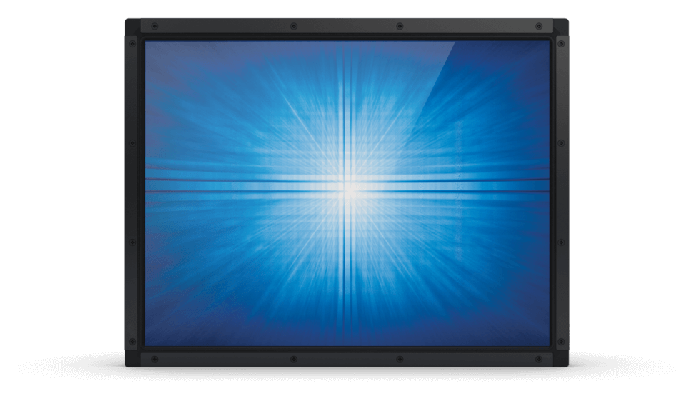

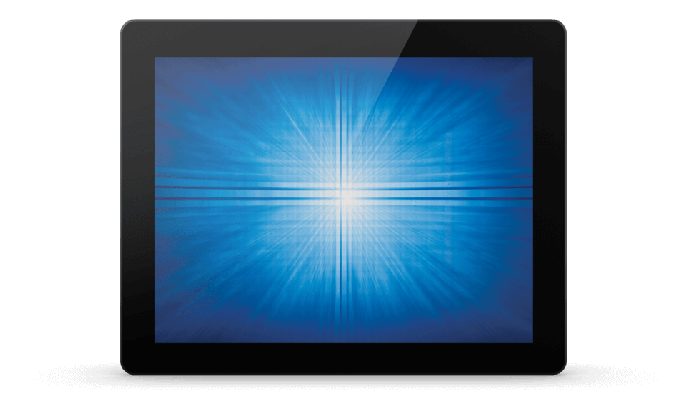

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro® PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

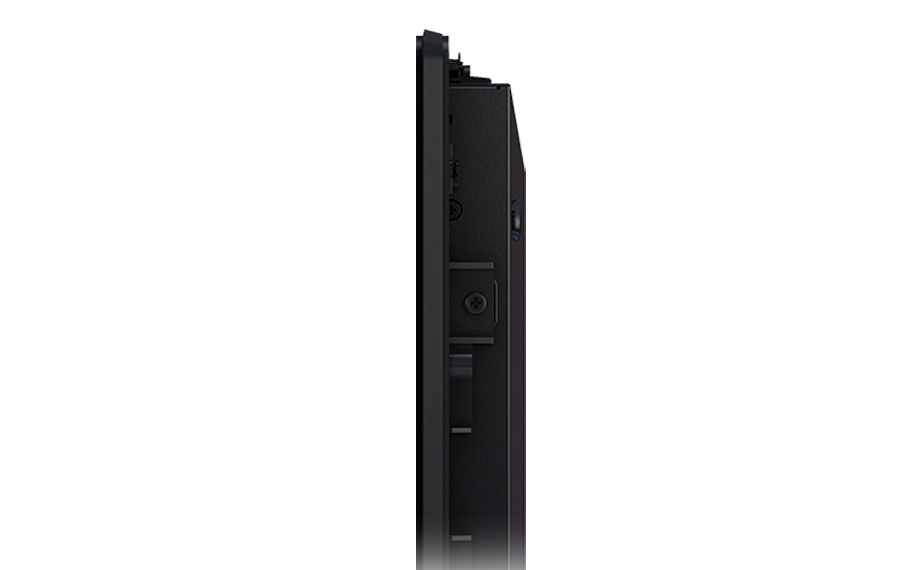

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Worldwide) - E196676
    AccuTouch (Worldwide) - E176751
    SecureTouch (Worldwide) - E176568
    PCAP (Worldwide) - E176164

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch
    SAW (SecureTouch® Surface Acoustic Wave) - Single Touch

    Touch Interface

    PCAP - USB
    AccuTouch, IntelliTouch, SecureTouch - Dual serial/USB

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    4:3

    Active Area

    11.97" x 8.98"/ 304.1mm x 228.1mm

    Resolution

    1024 x 768

    Other Supported Resolutions

    640 x 480 60Hz
    720 x 400 70Hz
    800 x 500, 60Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch: 225 nits
    AccuTouch: 200 nits
    SecureTouch: 220 nits
    PCAP: 225 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    700:1

    Input Video Format

    Analog VGA on Female DB-15 connector
    DisplayPort V1.1a - Supports later versions of Display Port video input

    Input Video Frequency

    Horizontal: 30 - 60 KHz
    Vertical: 50 - 75 Hz

    Power Supply

    External DC - Optional power brick (sold separately)

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz
    ON: 12 W
    SLEEP: 1.5 W
    OFF: 0.5W

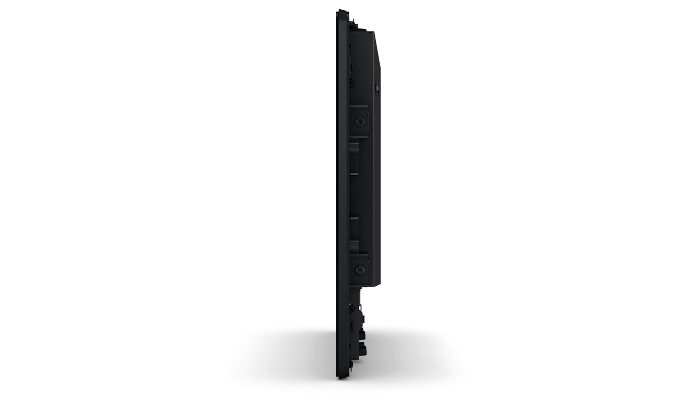

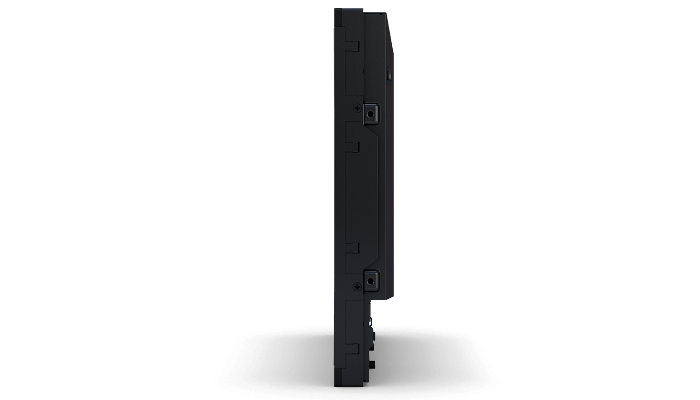

    Dimensions

    Bezel: 13.24" x 10.41" x 1.65" / 336.4mm x 264.4mm x 41.9mm
    Zero-Bezel: 14.09" x 11.22" x 1.40" / 358mm x 284.9mm x 35.6mm

    Shipping Box Dimensions

    17.09" x 14.76" x 6.89" / 434mm x 375mm x 175mm

    Weight (Unpackaged)

    6.4 lbs / 2.9 Kg

    Weight (Packaged)

    9.7 lbs / 4.4 Kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC

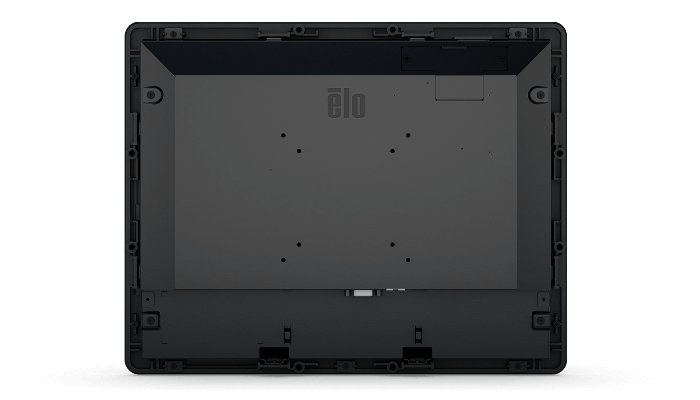

    Mounting Options

    75 mm VESA mount (PCAP Models)
    75 mm and 100mm VESA mount (IT/AT/ST Models)
    Rear mount (PCAP Models)
    2 Hole mounting interface on all four sides.
    Front mount with optional bezel kit (IT/AT/ST Models see Part Numbers for details)
    Rack mount with optional kit (IT/AT/ST Models see Part Numbers for details)
    Flush mount with included brackets (PCAP Models see dimensional drawings for details)
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    RJ45 OSD Remote
    Touch USB Cable
    User Manual CD
    Quick Install Guide;
    For Zero-Bezel Models: Flush Mount Brackets w/Screws
    For Bezeled: IT/ST/AT Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 15-inch- Flush-mount Bracket - Elo P/N: E139556
    Elo 15-inch - L-Bracket - Elo P/N: E203787
    Elo 15-inch - Front-mount Bezel - Elo P/N: E323425 (See Mounting Options Spec for Compatibility)
    Elo 15-inch - Rack-mount Bracket - Elo P/N: E295006 (See Mounting Options Spec for Compatibility)
    1.8m DisplayPort to DisplayPort video cable - Elo P/N: E582895
    1.8m DVI-D to DisplayPort video cable - Elo P/N: E583090
    1.8m HDMI to DisplayPort video cable - Elo P/N: E583288

    Optional PCAP Stylus Pen

    E066148

Configurations

(4)

Refine your search:
Compare Compare
Image of item
E176164
  • TouchPro® - PCAP
  • Multi Touch (10)
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
  • UL & IK07 ball drop
Compare Compare
Image of item
E196676
  • IntelliTouch® - SAW
  • Single Touch
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Compare Compare
Image of item
E176568
  • SecureTouch® SAW
  • Single Touch
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
  • UL & IK07 ball drop
Compare Compare
Image of item
E176751
  • AccuTouch® - 5-Wire Resistive
  • Single Touch
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
No Configurations found.
