2239L 22" Open Frame Touchscreen (Discontinued September 2015)

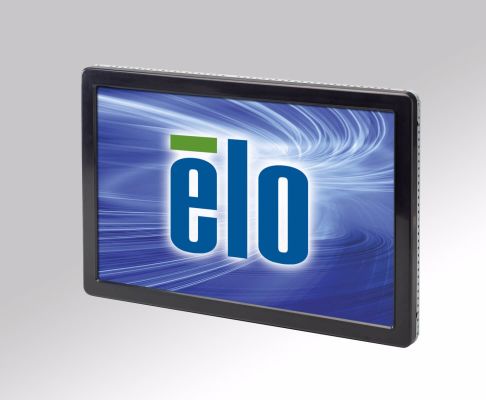

The 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
The 2239L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo specifications and tooling, the Elo open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. It also features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the 2239L. Worldwide agency approvals cover the entire monitor that is designed, built and supported by Elo, a true single-source supplier.
The 2239L is available with the innovative IntelliTouch surface acoustic wave touch technology. The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
- A bright, high-contrast display with wide viewing angle easily attracts and holds the user's attention.
- Pure-glass combines optical quality, durability and drift-free stability, with excellent drag properties.
- IntelliTouch (surface acoustic wave) technology offers high-quality optics, durability, and long-term reliability.
- A transparent protective coating makes the touchscreen resistant to scratches and abrasions.
- Integrated precision minibezel with water-resistant 0.5 mm seal
- The enclosure is controlled by Elo specifications and results in a long-lasting product cycle.
- Multiple mounting options are available.
- Dual serial and USB connectivity are standard.
- Worldwide agency approvals and a three-year standard warranty are backed by Elo.
IntelliTouch (Antiglare, Americas) - E654071
IntelliTouch (Antiglare, EMEA) - E807682
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
22'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall default, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls
Active Area (mm)
18.7" x 11.7" / 474 mm x 296 mm
1680 x 1050 at 75 Hz
Other Supported Resolutions
720x350 @ 70Hz
720x400 @ 70Hz
640x480 @ 60Hz, 66Hz, 72Hz
800x500 @ 75Hz
800x600 @ 56Hz, 60Hz, 72Hz
832x624 @ 75 Hz
1024x768 @ 60Hz, 65Hz, 72Hz, 75Hz
1152x864 @ 75 Hz
1280x768 @ 65 Hz
1280x960 @ 60 Hz
1280x1024 @ 60Hz, 75Hz
1360x768 @ 60 Hz
1366x768 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60Hz, 75 Hz
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
LCD panel: 300 nits
IntelliTouch: 270 nits
Response Time-total (typical)
Input Video Format
Analog VGA, DVI video
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
AC: 100–240 VAC, 50/60 Hz
AC: IEC 60320 C6
Horizontal: 30-75 kHz
Vertical: 53-75 Hz
Power Consumption (Typical)
50W typical; 75W nax, (at 120V/60Hz input)
20.9" x 13.9" x 3.1" / 530 mm x 352 mm x 78 mm
Shipping Box Dimensions
27.17" x 20.87" x 10.04" / 690 mm x 530 mm x 255 mm
18.7 lbs / 8.5 kg
27.8 lbs / 12.6 kg
0°C to 40°C / 32°F to 104°F
-20°C to 60°C / -4°F to 140°F
Touchscreen sealed to bezel
Touchscreen sealed to LCD
50,000 hours demonstrated
Regulatory approvals and declarations
Australia C-Tick, China CCC, Japan VCCI, Korea EK, Korea MIC, Taiwan BSMI, Argentina S-mark, UL, cUL, FCC, Mexico NOM, CE, Russia PCT, China RoHS, WEEE, IMERC
100 mm VESA mount
Mounting brackets included
Options / Peripherals / Upgrades
Replacement Cable Kit - Elo P/N: E378229
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface wave touch technology. Part number D82064-000, available at additional cost.
