2794L 27" Open Frame Touchscreen (Rev A Discontinued)
Please see the latest model - 2794L.
Overview

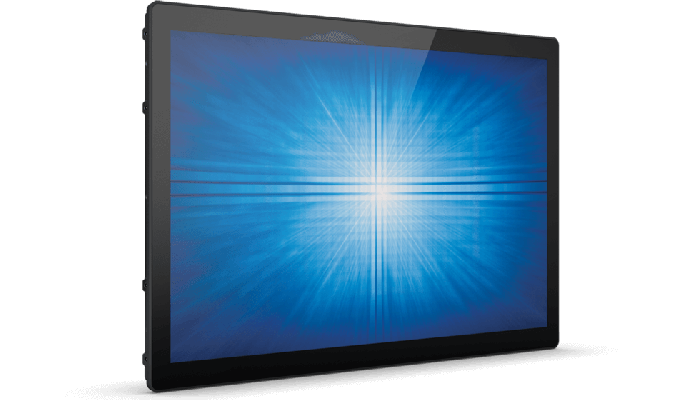

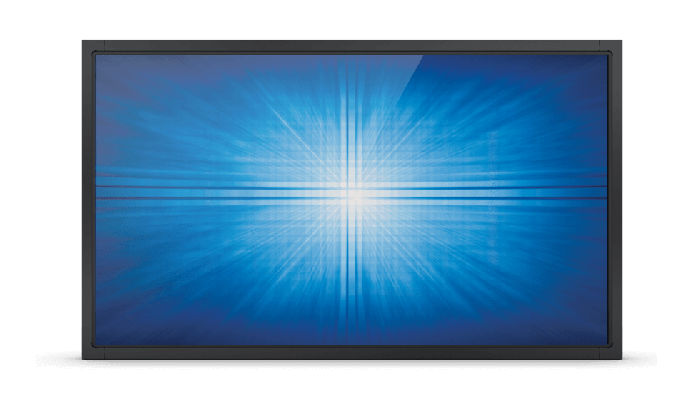

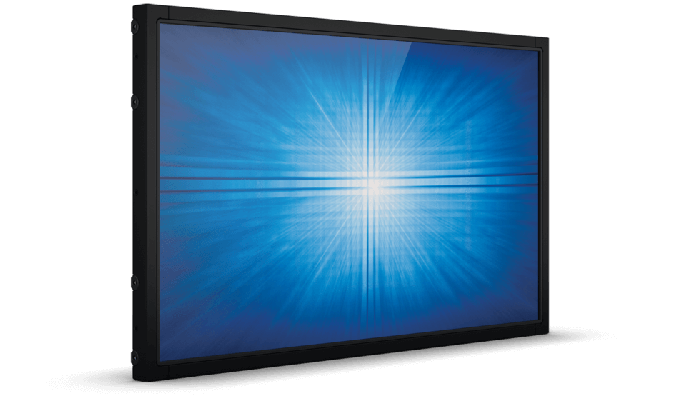

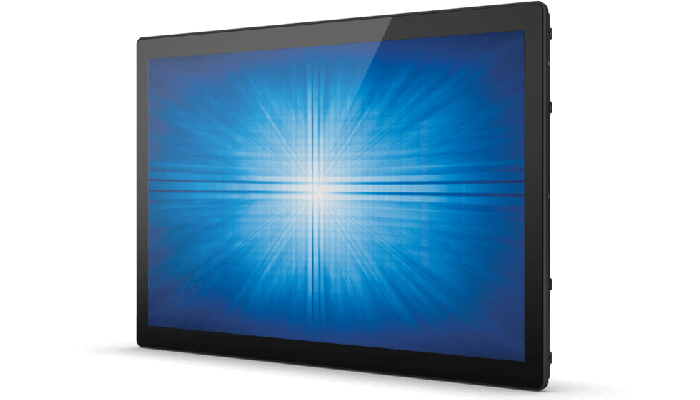

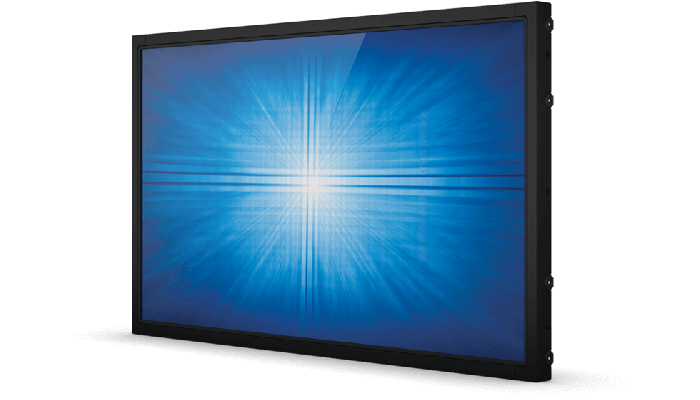

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

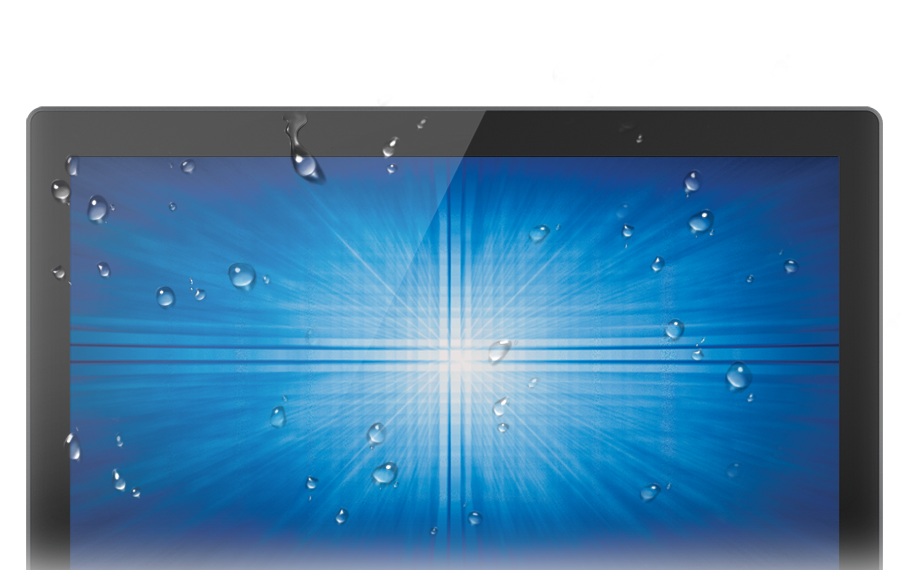

Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. |
 |
 |

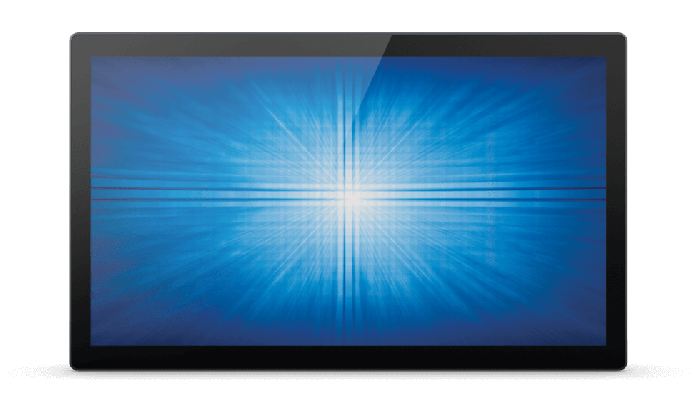

Touch ready.Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
|

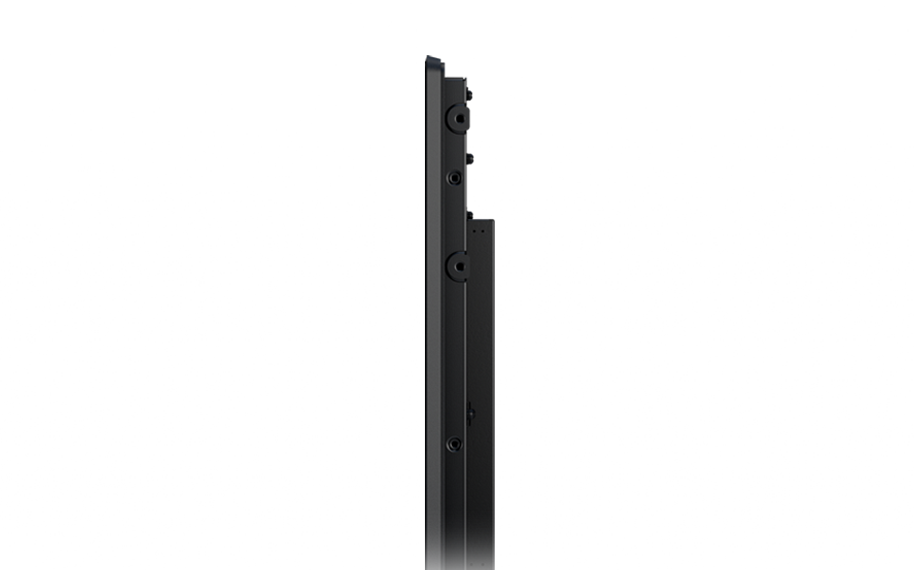

Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
|
 |
Other features.
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities
- Display Port and VGA video interfaces
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E198623
IntelliTouch Dual Touch (Worldwide) - E187031
IntelliTouch ZB (Worldwide) - E198424
PCAP (Worldwide) - E186635Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single TouchTouch Interface
PCAP, IntelliTouch DT - USB
IntelliTouch, IntelliTouch ZB - Dual serial/USBDiagonal Size
27'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerAspect Ratio
16:9
Active Area
23.53" x 13.23" / 597.6mm x 336.15mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
IntelliTouch: 270 nits
IntelliTouch Dual-Touch: 270 nits
IntelliTouch ZB: 270 nits
PCAP: 270 nitsResponse Time-total (typical)
12 msec
Contrast Ratio
3000:1
Input Video Format
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video inputInput Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 HzPower Supply
External DC - Optional power brick (sold separately)
Input Voltage
12VDC +/- 5%
Input Connector
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Power Consumption (Typical)
Monitor + Adapter at 230V/50Hz
ON: 30 W
SLEEP: 1.5 W
OFF: 0.5WDimensions

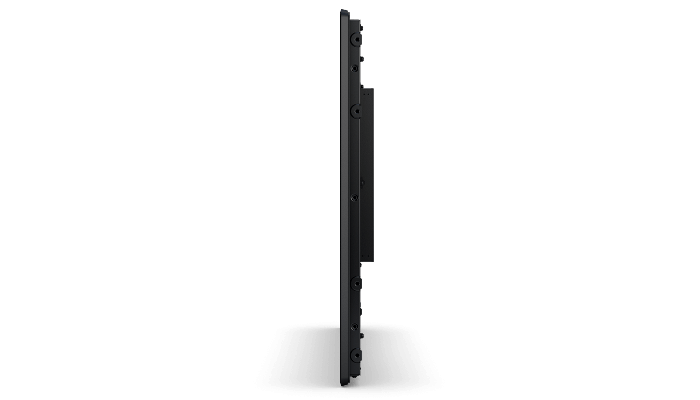

Bezel: 24.93" x 14.74" x 1.65" / 633.2mm x 374.4mm x 41.8mm
Zero-Bezel: 25.36" x 15.29" x 1.56" / 644.2mm x 388.4mm x 39.6mmShipping Box Dimensions
30.79" x 20.87" x 7.87" / 782mm x 530mm x 200mm
Weight (Unpackaged)
16.1 lbs / 7.3 Kg
Weight (Packaged)
22.27 lbs / 10.1 Kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC
Mounting Options

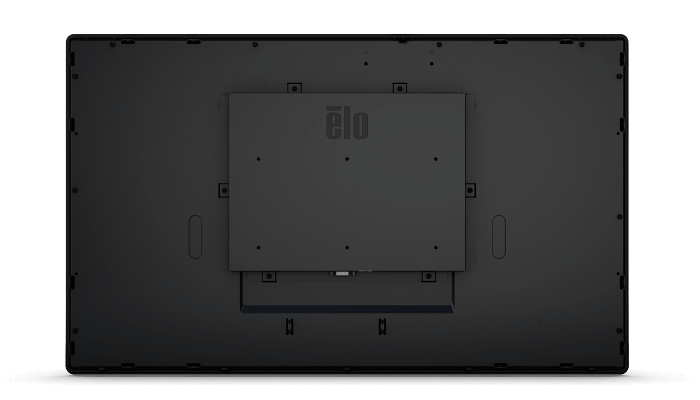

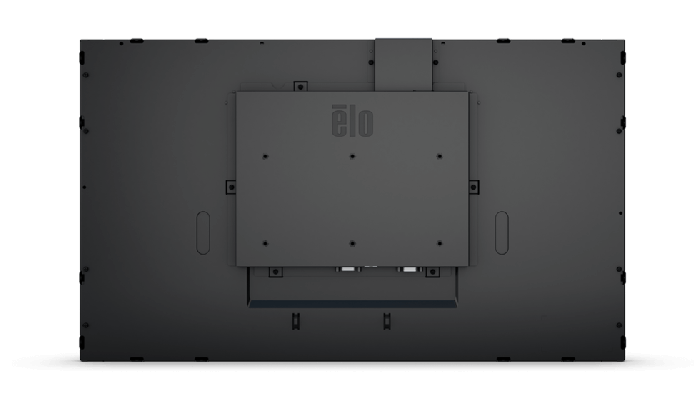

200x100mm VESA mount on rear of unit
4 Hole mounting interface on all four sides.
Front mount with optional bezel kit (IT/AT/ST Models see Part Numbers for details)
Flush mount with included brackets (PCAP/iTouch/Non-Touch Models see dimensional drawings for details)
See dimensional drawings for detailsWhat's in the Box
VGA Cable
RJ45 OSD Remote
Touch USB Cable
User Manual CD
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IT/ST/AT Models: “L” (Side Mount) Brackets and w/ScrewsOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit - Elo P/N: E378229
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 27-inch Wide L-Bracket - Elo P/N: E646994
Elo 27-inch Wide Flush-mount Bracket - Elo P/N: E190896
1.8m DisplayPort to DisplayPort video cable - Elo P/N: E582895
1.8m DVI-D to DisplayPort video cable - Elo P/N: E583090
1.8m HDMI to DisplayPort video cable - Elo P/N: E583288Optional PCAP Stylus Pen
E066148
