7001LT 70" Interactive Digital Signage (Rev A - Discontinued)
How to buy

This product has been replaced by - 6553L.


Overview

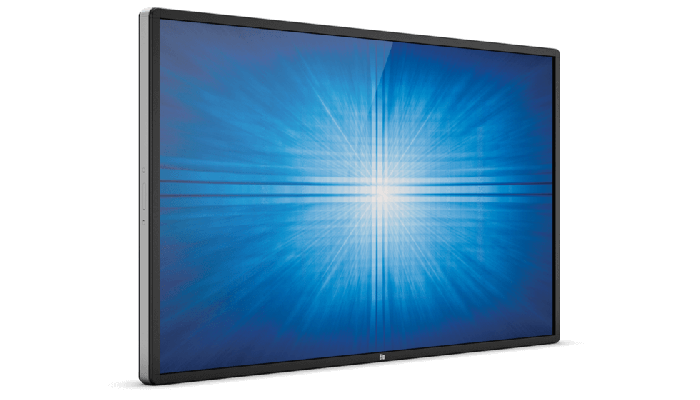

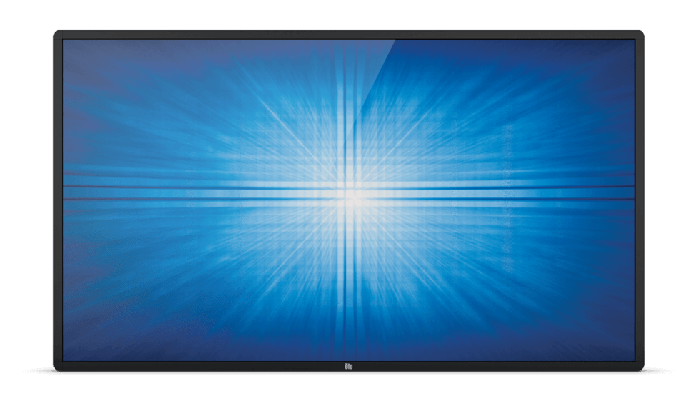

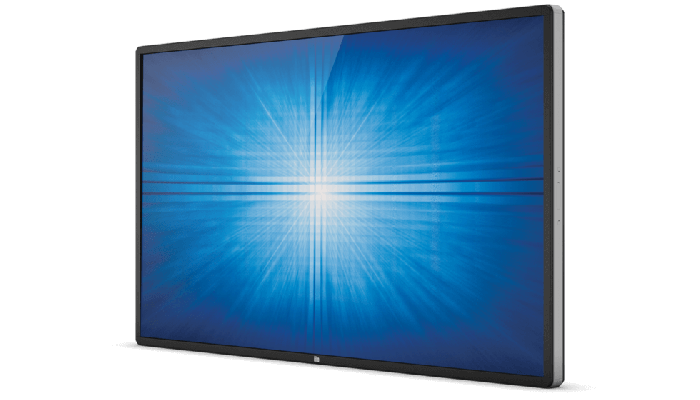

Elo’s 70-inch interactive digital signage delivers a professional-grade, extra-large format touchscreen in a slim, integrated package. Designed from the bottom up for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial applications, the 7001LT is Elo’s largest touchscreen display and offers a bright 500-nit LED panel, with a high-quality, interactive canvas for attracting and engaging consumers. The 7001LT provides a high-performance solution that is easy to deploy and maintain in public environments.

Thinner & lighter.

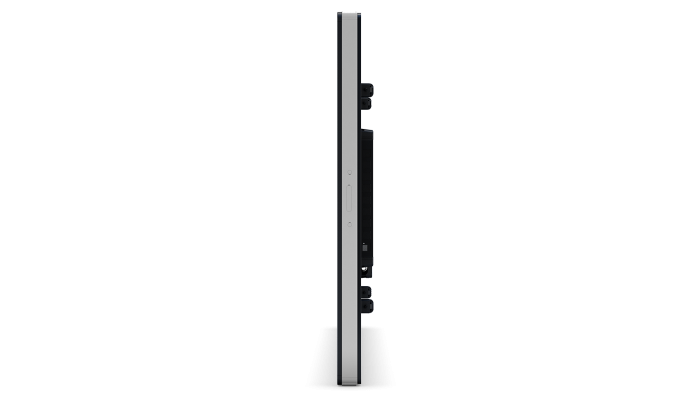

At 3.7 inches thin, the 7001LT is compliant with the ADA requirement of less than 4-inch protrusion for wall-mounted products when used with an Elo low-profile mount.

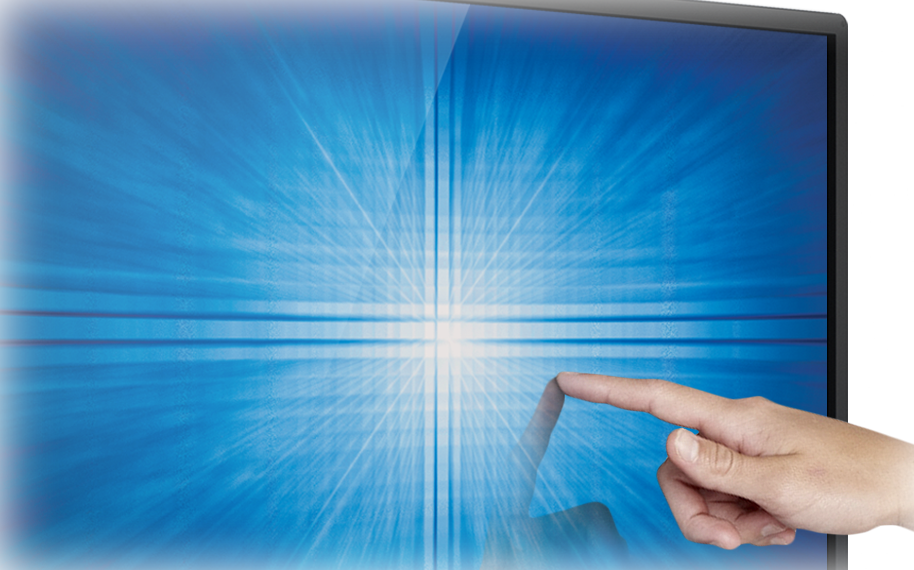

Integrated touch.

Elo’s products are factory-built touch systems with durability built in, not snapped on, preventing any “double bezel” appearance or rattling when touched. The Elo 7001LT is housed in a highly durable steel chassis for a long life of reliable performance with a pure-glass touchscreen designed to deliver crystal-clear images. Available with infrared touchscreen technology with a traditional bezel construction, the 7001LT delivers a sensitive multi-touch response with any input device that can be easily integrated into kiosks.
Processing power.

Optional, high-performance computer modules are available to turn the 7001LT into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. The commercial-grade computer modules, available with Microsoft Windows with Intel Core or Android with Qualcomm Snapdragon (supports EloView®), make the Elo 7001LT IDS display into a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Other features.
  • Professional-grade hardware with strengthened touchscreen glass to withstand the rigors of public use
  • Three-year standard warranty (worldwide) with on-site exchange (NA only) / two-year extended warranty option available (NA and EMEA only)
  • Remote management capability for device hardware with support for future cloud applications
  • Intel OPS compliant with available adapter kit
  • Flexible mounting in portrait, landscape and table-top orientation

Specifications

  • Technical

    Part Number(s)

    Infrared - E008823

    Enclosure Color

    Black

    Touch Technology & Capacity

    Infrared - 10 Touch

    Diagonal Size

    69.5'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    60.6" x 34.1" / 1539mm x 866mm

    Aspect Ratio

    16:9

    Resolution

    Full HD 1920 x 1080

    Viewing Angle

    Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 500 nits
    IR: 450

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    5000:1

    On Screen Display

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Information, MDC Protocol, Support and Help, System Temperature and Exit

    Accessible through switches on the unit's tethered OSD control box.

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a.

    Input Video Signal Connector

    Female DE-15 for Analog VGA
    HDMI Type A receptacle Display part 1.1a Connector.

    Input Video Frequency

    Horizontal: 31.5 - 73 KHz
    Vertical: 47 - 63 Hz

    Audio Input Connector

    3.5 mm TRS jack

    Audio Input Signal Range

    1Vrms max stereo signal (standard PC line out)

    Headphone Output Connector

    3.5 mm TRS jack

    Speakers

    Internal 4x5 W stereo speakers

    Power Supply

    Internal AC

    Input Connector

    IEC 60320 C14

    Input Voltage

    100 - 240 VAC 50/60Hz

    Power Consumption (Typical)

    Monitor Only - 120V at 60Hz
    ON: 145W
    SLEEP: 13.5W
    OFF: 0.5W

    Monitor Only - 230V at 50Hz
    ON: 149W
    SLEEP: 14.5W
    OFF: 0.8W

    Dimensions

    62.9" x 3.7" x 36.4" / 1600mm x 94mm x 925mm

    Shipping Box Dimensions

    70.6" x 15.2" x 45.2" / 1794mm x 386mm x 1149mm

    Weight (Unpackaged)

    Monitor Only: 149.5 lbs / 67.8 kg
    Monitor with Computer Module: 154.35 lbs / 70 kg

    Weight (Packaged)

    Monitor Only: 201.5 lbs / 91.4 kg (packaged with pallet)

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Mounting Options

    VESA 4-hole mount per MIS-F, 600, 600, 8mm

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Optional Product Coverage

    Extended Warranty (North America and EMEA only)

    Regulatory approvals and declarations

    Without RFID: UL, cUL , FCC Class A, CE Class A, VCCI Class A, IC, CCC, China RoHS, CB, RCM Class A, EAC, CoC, KC, BSMI, e-standby

    With RFID: UL, FCC Class A, CE Class A

    What's in the Box

    7001LT, OSD Remote, QIG, JP Class A Kiosk Info, User Manuals/Driver CD, HDMI cable (A to A plug), VGA + RS232 Y-Cable, VGA Cable, USB cable (A to B plug), power cable, NA plug, EU/KR plug UK plug, AR plug, CH plug, JP plug (3-pin to 2-pin adapter)

    IDS Optional Accessories

    i3 3.4 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001292
    i3 3.4 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001293
    i3 3.4 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
    i5 3.7 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001295
    i5 3.7 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001296
    i5 3.7 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
    i7 4.0 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001298
    i7 4.0 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001299
    i7 4.0 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
    ECMG2 Android Computer Module Kit for IDS 01 Series - Elo P/N: E000739
    Web Cam Kit - Elo P/N: E688656
    NFC Adapter - Elo P/N: E918074
    OPS Kit - Elo P/N: E102270
    OSD Control Box - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E000263
    Wall Mount Kit - Elo P/N: E248743

Accessories

(2)

Upgrades, add-ons, and more.
Image of item

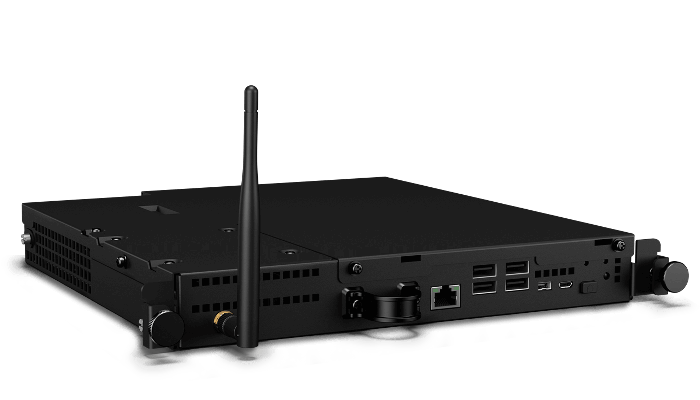

ECM Android Computer Modules (Discontinued August 2018)

Image of item

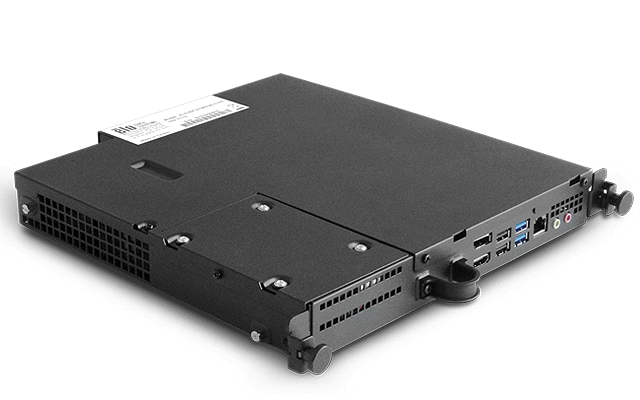

Windows Computer Modules (ECMG2B) for IDS 01-Series (Discontinued August 2018)
