The self-service stands with an integrated printer.

Specifications

• Technical

  ---

  Part Number(s)

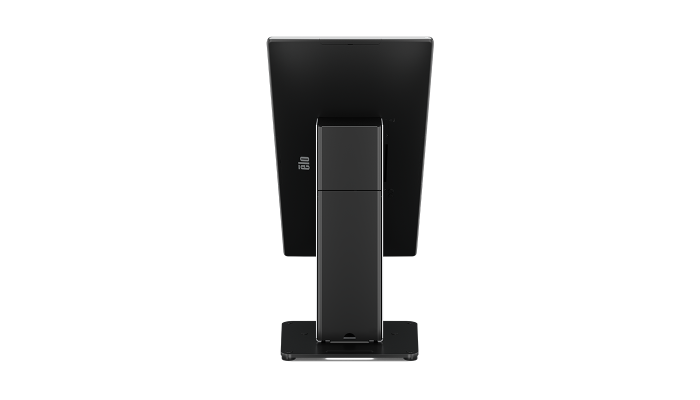

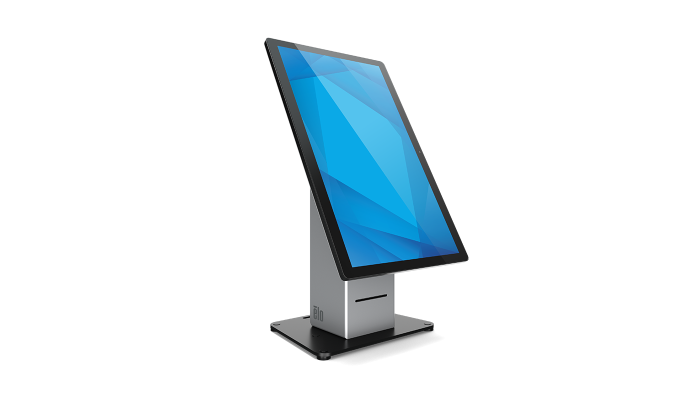

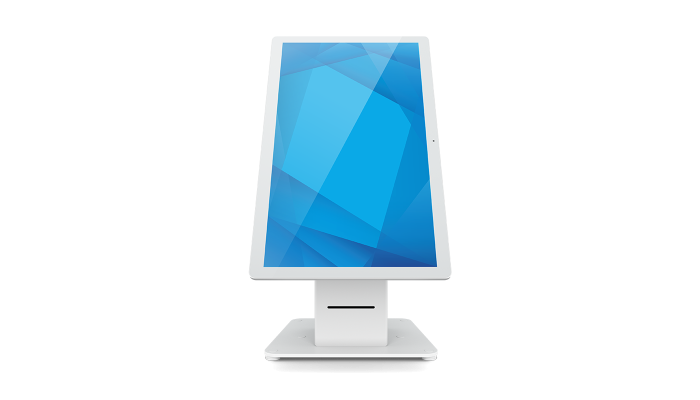

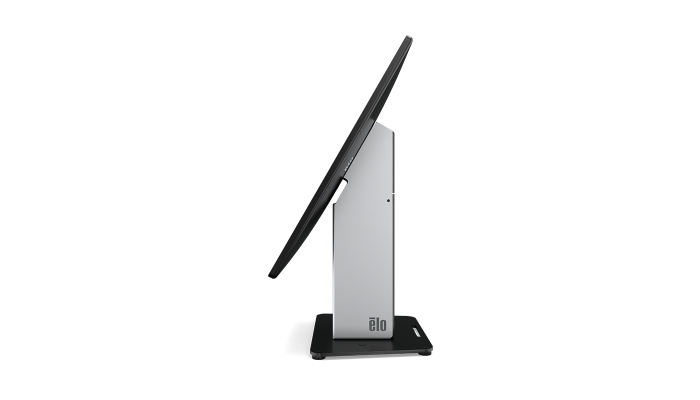

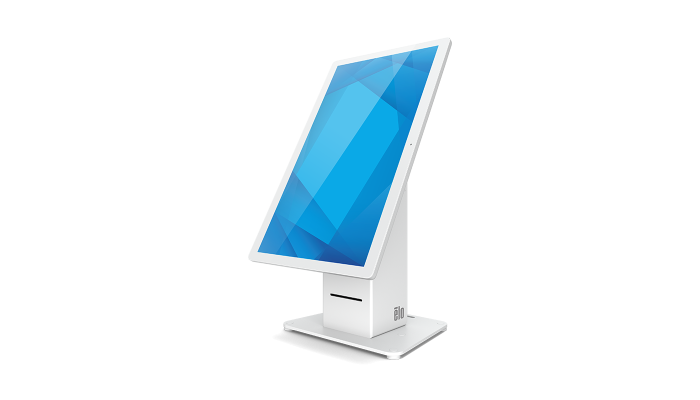

  Countertop Stand, Black - E726617

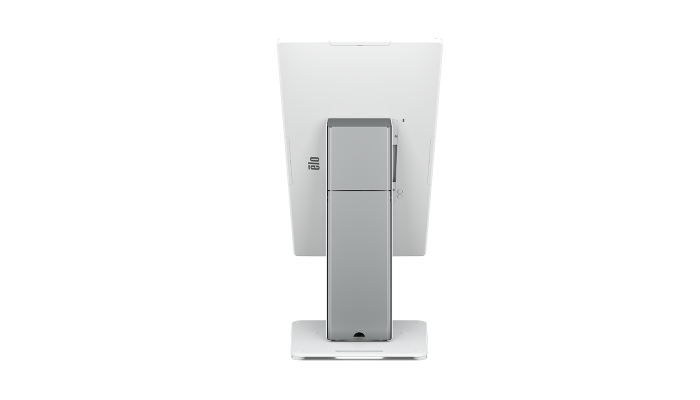

  Countertop Stand, White - E227491

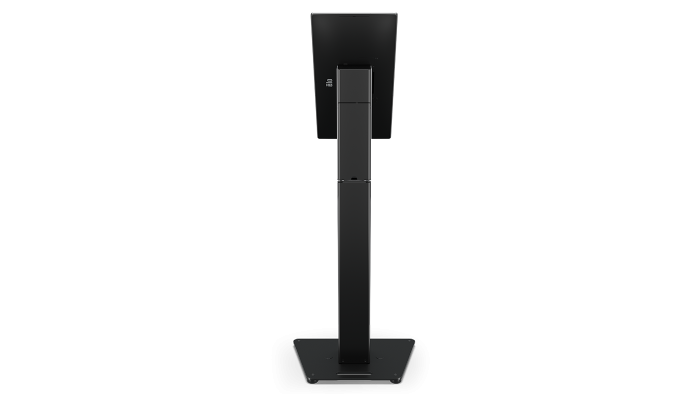

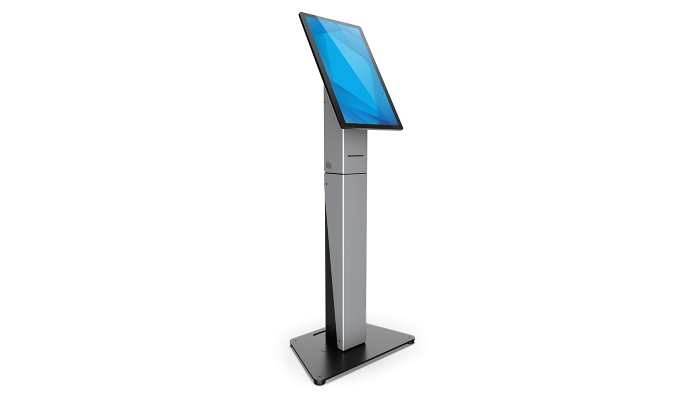

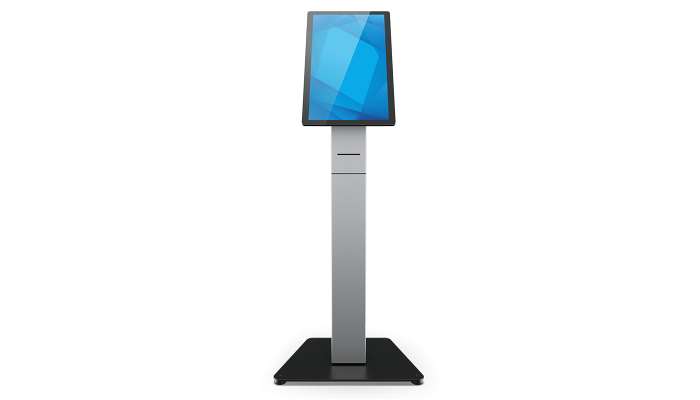

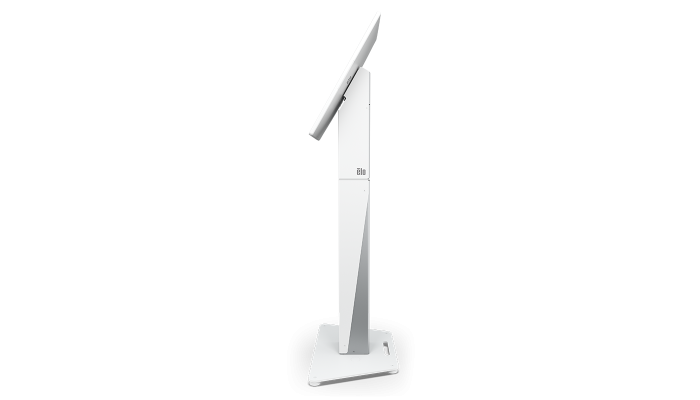

  Floor Stand, Black - E726833 + E290363

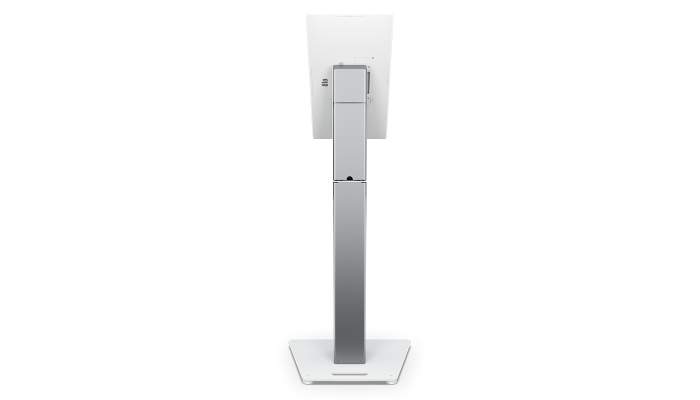

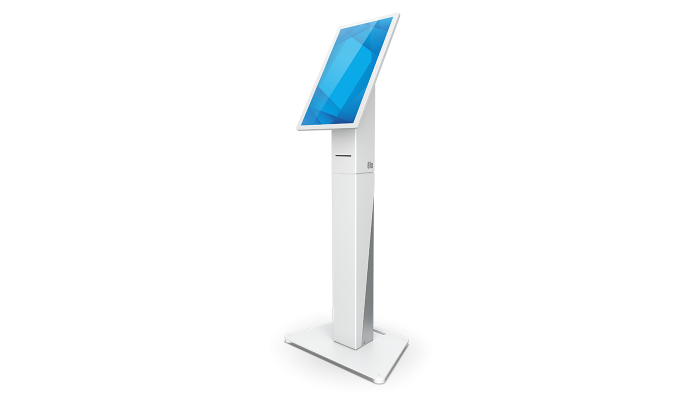

  Floor Stand, White - E227695 + E290158

  Enclosure Color

  White or Black

  Compatibility

  Display Compatibility
  15" & 22" Android I-Series 4
  15" & 22" Android I-Series 2

  EMV Cradle Compatibility:
  Ingenico RP457C (Bluetooth) – E710930
  Ingenico RP457C (Audio Jack) – E586981
  MagTek eDynamo – E375343

  Printer

  Printing method: Thermal dot line
  Speed: 250mm per second (Max)
  Printing width: 80mm / 3.15" (Max)
  Paper width: 60 mm / 2.36", 80 mm / 3.15", 82.5 mm / 3.25"
  Paper thickness: 60 to 80 GSM
  Paper Roll: 80mm roll
  Paper loading: Easy loading
  Cutting method: Full/partial

  Dimensions

  Countertop stand: 12.0" x 9.4" x 18.1" / 305 mm 240 mm x 461 mm
  Floor stand: 21.7" x 13.8" x 47.7" / 551 mm x 350 mm x 1212 mm


  Shipping Box Dimensions

  Countertop stand: 21.26" x 14.96" x 12.80" / 540 mm x 380 mm x 325 mm
  Floor stand base: 28.54" x 18.31" x 4.92" / 725 mm x 465 mm x 125 mm
  Floor stand top: 53.15" x 10.63" x 11.02" / 1350 mm x 270 mm x 280 mm

  Weight (Unpackaged)

  Countertop stand: 26.23 lbs / 11.9 kg
  Floor stand: 69.67 lbs / 31.6 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 90%

  Warranty

  1-year

  What's in the Box

  Countertop stand:
  QIG
  Print Paper Reel
  Screws for Countertop Stand (refer to QIG for details)
  24V/150W Power Brick
  1.8M US Power Cable
  1.8M EU Power Cable
  1.8M CN Power Cable

  Floor stand:
  QIG
  Print Paper Reel
  Screws for Countertop Stand (refer to QIG for details)
  2.3M US Power Cable
  2.3M EU Power Cable
  2.3M CN Power Cable
