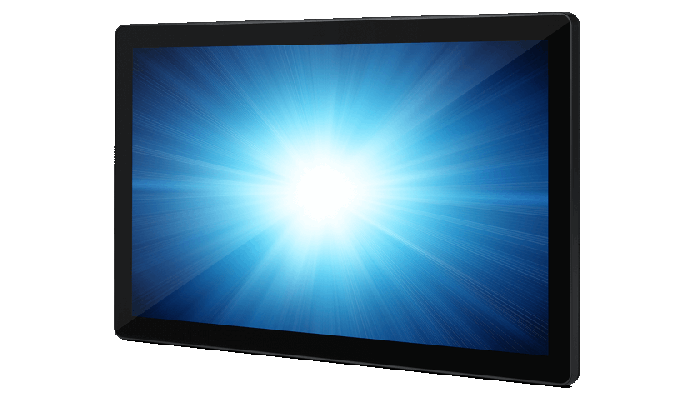

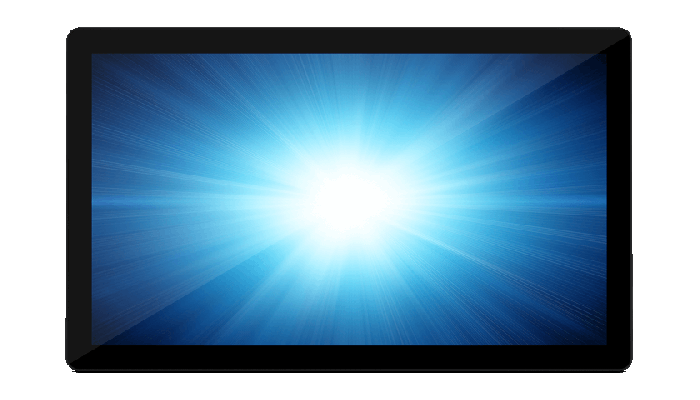

22-inch I-Series for Windows (2.0)

I-Series for Windows

Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

Endless Versatility

The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Self-Service

Point of
Sale

Kitchen Display
Systems

Conference Room
Management

Industrial
Automation

Fully Integrated

Display

Available in 15-inch and
22-inch screen sizes
OS

Windows 10 or
No OS (for use with Linux)
Processor

9th generation Intel
processor
Memory/Storage

Up to 8GB of RAM
and 128GB SSD
Network

Wi-Fi 802.11 b/g/n/ac
supporting 2.4Ghz & 5Ghz
bands, ethernet & BLE5.0

Configure with Elo Edge Connect™

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Barcode Scanner

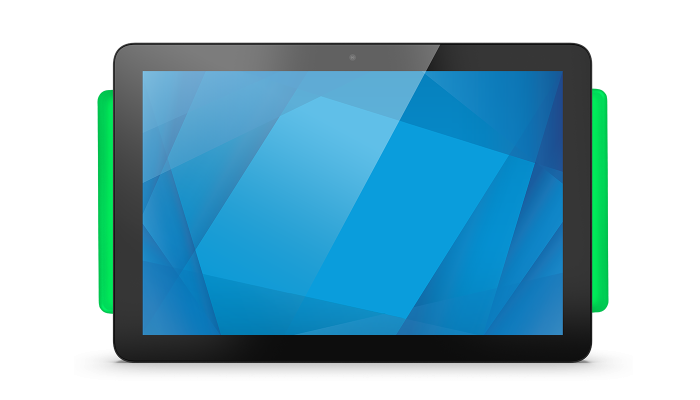

Status Light

EMV

MSR

Fingerprint Scanner

Learn more

Stands & Mounts

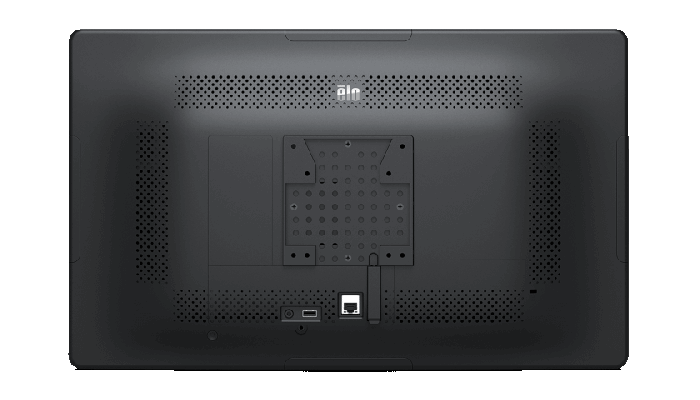

With a standard VESA mount, we give you the flexibility to mount our products however you want.

Pole Mount

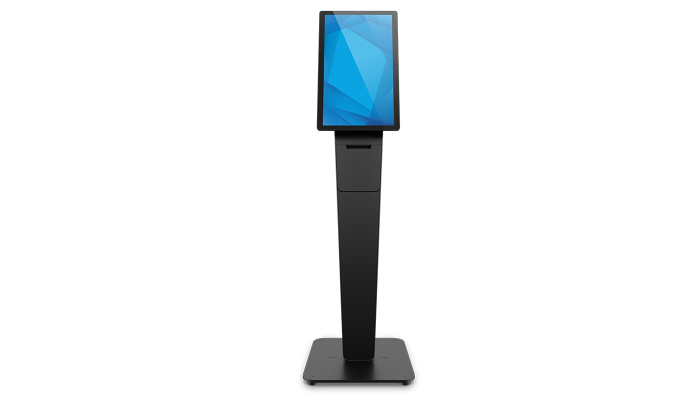

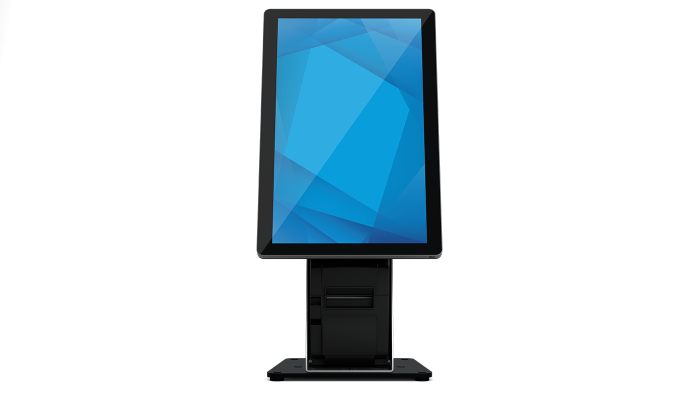

Self-Service Stand

Tabletop Stand

Wall & Shelf Mount

Windows or Linux. You Choose.

Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Get Peace of Mind With EloCare℠

EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Specifications

Technical

Part Number(s)

PCAP Celeron Win10 - E692640
PCAP Celeron No OS - E692837
PCAP i3 Win10 - E850591
PCAP i3 No OS - E850387
PCAP i5 Win10 - E693022
PCAP i5 No OS - E693211

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)
i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Chipset

Celeron: N/A
i3: Intel H310 Express
i5: Intel Q370 Express

Graphics

Celeron: Intel UHD Graphics 600
i3 & i5: Intel UHD Graphics 630

BIOS

AMI

Memory (RAM)

Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

Storage

128GB M.2 SATA SSD 72 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

TPM

2.0

Active Management Technology (AMT)

Celeron: N/A
i3 & i5: Active Management Technology (Intel AMT 11.0) Support

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

18.74" x 10.54" / 476.0 mm x 267.8 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits
TouchPro PCAP: 225 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

USB Ports

1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals

Ethernet Port

1 x LAN RJ45 (Gigabit)

Wireless

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth

Bluetooth 5.0

Audio Ports

1 x 3.5mm line out

Speakers

2 x 2W internal speakers

OS

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit

Languages

Windows 10 - 36 Language groups

Power Supply

External USB-C power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 100W

Power Consumption (Typical)

Celeron: 39 W
i3: 77 W
i5: 83 W

Dimensions

20.7" x 12.57" x 2.07" / 525.9 mm x 319.2 mm x 52.6 mm

Shipping Box Dimensions

24.61" x 7.72" x 17.2" / 625 mm x 196 mm x 437 mm

Weight (Unpackaged)

11.5 lbs / 5.2 kg

Weight (Packaged)

15.4 lbs / 7 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Real-Time Clock

CR2032 lithium metal battery

MTBF

50,000 hours demonstrated

Mounting Options

75mm or 100mm VESA mount

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Sealability

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Power Cables

North American and European power cables included

Other Features

Serviceable internal components
Kensington lock

What's in the Box

I-Series 2.0 for Windows Touchcomputer
North America Power Cord
European Power Cord
Power Adapter - 100W
Cable cover locking screw
Quick Install Guide

Upgrade Options

4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186
8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375
16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989
M.2 SATA 128GB SSD – Elo P/N: E206352
M.2 SATA 256GB SSD – Elo P/N: E206556
Note: Celeron SKUs only support 4GB DDR4 per slot

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002

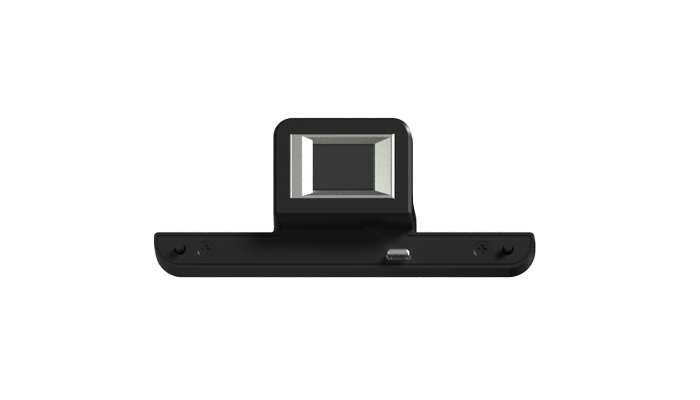

Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767

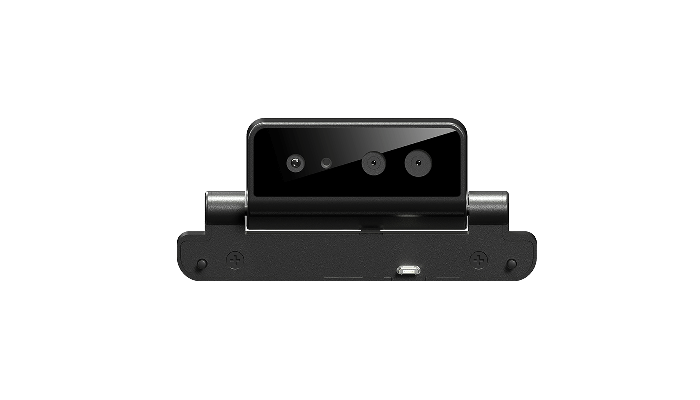

3D Camera - Elo P/N: E134699

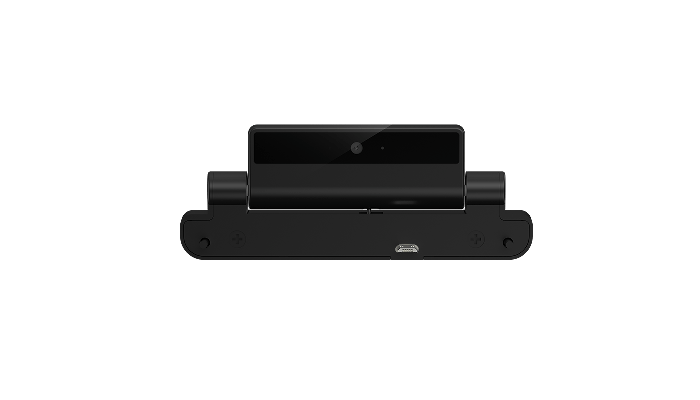

Webcam - Elo P/N: E201494

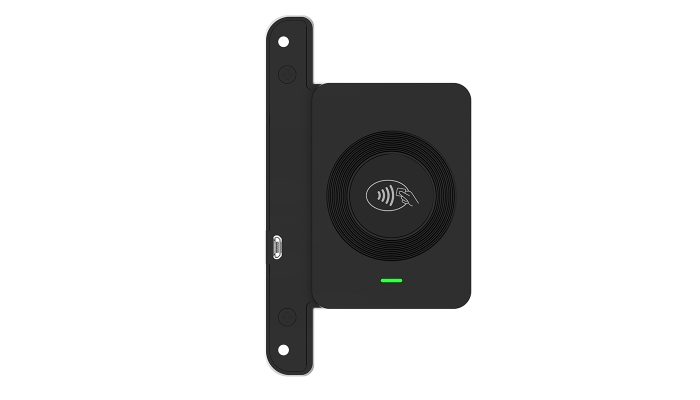

RFID - Elo P/N: E673037

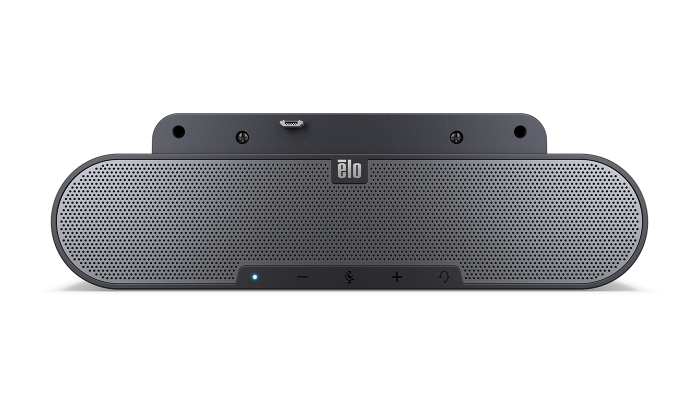

Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
100W USB-C power supply - Elo P/N: E369922
USB Hub and mounting bracket - Elo P/N: E350807
Right angle RJ LAN cable adaptor kit - Elo P/N: E350616
EloPOS Expansion Module (with a 6-ft USB-C cable) – Elo P/N: E263603
100mm Adaptor Kit – Elo P/N: E388675
Right angle 6ft USB-C cable kit – Elo P/N: E667197
USB-C Hub & Bracket kit – Elo P/N: E350996
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
Wallaby™ Pro countertop stand – Elo P/N: E989127
Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512
Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E990151
Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079
RJ45 to DB9 cable kit - Elo P/N: E641484

Accessories

(16)

Upgrades, add-ons, and more.

Wallaby™ Pro Self-Service Stands

Wallaby™ Self-Service Stands

EMV Cradles

Elo Edge Connect™ Fingerprint Scanner

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

VFD Customer Display

Pole Stands

Shelf Mount

Pole Mount Bracket

Elo Edge Connect™ 2D Barcode Scanner (SE4107 & SE4720)

Elo Edge Connect™ Status Light

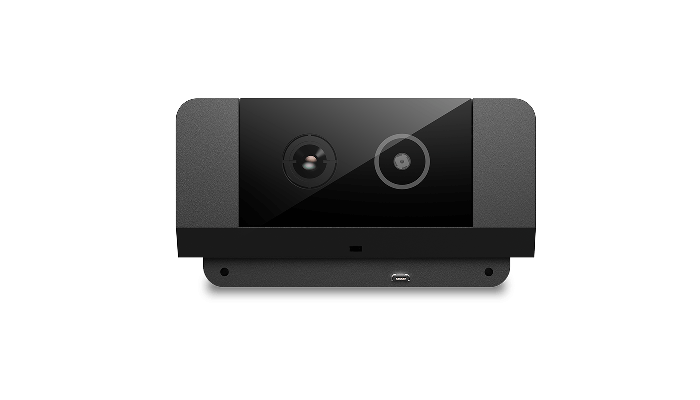

Temperature Sensor Pro (Discontinued November 2023)
