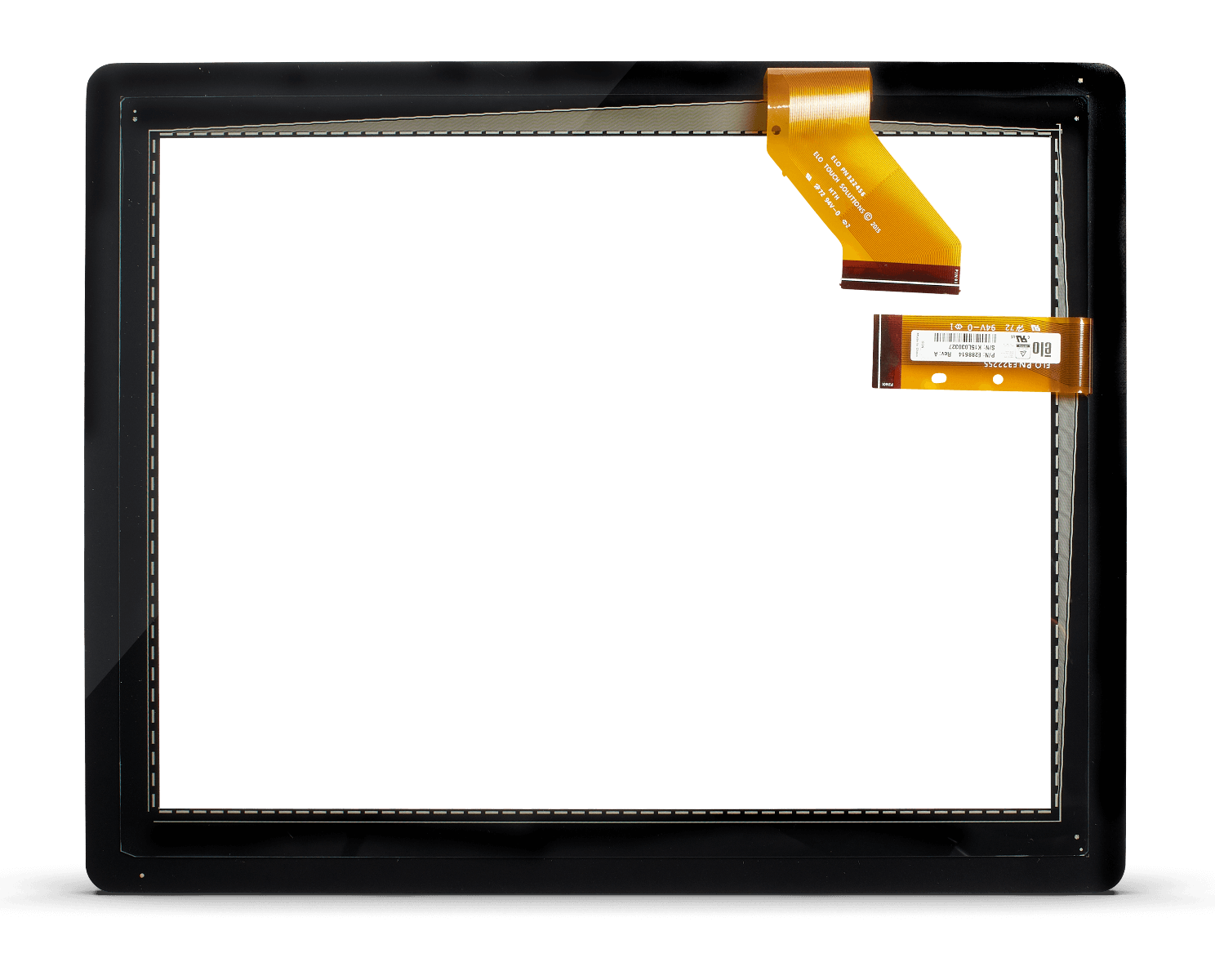

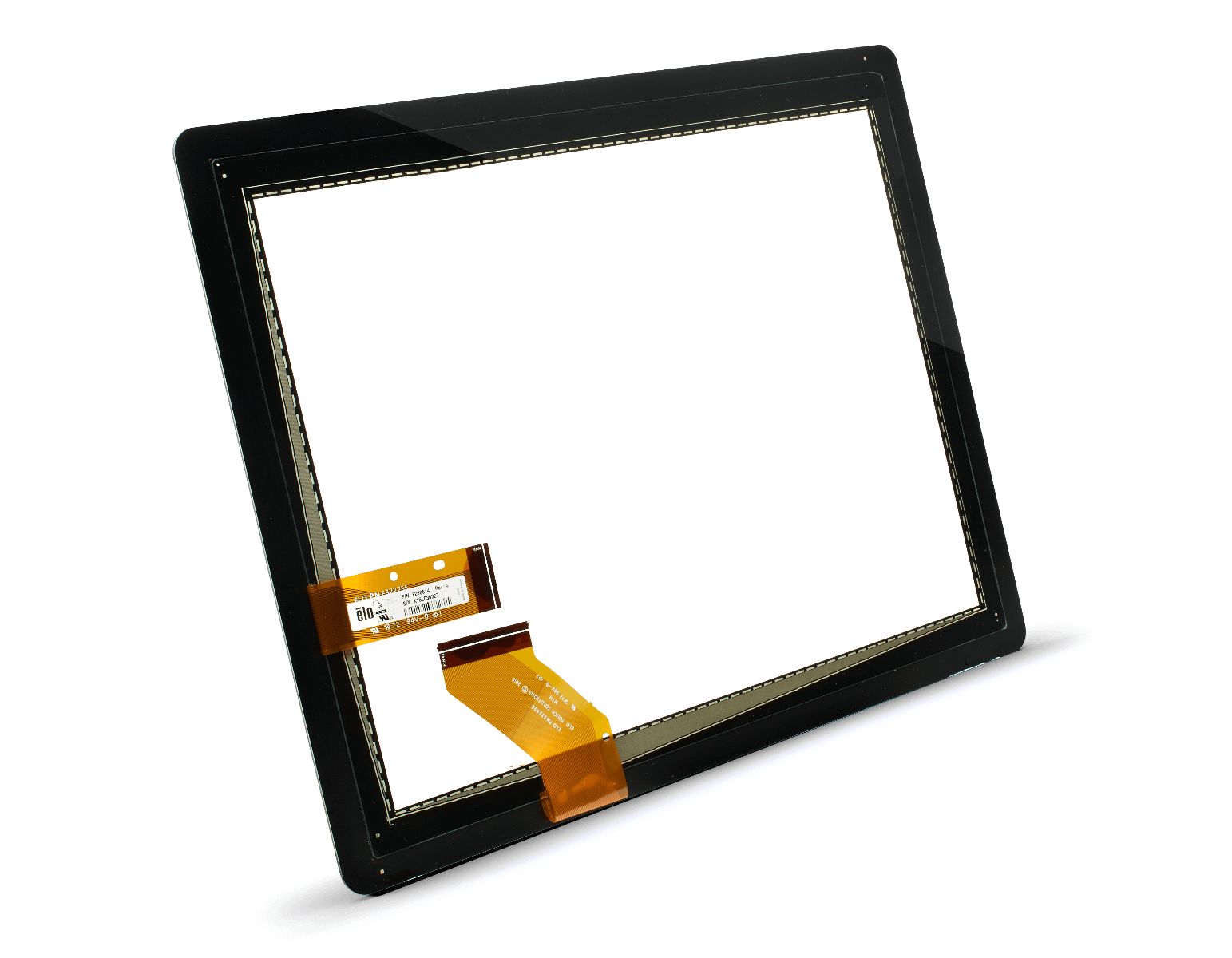

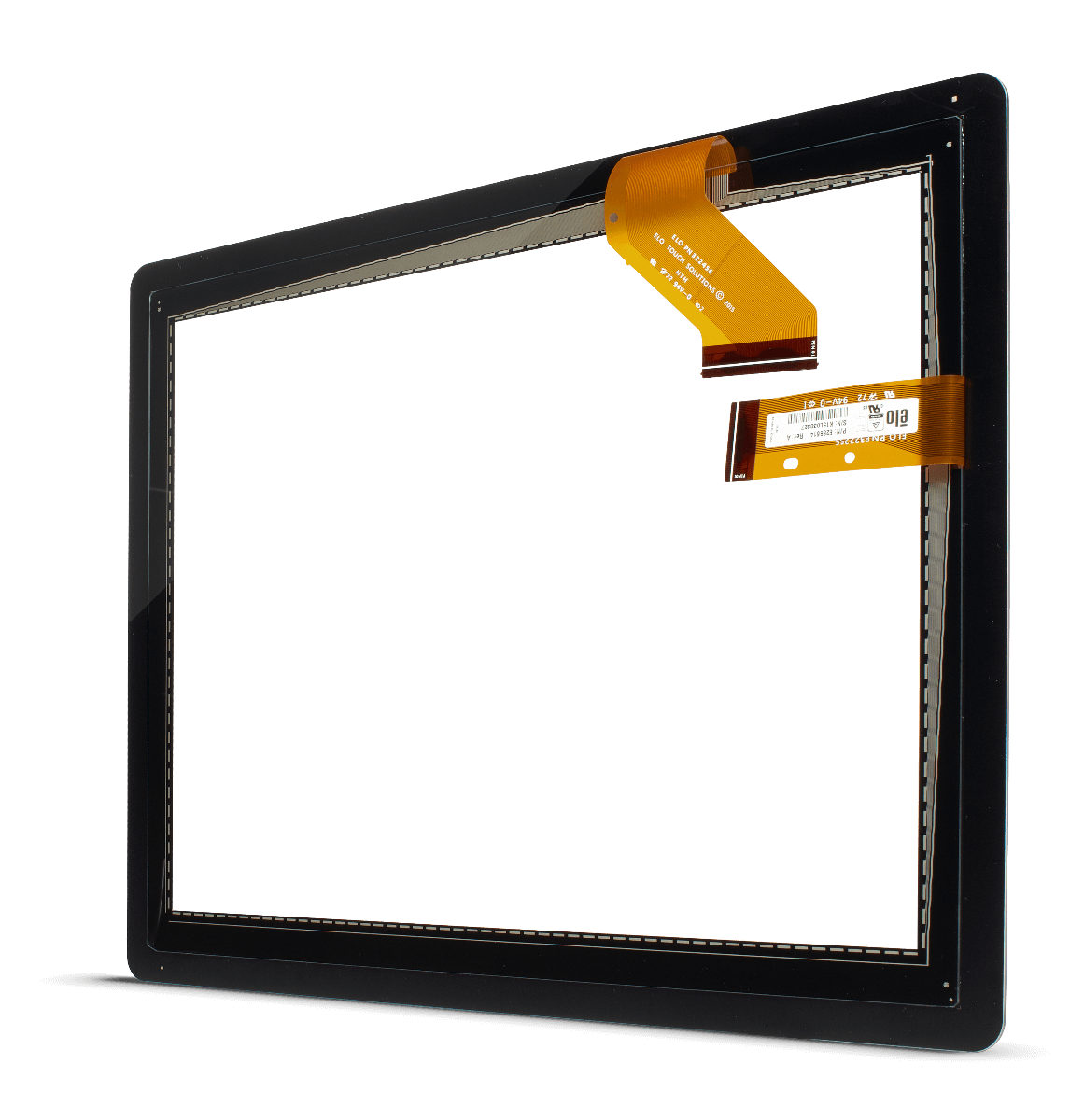

TouchPro® Pro-G (Glass) Projected Capacitive, 7"-22"
Overview
The Elo TouchPro® Pro-G projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Elo's projected capacitive touchscreens are designed for the rigors of commercial applications.
Download our whitepaper — our Next Generation Touch Technology Experience white paper and learn about choosing the right PCAP solution for your next design project.
 |
Two-Glass SolutionElo’s two glass PCAP solution (2GS) offers pristine optical clarity, high touch durability and long term stability over temperature. TouchPro Pro-G is available in standard screen sizes up to 27-inches with up to 16-point multi-touch capabilities and zero-bezel design. |
CustomizableElo offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare. |
 |
 |
Complete SolutionsElo offers a complete projected capacitive touchscreen solution including touch screen, controllers, drivers for various operating systems and software utilities resulting in shorter development and integration time. |
Factory Video
Elo’s new state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.
Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.
Applications
- Interactive digital signage
- Point-Of-Sale (POS) terminals
- Self-service/self-automation
- Gaming and lottery terminal manufacturers
- Medical equipment manufacturers
- Point-of-Information and transportation kiosks
- Industrial automation/Industrial panel PC
TouchPro Product Selection Table
Screen Families
7"- 32"
7"- 22"
≥ 42"
7"- 32
7"- 22"
≥42"
Controller Families
| Screen Size Range |
Form Factor* |
Flextail Configuration |
Interface | Touch Screen Family |
Controller IC Make/ Model |
Fluid Rejection |
Saline/ Salt Water Operation |
10V RMS CS |
Touch Through Glass |
Glove | Stylus | # of touches |
|
| 7200 series CoF |
≤15.6" | CoF | Single | USB | Pro-F | Multiple | Good | - | Yes | Good | Good | Passive | Multi |
| 8200 series Core |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Multiple | Good | Good | Yes | Good | Good | Passive | Multi |
| 9200 series Advanced |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
| 8300 series Large |
≥32" | PCB | Single/Multi | USB | Pro-M/Pro-F | Multiple | Good | - | Yes | Good | Good | Active | Multi |
| 9300 series Advanced |
22"- 32" | PCB | Single/Multi | USB/Serial | Pro-F | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
