1002L 10" Touchscreen Monitor (Rev A - Replaced by new 1002L)
How to buy

This version has been discontinued. Please see the replacement model - 1002L.

Overview

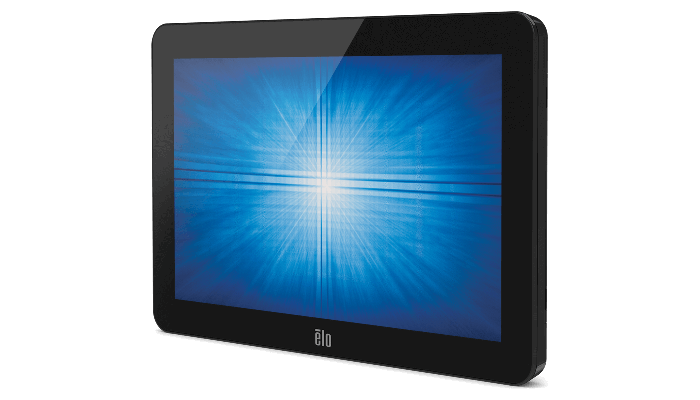

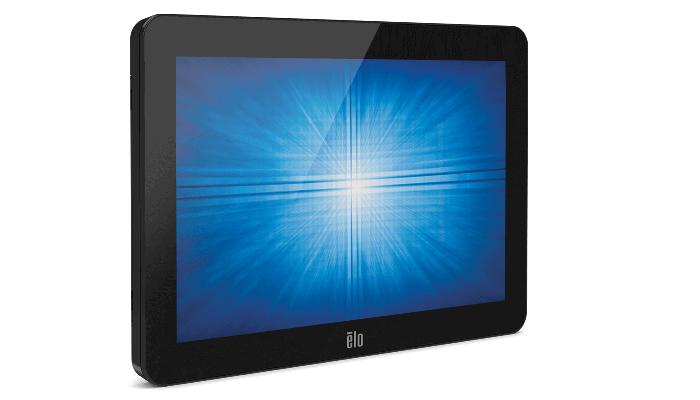

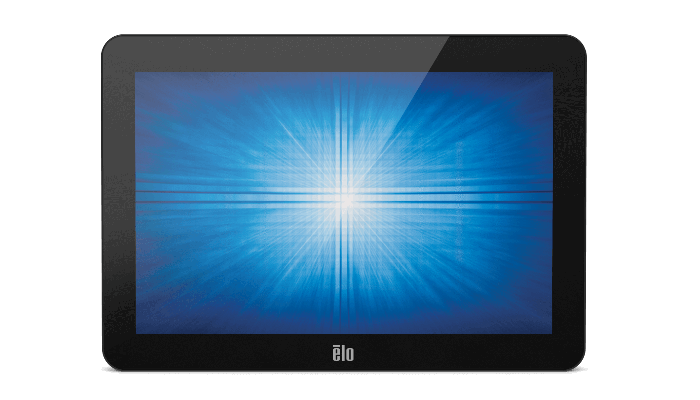

The Elo 1002L 10-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro® PCAP technology. The sleek, low-profile, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 1002L well suited for high traffic environments.

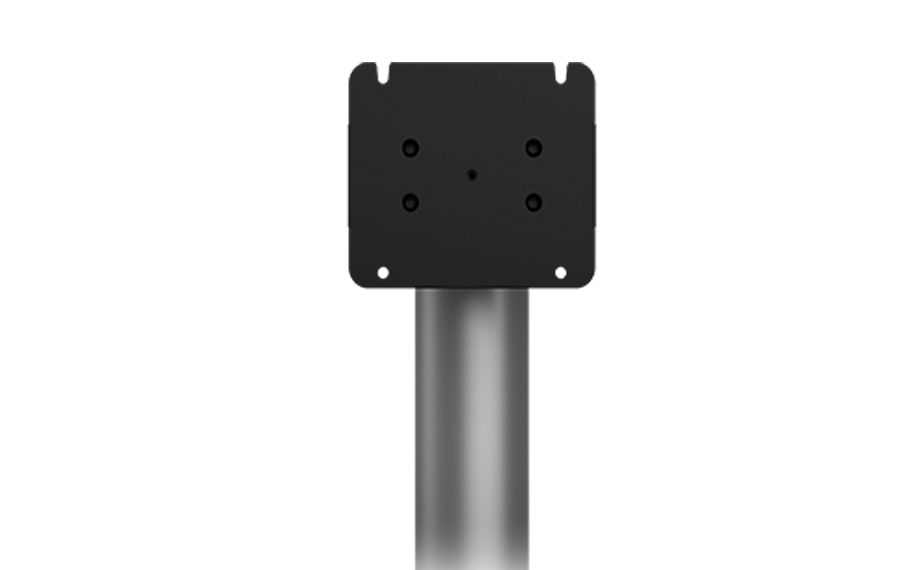

Installation flexibility.

The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.

 Image of item
Image of item

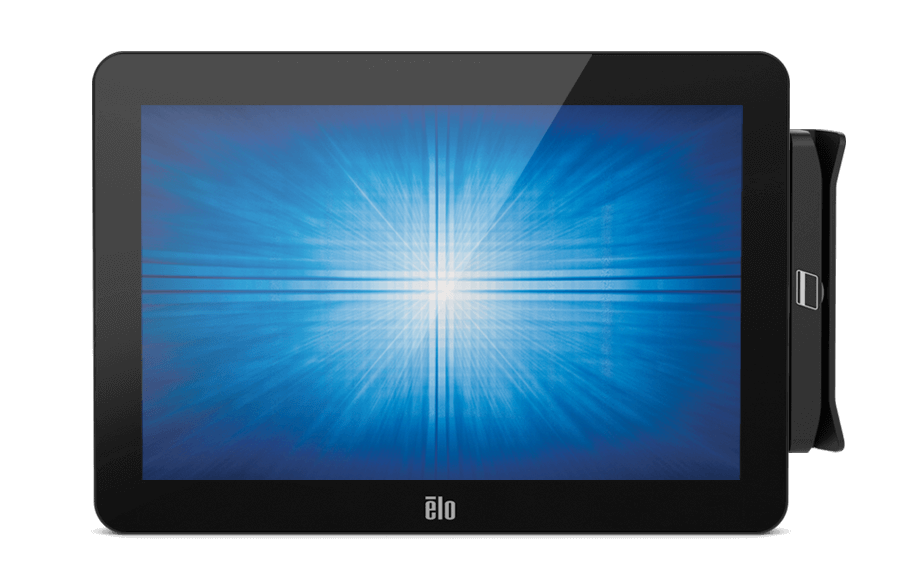

POS ready.

The 1002L offers optional universal retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
Commercial grade.

The 10-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

 Image of item
Other features.
  • Energy savings using LED technology
  • TouchPro and non-touch models available
  • Edge-to-edge glass display with anti-glare for retail interiors
  • Installation flexibility with mounting in portrait, landscape and table-top orientation
  • Typical power consumption: 5.6W; power
  • Power over USB using optional cable
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    PCAP (Worldwide) - E045337
    Non-Touch (Worldwide) - E138394

    Enclosure Color

    Black

    Touch Technology & Capacity

    Non-Touch
    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    10.1'' diagonal, Active matrix TFT LCD (LED)

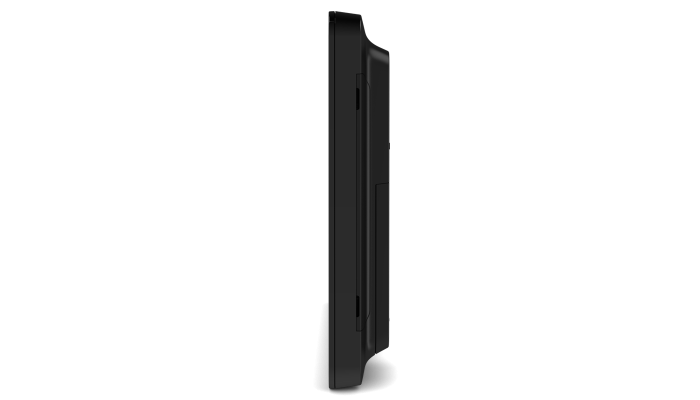

    Monitor Thickness

    1.14" / 29mm panel depth

    Aspect Ratio

    16:10

    Active Area

    8.57" x 5.37" / 218mm x 136.6mm

    Resolution

    1280 x 800

    Other Supported Resolutions

    640 x 480 @ 60Hz
    800 x 600 @ 60Hz
    1024 x 768 @ 60Hz
    1280 x 800 @ 60Hz
    1920 x 1080 @ 60Hz
    1920 x 1200 @ 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Number of Colors

    262,000

    Brightness (typical)

    LCD panel: 350 nits
    PCAP (DC Power): 315 nits
    PCAP (USB Power): 176 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    700:1

    Touch Interface

    USB

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    Speakers

    2 x 2W internal speakers

    Input Video Format

    Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported

    Input Video Frequency

    Horizontal: 31.5 - 60 KHz
    Vertical: 60 Hz

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON: 5.6W
    SLEEP: 0.4W
    OFF: 0.2W
    Max Power Consumption with USB Power: 7W

    Power Supply

    External DC (Power Brick)

    Input Voltage

    12VDC +/- 5%; 100-240VAC, 50/60Hz

    Input Connector

    Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)

    Monitor Dimensions (without Stand)

    10.02" x 6.98" x 1.14" / 254.6mm x 177.3mm x 29mm

    Shipping Box Dimensions

    12.2" x 5.47" x 9.37" / 310mm x 139mm x 238mm

    Weight (Unpackaged)

    1.75 lbs / 0.79 kg

    Weight (Packaged)

    4.5 lbs / 2 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

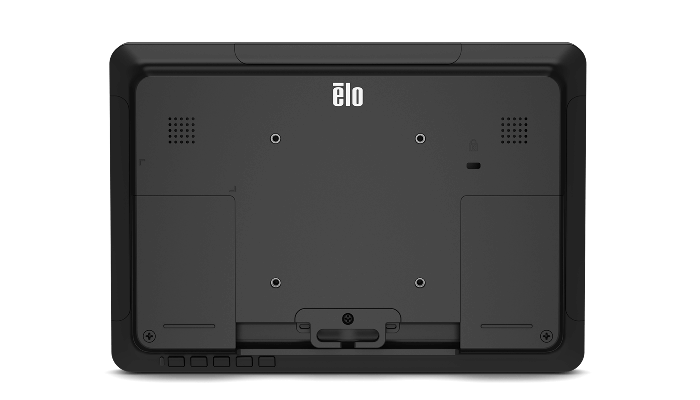

    VESA 4-hole 75mm mounting interface on rear of unit

    Other Features

    Optional wall mount kit available tabletop, shelf- and pole mounts available, see Accessories tab
    2 x 2W internal speakers
    Kensington lock slot

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CE, VCCI, CCC, BSMI

    What's in the Box

    QIG, Japan Class-B TM info, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps

    Optional PCAP Stylus Pen

    E066148

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Barcode Reader (BCR) – Elo P/N: E093433
    Customer Display (2x20 VFD) – Elo P/N: E001003
    2D Barcode Scanner – Elo P/N: E926356
    EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
    EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Elo Backpack® - Elo P/N: E611864
    Elo Backpack® 3.0 - Elo P/N: E901355
    Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789
    3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606
    Power Brick Kit – 1.8m Power Cable - Elo P/N: E211174
    Power Brick Kit – 3m Power Cable - Elo P/N: E210973
    1.8m Power USB Cable - Elo P/N: E457742
    3m Power USB Cable - Elo P/N: E209775
    Wallaby™ POS Stand (Black) - Elo P/N: E949536
    Wallaby™ POS Stand (White) - Elo P/N: E353758
