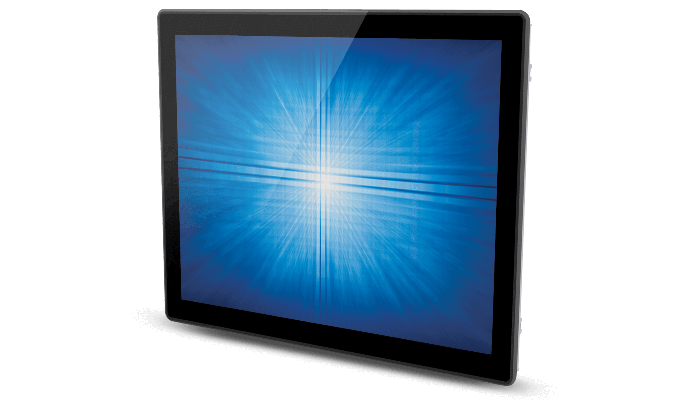

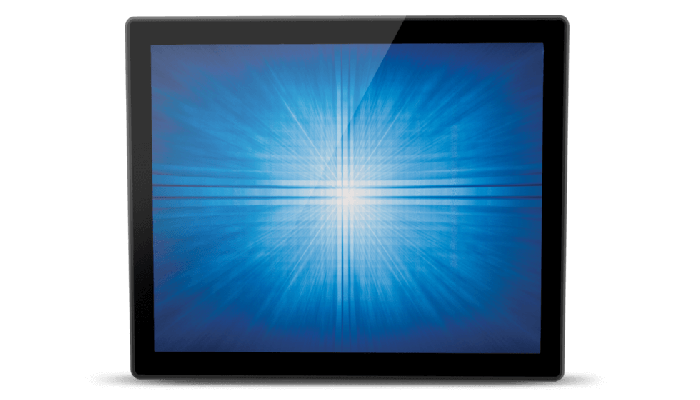

1939L Open Frame Touchscreen (Discontinued)
Overview
Elo’s 1939L 19-inch wide-aspect open frame touchscreens are designed for touch with proven Elo expertise and reliability built in. The compact form factor easily integrates into state-of-the-art cabinet designs and complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. They feature a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The 1939L open frames are available with your choice of touch technologies and multiple mounting options for easy integration.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. |
 |
 |
Touch ready.The 1939L is available with standard bezel, single-touch display options including AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) for the ultimate in optical quality or SecureTouch® anti-vandal SAW with a chemically strengthened glass touch sensor. Dual-touch is also available with IntelliTouch SAW technology, delivering the same optical quality customers count on.
|

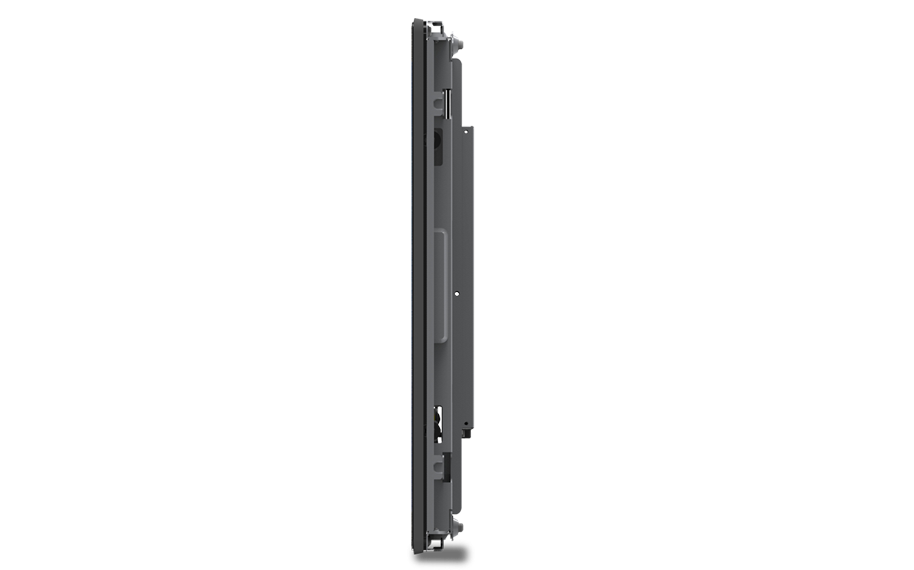

Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
|
 |
Other features.
- High quality energy-saving LED panel with 178°x178° viewing angle
- Integrated precision mini-bezel with water-resistant 0.5 mm seal on bezel versions
- Mounting options include rear-mount and VESA mount; optional front and rack mount
- Three-year warranty on the entire unit including the panel
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E215546
IntelliTouch Dual Touch (Worldwide) - E248997
AccuTouch (Worldwide) - E945445
SecureTouch (Worldwide) - E779866Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
SAW (SecureTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on unit or the OSD Control Remote accessory.
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerAspect Ratio
5:4
Active Area
14.8" x 11.85" / 376.32mm x 301.06mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 60, 70, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
512 x 247 60 Hz (CGA)
512 x 256 60 Hz (CGA)Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch DT: 225 nits
AccuTouch: 200 nits
SecureTouch: 220 nitsResponse Time-total (typical)
14 msec
Contrast Ratio
1000:1
Input Video Format
RGB Analog only / Mini D-Sub 15-Pin VGA type
Power Supply
External DC - power brick (sold separately)
Input Voltage
12VDC +/- 5%
Input Connector
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 56.3 - 75 HzPower Consumption (Typical)
Monitor + AC/DC Adapter
ON: 17 W
SLEEP: 1 W
OFF: 1 WDimensions
16.3" x 2.0" x 13.5" / 415mm x 51mm x 343mm
Shipping Box Dimensions
20.30" x 17.70" x 6.90" / 515mm x 450mm x 175mm
Weight (Unpackaged)
11.5 lbs / 5.2 kg
Weight (Packaged)
16.1 lbs / 7.3 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, IC, CCC, CE, TUV T-Mark, VCCI, KCC, e-Standby, CoC, BSMI, CB, RCM, RoHS, China RoHS, WEEE
Mounting Options
Front mount with optional bezel (see Accessories for details)
Rack mount with optional bracket (see Accessories for details)
75mm or 100mm VESA mount
Rear mount or with included standard mounting brackets
Patent pending bezel seal and patented touch technologyWhat's in the Box
VGA Cable
Touch USB Cable
User Manual CD
Quick Install Guide
ZB Models: Flush Mount Brackets w/Screws
Bezeled Models: “L” (Side Mount) Brackets and w/ScrewsOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit - Elo P/N: E378229
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 17-inch & 19-inch L-Bracket- Elo P/N: E147211
Elo 19-inch - Front-mount Bezel - Elo P/N: E163604 (See Mounting Options Spec for Compatibility)
Elo 19-inch Rack-mount Bracket - Elo P/N: E579652 (See Mounting Options Spec for Compatibility)Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch Dual Touch surface wave touch technology. Part number D82064-000, available at additional cost.
