22-inch I-Series 5 with Android
How to buy

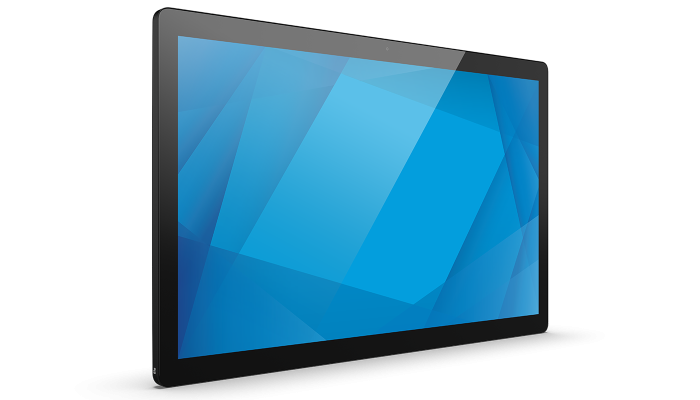

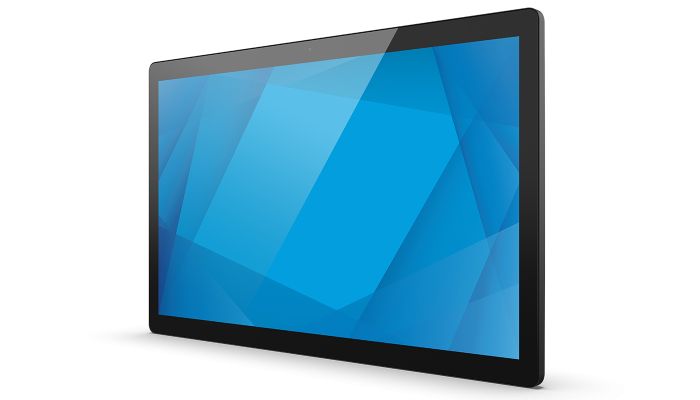

22-inch I-Series 5
Touchcomputer

Elo’s I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 22-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.

Order now

Modular design.
Endless versatility.

Available in sizes ranging from 10 to 22 inches, easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Power-Over-Ethernet (POE)

Say goodbye to the expense of power drops with the POE adapter with the I-Series and a POE-capable network.

Camera & Microphone

The I-Series includes a 8MP camera and 2x digital microphones to support select application requirements.

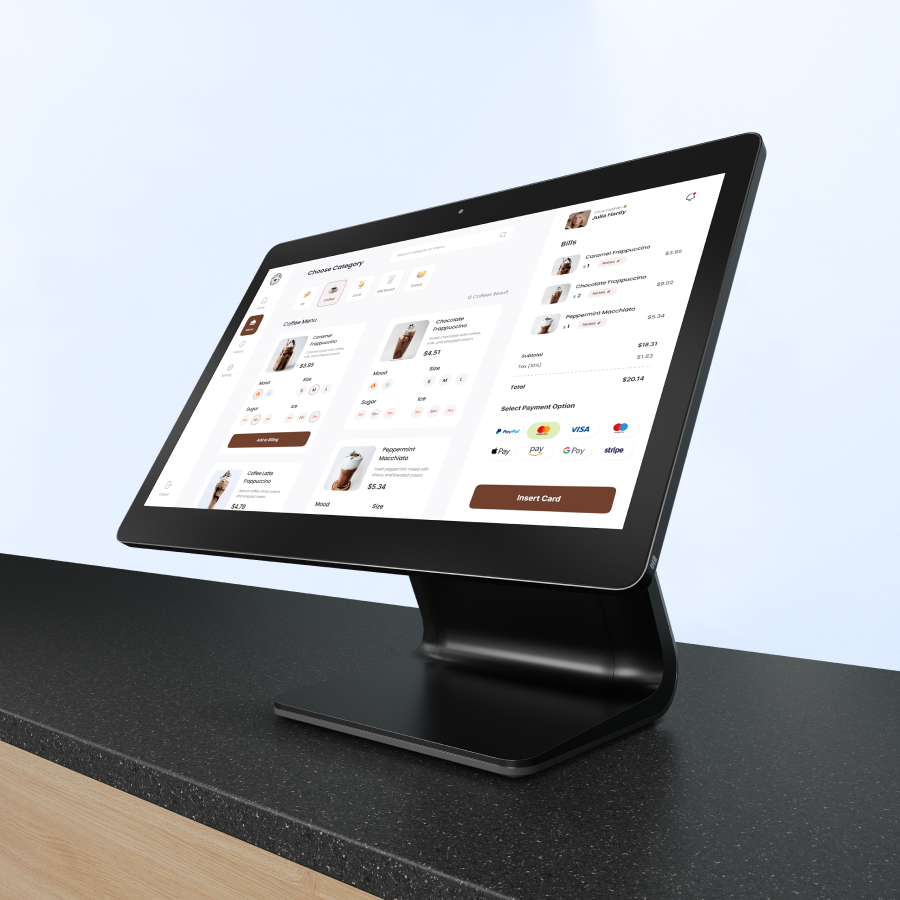

Place it at the
point-of-sale.

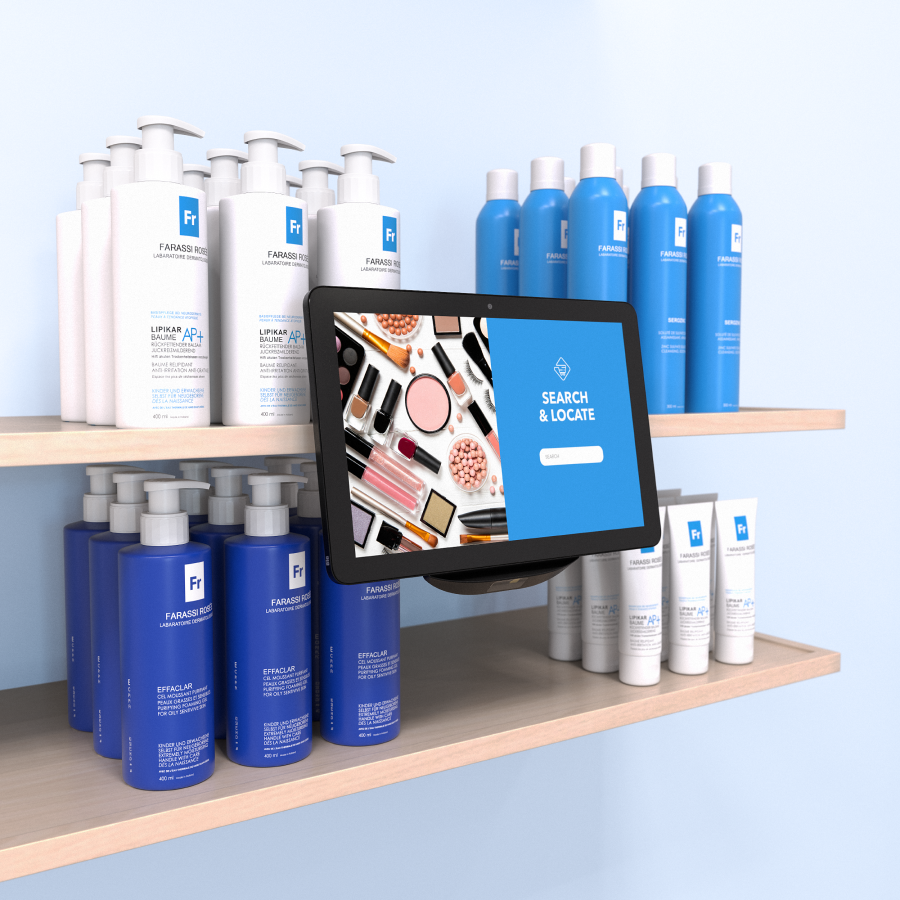

Create engaging
interactive signage.

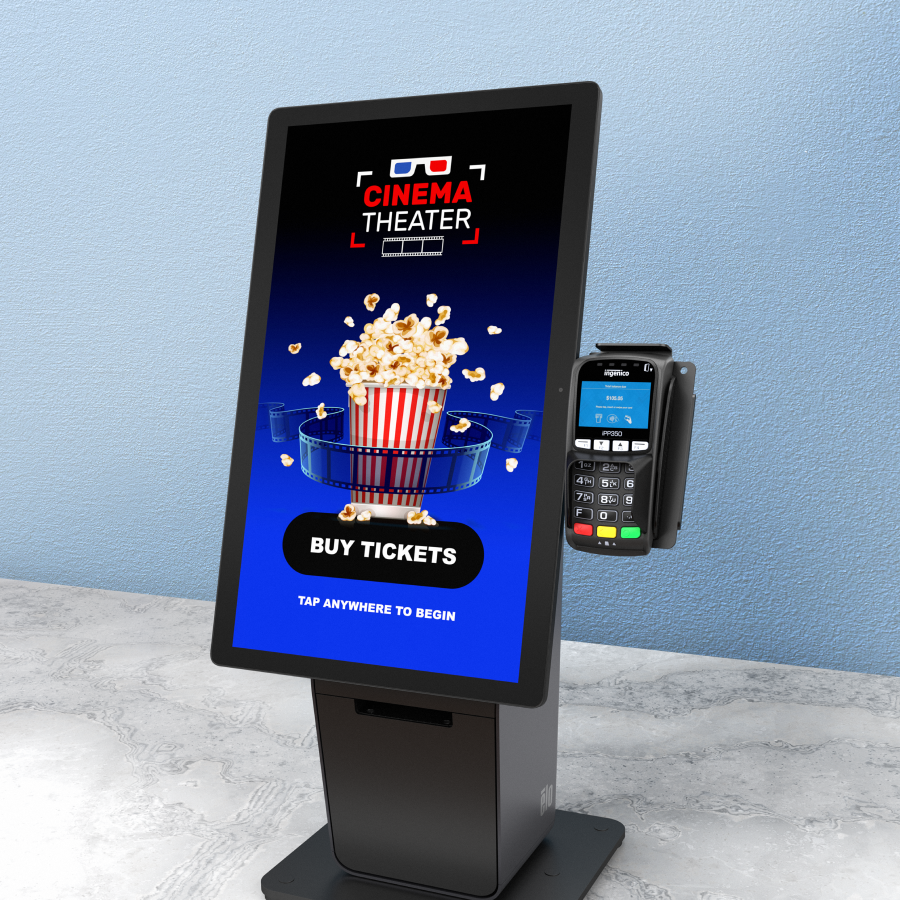

Drive endless self-
service experiences.

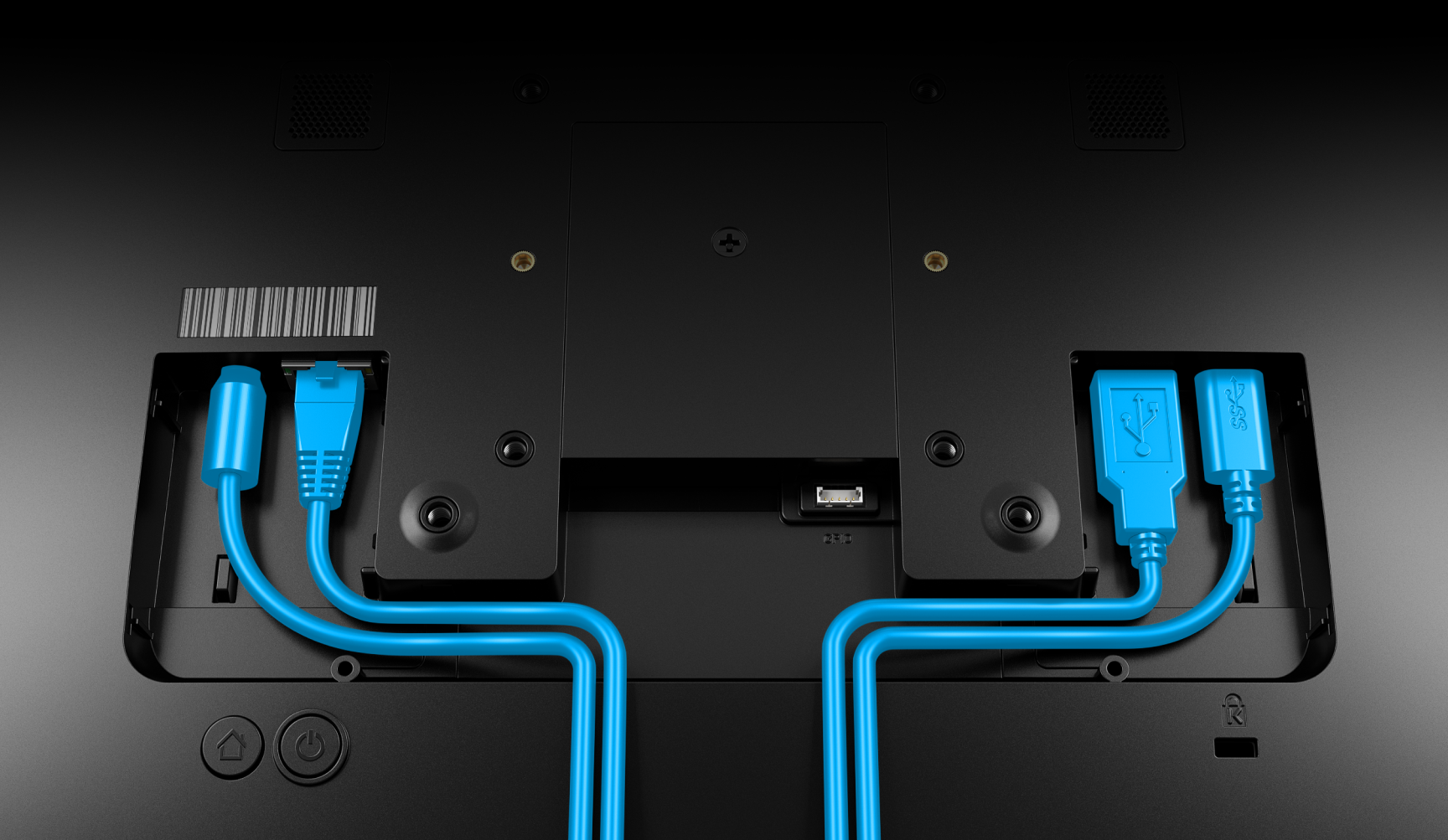

Enhanced connectivity
for all your accessories.

  • USB-C full featured
  • 1x LAN (Gigabit)
  • GPIO
  • USB 3.0
  • 4x Micro-USB Edge Connect
  • WiFi 6E & Bluetooth 5.2

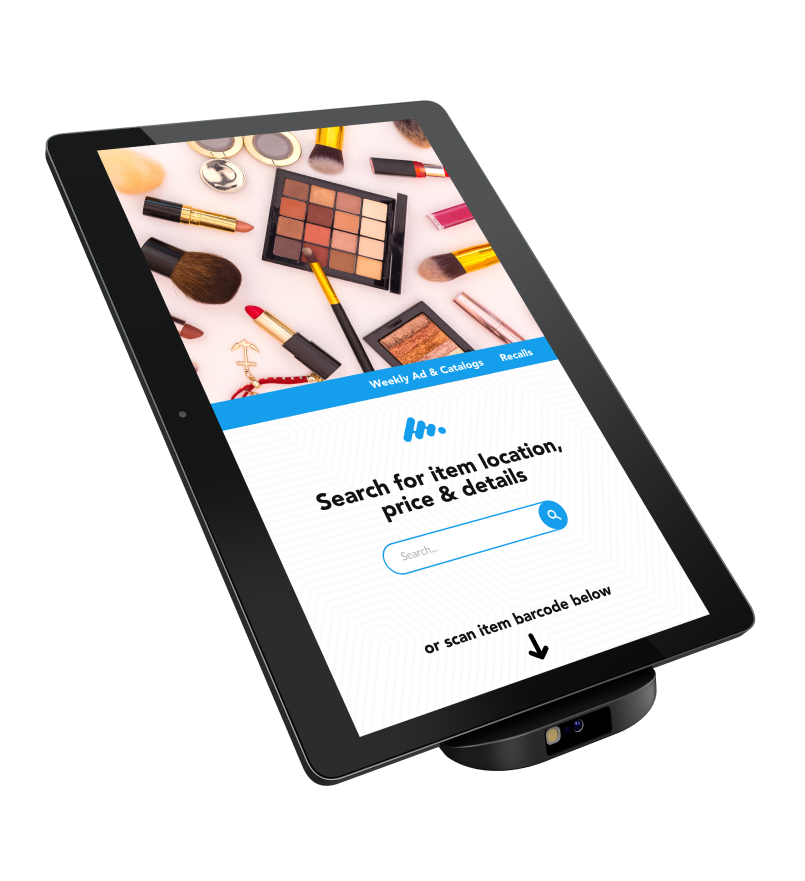

Get enterprise support
with Elo EssentialEdge.™

With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

OS 360 – Take advantage of monthly security updates to keep your devices secure.

Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Explore Elo EssentialEdge

Commercial-grade
performance.

The I-Series is backed by the powerful Qualcomm 6490 octa-core processor to deliver the performance businesses need.

Photo of Powerful Qualcomm 6490 octa-core processor

Expand possibilities
with Applied AI.

The Qualcomm 6490 chipset offers a fused AI accelerator, enabling astonishing performance at low power. These features and more produce a combined AI performance of up to 12 TOPS.

Manage your devices
easily with EloView.®

EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

  • Remotely deploy content and manage your devices securely.
  • Provision your devices in seconds with a seamless out-of-the-box experience.
  • Leverage Elo Home to create a customized interface on your Elo device.
Explore EloView

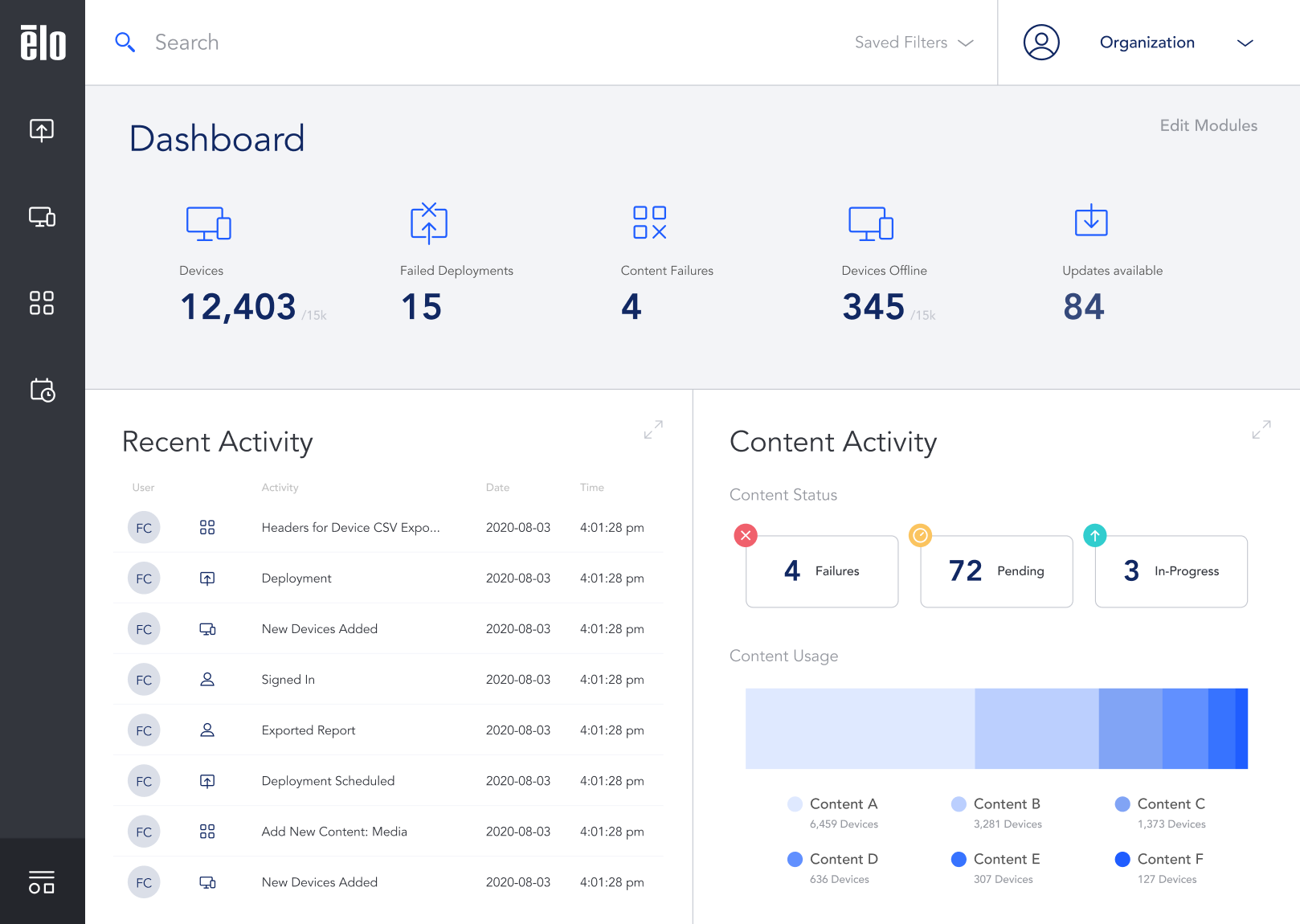

Image of the EloView device management interface

Google Mobile
Services Ready.

With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features. Not only does this make management easier, but it also ensures your Elo devices meet the high standards required for Google CTS verification, giving you peace of mind.

Get peace of mind
with EloCare.

From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.

  • Advance Unit Replacement
  • Accidental Damage Protection
  • Extended Warranty
  • OS 360
Learn more

Quality that
is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Learn more

Specifications

  • Technical

    Part Number(s)

    Black - E541463
    White - E541651

    Enclosure Color

    White or Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Touch Thru

    Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches

    Processor

    Qualcomm Snapdragon QCS6490

    Memory (RAM)

    8GB

    Storage

    64GB

    OS

    Android 14 with Google Play Services (AOSP capable)
    Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    18.74" x 10.54" / 476 mm x 268 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    8-bit (16.7 million)

    Brightness (typical)

    LCD Panel: 250 nits
    TouchPro PCAP: 215 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Peripheral Mounting

    4x micro-USB 2.0 Elo Edge Connect ports

    Support for 1.2A on one port and 500mA for the remaining three ports

    I/O Ports

    1x USB 3.0 support (900mA)
    Type C USB output*
    Micro SD slot
    GPIO
    Ethernet 1x LAN (Gigabit)
    DC in

    *When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details

    Webcam

    8MP, Max Resolution: 3200x2400 30fps, Auto Focus

    Wireless

    802.11a/b/g/n/ac/ax + Bluetooth 5.2

    Audio Ports

    2x built-in Digital Microphones

    Speakers

    2x 1.5W

    Power Supply

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    On: 15.2W
    Off: 0.2W
    Sleep: 2.9W

    Power Over Ethernet (PoE)

    Supported via Elo PoE Device PN: E669163
    Reference the I-Series 5 user guide for details.

    Dimensions

    20.7" x 12.8" x 1.2" / 524.8 mm x 324.8 mm x 29.7 mm

    Shipping Box Dimensions

    23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm

    Weight (Unpackaged)

    7.38 lbs / 3.35 kg

    Weight (Packaged)

    13.2 lbs / 6.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Regulatory approvals and declarations

    UL/cUL (US)
    FCC (US)
    IC (Canada)
    CE (Europe)
    CB (International)
    VCCI, MIC (Japan)
    RCM (Australia)

    Supported Countries

    Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 75mm and 100mm

    Warranty

    2-year

    Extended Service Options

    3 year OS 360 - Elo P/N: E897877
    4 year OS 360 - Elo P/N: E898079
    5 year OS 360 - Elo P/N: E898282
    3 year Warranty Coverage – Elo P/N: E819394
    4 year Warranty Coverage – Elo P/N: E819598
    5 year Warranty Coverage – Elo P/N: E819795
    3 year Warranty Coverage + ADP – Elo P/N: E130329
    4 year Warranty Coverage + ADP – Elo P/N: E130530
    5 year Warranty Coverage + ADP – Elo P/N: E130719
    2 year Warranty Coverage + AUR – Elo P/N: E819985
    3 year Warranty Coverage + AUR – Elo P/N: E820186
    4 year Warranty Coverage + AUR – Elo P/N: E820388
    5 year Warranty Coverage + AUR – Elo P/N: E820582
    2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
    3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
    4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
    5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

    OS Support

    Bi-monthly Android security updates available with Elo OS 360 package.

    Sealability

    Touchscreen sealed to LCD

    What's in the Box

    I-Series 5
    North American Power Cable
    European Power Cable
    1x Power Brick
    Quick Install Guide
    Screws for cable cover door (located in the power/Ethernet bay)

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    POE Module Kit - Elo P/N: E669163
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    Webcam - Elo P/N: E201494
    Expansion Module – Elo P/N: E809509
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Pay 7" - Elo P/N: E863808

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
    Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844
    Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
    Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
    65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
    90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
    Wallaby™ Pro countertop stand – Elo P/N: E989127
    Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512
    Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705
    Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079
