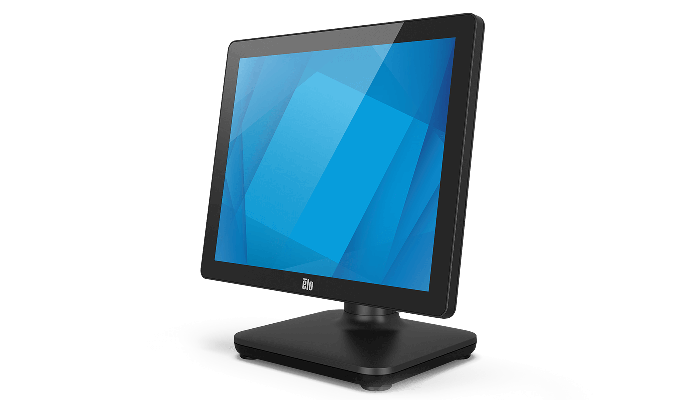

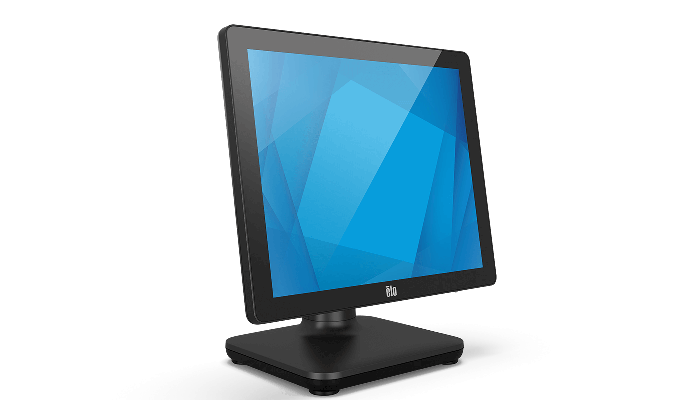

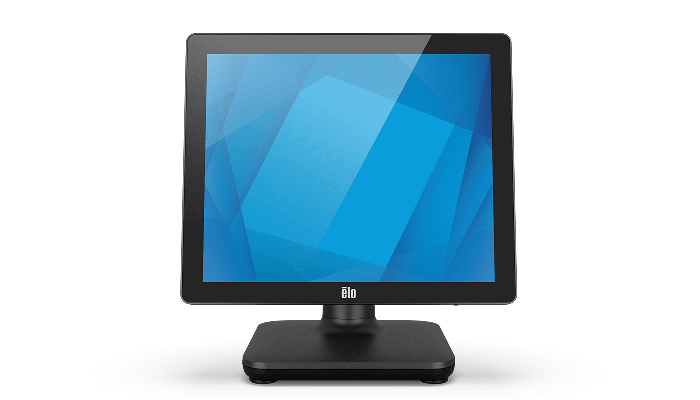

17-inch (5:4) EloPOS™ System
How to buy
EloPOS all in one POS system

EloPOS™ System
Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 9th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

Watch the EloPOS System Overview Video

Interactive Points of Sale

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

  • Retail

    Retail

  • Hospitality

    Hospitality

  • Entertainment

    Entertainment

  • Restaurant

    Restaurant

  • Grocery

    Grocery

Powerful Performance

  • 1

    Choose
    Celeron, i3 or i5

  • 2

    Up to 1.4x faster
    than competitors*

  • 3

    Expandable up to
    32GB RAM

*Based on Passmark scores comparing 9th generation i3 and i5 vs the competitors current 6th and 7th generation processors

Elo I/O Hub for POS touch screen cash register system

Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.

Elo POS system for retail with a customer-facing display

Add a Customer-Facing
Display with Ease

The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo All in one touchscreen pos terminal with Elo Edge Connect Technology

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

  • Fingerprint Reader

    Fingerprint
    Reader

  • EMV

    EMV

  • Barcode Scanner

    Barcode
    Scanner

  • MSR

    MSR

Learn More

Windows or Linux. You Choose.

EloPOS utilizes the reliability-tested performance and security of Intel 9th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.

Windows

or

Linux
Elo offers 3-year warranty on Windows POS Systems

Retail-Hardened

Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.

Specifications

  • Technical

    Part Number(s)

    Celeron, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E548910
    Celeron, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E549099
    Celeron, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E549304
    Celeron, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E549508
    Celeron, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E549709
    Celeron, Win 10, 8GB RAM, 256GB SSD with Wall Mount I/O Hub - E549896
    i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E402576
    i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E402382
    i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E484495
    i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E484291
    i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E491458
    i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E402963
    i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E402781
    i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E484700
    i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E484896

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Celeron: Intel® Celeron® Processor G4900T (2M Cache, up to 2.9 GHz)
    i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
    i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

    Chipset

    Celeron Models: Intel H310 Express
    i3 Models: Intel H310 Express
    i5 Models: Intel Q370 Express

    Graphics

    Celeron Models: Intel UHD Graphics 610
    i3 & i5 Models: Intel UHD Graphics 630

    BIOS

    AMI

    Memory (RAM)

    Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
    i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
    i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

    NOTE: Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    128GB M.2 SATA SSD, 80 TBW
    Optional M.2 PCIe (NVMe) SSD for select models

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    TPM

    2.0

    Active Management Technology (AMT)

    Celeron Models: N/A
    i3 Models: N/A
    i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.64" / 337.9 mm x 270.3 mm

    Resolution

    1280 x 1024 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 250 nits
    PCAP: 212.5 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    USB Ports

    3 x USB 3.0 (1 on display head, 2 on I/O)
    2 x USB 2.0 (on I/O)
    4 x Micro USB 2.0 (on display head)

    Powered USB

    1 x 24V on I/O
    2 x 12V on I/O

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Serial Ports

    2 x RJ45

    Cash Drawer Port

    12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal swtich)

    Wireless

    Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

    Bluetooth

    Bluetooth 5.0

    Additional Video Out

    1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

    Audio Ports

    1 x 3.5 mm headset jack

    Speakers

    2 x 2W internal speakers

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit
    Optional - Windows 10 Professional English 64-bit

    Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 24VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 180W

    Power Consumption (Typical)

    ON: Celeron: 42W, i3: 63W, i5: 76W
    SLEEP: < 5W
    OFF: BIOS EUP disabled (default) < 4W, BIOS EUP enabled < 0.5W

    Dimensions

    With Stand: 15.49" x 12.83" x 8.71" / 393.5 mm x 325.9 mm x 221.3 mm
    Without Stand: 15.49" x 12.83" x 3.28" / 393.5 mm x 325.9 mm x 83.3 mm

    Shipping Box Dimensions

    With Stand: 18.74" x 11.14" x 18.82" / 476 mm x 283 mm x 478 mm
    Without Stand: 18.74" x 7.76" x 15.75" / 476 mm x 197 mm x 400 mm

    Weight (Unpackaged)

    With Stand: 14.77 lbs / 6.7 kg
    Without Stand: 10.58 lbs / 4.8 kg

    Weight (Packaged)

    With Stand: 19.8 lbs / 9.0 kg
    Without Stand: 15 lbs / 6.8 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95% (38.7℃ max wet bulb temperature)

    Energy Star

    Energy Star 7.1

    Regulatory approvals and declarations

    UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC

    Real-Time Clock

    CR2032 lithium metal battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75mm VESA mount

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    Sealability

    Touchscreen sealed to sub-bezel
    Touchscreen sealed to LCD

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components.
    Models with a stand for desktop application.
    Models without a stand for 75mm VESA mounting.
    Kensington lock.

    What's in the Box

    EloPOS System
    North America Power Cord
    EU Power Cord
    Power Adapter – 180W
    Cable RJ-45 to DB-9
    Cable cover locking screw
    Quick Installation Guide (QIG)

    Upgrade Options

    4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186
    8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375
    16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989
    M.2 SATA 128GB SSD – Elo P/N: E206352
    M.2 SATA 256GB SSD – Elo P/N: E206556

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    10" LCD Customer-facing Display (10 touch) – Elo P/N: E155834 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    10" LCD Customer-facing Display (no touch) – Elo P/N: E324341 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    6ft Elo authorized USB-C cable – Elo P/N: E710364
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Rear-facing Display Mount - Elo P/N: E835969 (Requires authorized 2ft USB-C cable)
    Power Brick Kit, 24V 180W - Elo P/N: E845269
    Elo 2ft authorized USB-C cable - Elo P/N: E969524
    RJ45 to DB9 cable kit - Elo P/N: E641484
